(4-024) - CAB CONTROL PANEL AND WIRING

Запчасти Case 1150G (4-024) - CAB CONTROL PANEL AND WIRING (06) - ELECTRICAL SYSTEMS

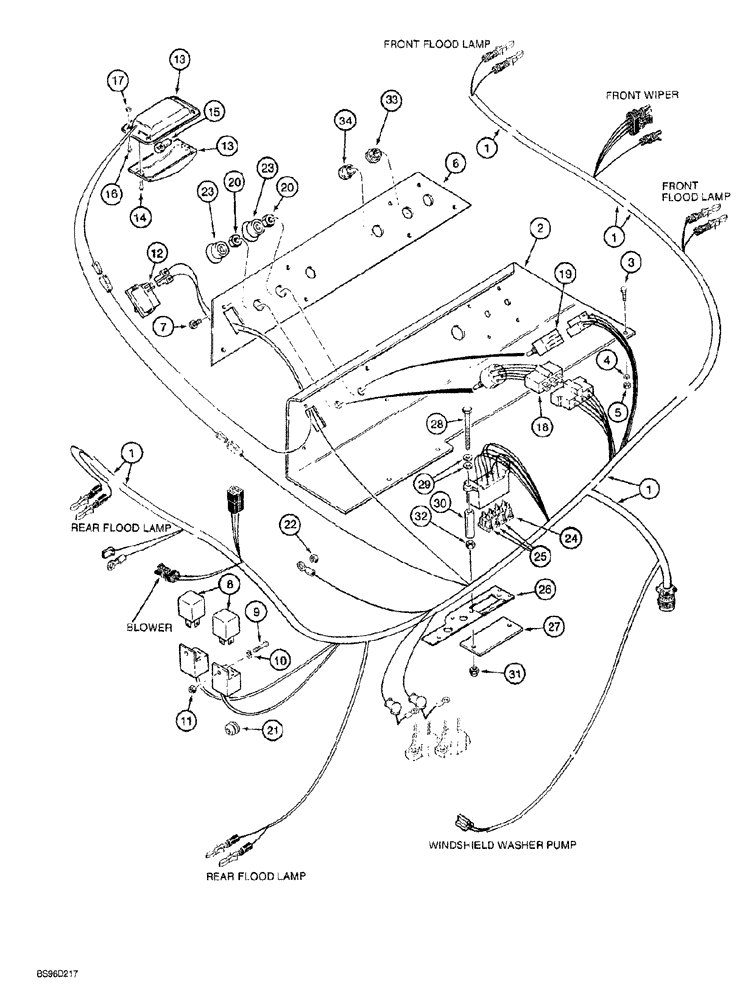

Схема запчастей Case 1150G - (4-024) - CAB CONTROL PANEL AND WIRING (06) - ELECTRICAL SYSTEMS
2
3
5
24
29
32
17
20
27
16
12
21
28
15
23
25
31
19
11
7
14
13
26
18
34
1
30
1
1
8
10
4
6
22
23
1
20
33
9
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1546445C1

HARNESS

main wiring cab, relays, blower motors, lamps; connectors are shipped loose to allow bare harness end to be fed through grommets in sheet metal before assembly

1шт.

See Figure 4-026 for additional harness used on models with air conditioning. For flood lamps, see Figures 4-020 and 4-022, windshield wipers, Figures 4-028 and 4-030, and for the cab blower, Figure 4-038.

1шт.

2

1999653C1

PANEL

control

1шт.

3

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

4

492-11025

LOCK WASHER,1/4"

2шт.

5

425-104

NUT,1/4"-20, Cl 5

2шт.

6

198996A1

BEZEL

PLATE decal mounting, control panel, see Figure 9-074 for decal

1шт.

7

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

8шт.

8

198161A1

RELAY

mini, 24 volt, electrical accessories

2шт.

9

470-10812

SCREW,Pan HD, #8 - 32 x 3/4"

machine, pan head slotted, No. 8 NC x 3/4 inch

2шт.

10

492-11008

LOCK WASHER,#8

2шт.

11

225-14108

NUT,#8-32

2шт.

12

F45393

SWITCH

rocker, dome lamp

1шт.

13

R54198

COURTESY LIGHT

DOME LIGHT LAMP ASSY., Includes: Ref. 14

1шт.

14

173-297

SCREW,Phil Rnd Hd, #8 - 32 x 1/4"

machine, round head slotted, No. 8 NC x 1/4 inch

2шт.

15

D71459

LAMP

BULB, No. 1591, 24 volt, dome service replacement

1шт.

16

473-10810

SCREW,Slotted Flat Hd, #8-32 x 5/8"

machine, flat head slotted, No. 8 NC x 5/8 inch

4шт.

17

225-14108

NUT,#8-32

4шт.

18

92115C2

SWITCH

wiper

1шт.

19

A42622

SWITCH

blower

1шт.

20

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

retaining, 7/16 inch NC

2шт.

21

1546464C1

GROMMET

13/64 diameter, for 1/2 inch hole

1шт.

22

232-1446

NUT,3/8"-16, GC

Harness to ground stud

1шт.

23

111282C1

KNOB

KNOB control, blower and wiper

2шт.

24

A149801

FUSE,Lt Blue, 15 Amp

light blue, 15 ampere

1шт.

25

A149800

FUSE,10 Amp

red, 10 ampere

3шт.

26

1999698C1

CLAMP

headliner, see Figure 9-060 for hole plugs and headliner

1шт.

27

1999420C1

COVER

fuse block

1шт.

28

1999829C1

SCREW

BOLT hex, special, No. 10 NC x 2-3/4 inch

2шт.

29

495-31022

WASHER,#10

4шт.

30

1999515C1

SPACER

fuse block

2шт.

31

129-642

CROWN NUT,Crown, #10-24

dome, No. 10 NC

2шт.

32

230-42409

NUT,#10-24, GA

hex, self-locking, No. 10 NC

2шт.

33

1999574C1

PLUG

nylon, 1/2 inch diameter, if used

1шт.

34

353-407

PLUG,Dome, .687" hole, Nylon

button, 11/16 inch, if used

1шт.
