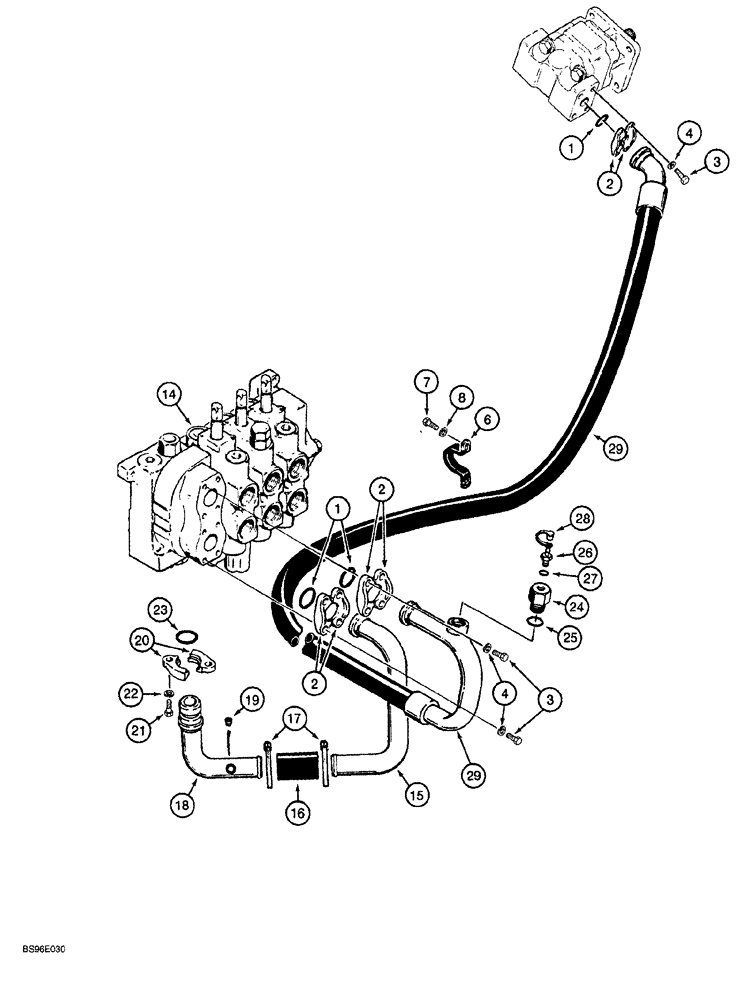

Запчасти Case 1150G (8-008) - EQUIP HYD CIRCUIT, PUMP TO CONTROL VALVE & RESERVOIR, PRIOR TO JJG0218023 & JJG0218024 - JJG0218478 (07) - HYDRAULIC SYSTEM

1

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

Flange

3шт.

2

A12301

CLAMP,Half

CLAMP split flange

6шт.

3

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

hex, 7/16 NC x 1-1/2 inch

12шт.

4

492-11044

LOCK WASHER,7/16"

12шт.

6

R54274

MOUNTING CLIP

CLAMP hose

1шт.

7

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

8

492-11038

LOCK WASHER,3/8"

2шт.

14

REF

INSTRUCTION

VALVE ASSY., control, see Figure 8-044 or 8-046

1шт.

15

R40140

TUBE,1.5" OD

control valve outlet

1шт.

16

R43918

HOSE

114 mm (4-1/2 inch) long, cut from R45924 bulk hose, see below

1шт.

17

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

2шт.

18

R51429

PIPE,38.1 mm OD x 114, 95 mm L

TUBE, return to hydraulic reservoir

1шт.

19

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1шт.

20

R27612

CLAMP

split flange

2шт.

21

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

23

238-5325

O-RING,0.21" Thk x 1.475" ID, -325, Cl 5, 75 Duro

Gland

1шт.

24

218-5316

ADAPTER

straight, 3/4 PT x 1/4 inch female O-ring boss, Includes: Ref. 25

1шт.

25

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

26

R55912

NIPPLE

quick disconnect, Includes: Ref. 27

1шт.

27

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

28

H434163

DUST CAP

1шт.

29

R57153

HOSE

to control valve, for split flange

1шт.

R45924

HOSE

38 (1-1/2) ID x 241 mm (9-1/2 inch) long

1шт.
