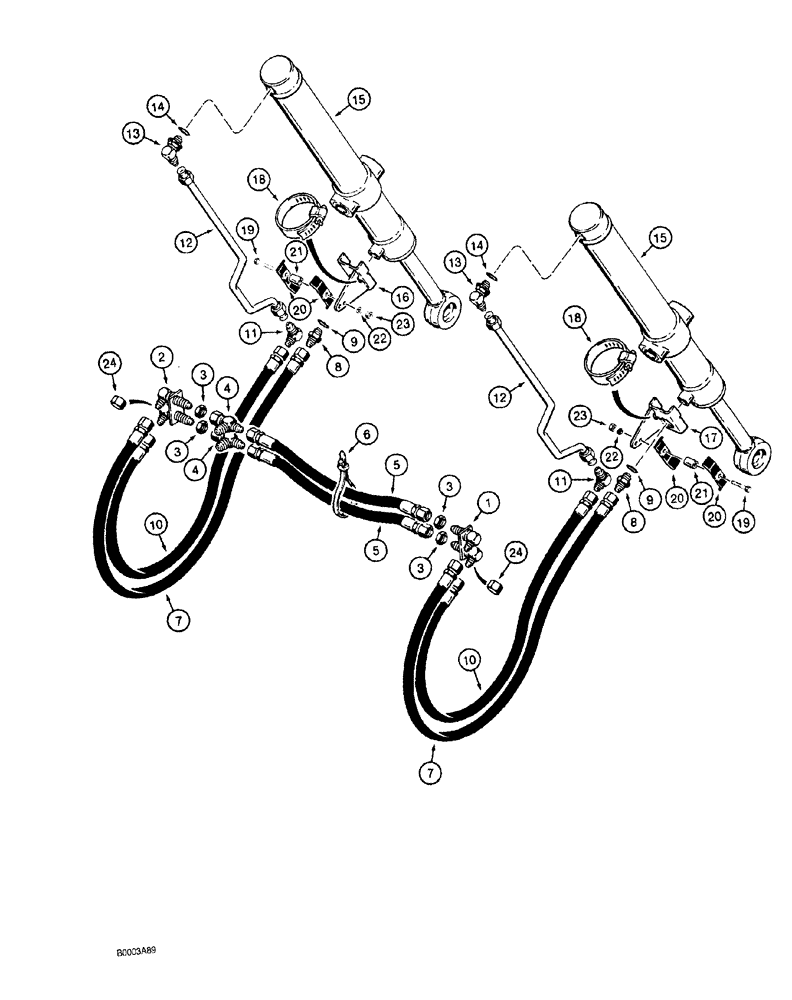

Запчасти Case 1150G (8-014) - LIFT HYDRAULIC CIRCUIT, HOSES AND CYLINDERS (07) - HYDRAULIC SYSTEM

1

R30962

MANIFOLD

right-hand

1шт.

2

R30963

MANIFOLD

left-hand

1шт.

3

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

4шт.

4

218-5483

TEE,1-1/16" - 12 JIC x 1-5/16" - 12 JIC x 1-1/16" - 12 JIC

TEE, 1-5/16-12 flare branch x 1-1/16-12 inch flare x swivel, to crossover hose at radiator shroud

2шт.

5

R25834

HOSE

635 mm (25 inch) long, crossover

2шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, at radiator shroud

1шт.

7

R55904

HOSE

889 mm (35 inch) long, to rod end of lift cylinder

2шт.

8

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter, Straight, O-Ring boss, Male, Incl. Ref. 9

2шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

L54137

HOSE ASSY.

635 mm (25 inch) long, to closed end of lift cylinder

2шт.

11

218-476

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC

90°, 1-1/16-12 inch flare x flare

2шт.

12

R54914

PIPE,19.05 mm OD x 73.7, 793 mm L

TUBE, to closed end of cylinder

2шт.

13

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 14

2шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

15

G109819

CYLINDER ASSY.,Double Acting, 44.45mm Rod, 817.63mm Stroke

83 (3-1/4) ID x 818 mm (32-3/16 inch) stroke, see Figure 8-026

2шт.

16

R54841

GUARD ASSY.

fittings, left-hand cylinder

1шт.

17

R55270

GUARD ASSY.

fittings, right-hand cylinder

1шт.

18

214-3172

HOSE CLAMP,3-3/4" - 4-5/8", HD Worm

To cylinder

2шт.

19

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

20

R55275

FIXING BRACKET

CLAMP hose

4шт.

21

D40925

SPACER

SPACER clamp

2шт.

22

492-11038

LOCK WASHER,3/8"

2шт.

23

425-106

NUT,3/8"-16, Cl 5

2шт.

24

218-335

CAP,37 Degree, 1 1/16"-12

Hex, if used

4шт.
