(8-044) - THREE-SPOOL VALVE, PRIOR TO JJG0218023 AND JJG0218024 - JJG0218478

Запчасти Case 1150G (8-044) - THREE-SPOOL VALVE, PRIOR TO JJG0218023 AND JJG0218024 - JJG0218478 (07) - HYDRAULIC SYSTEM

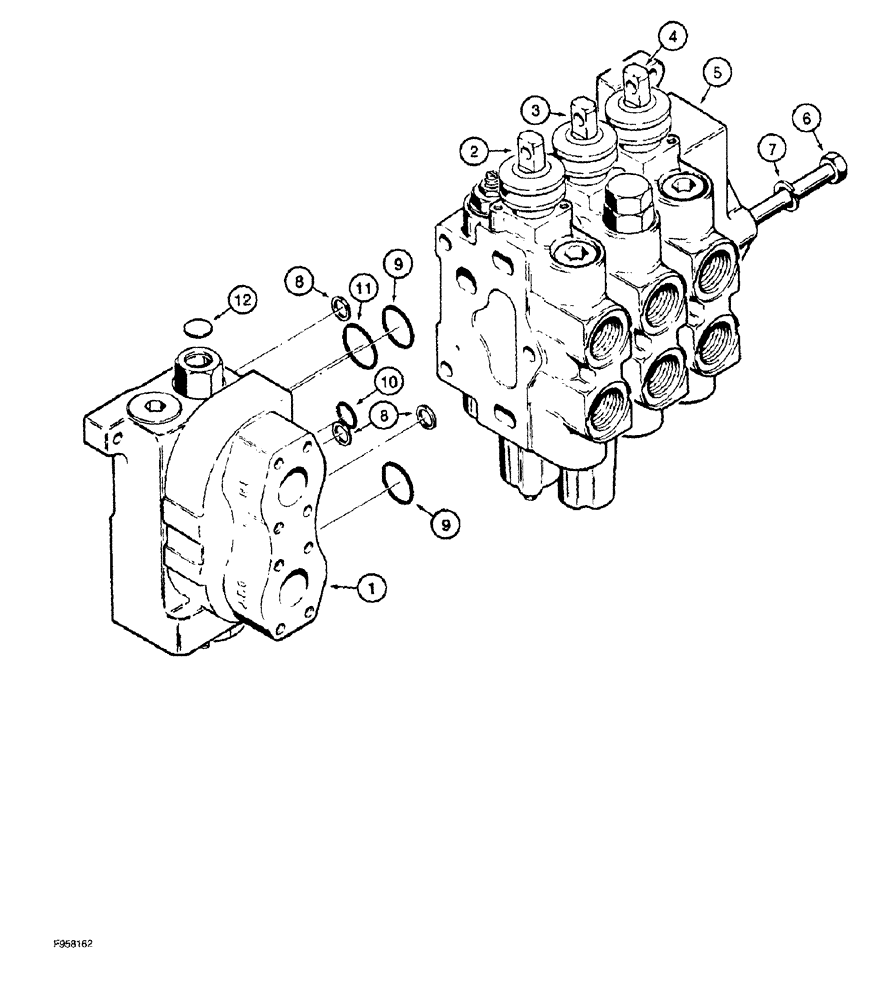

Схема запчастей Case 1150G - (8-044) - THREE-SPOOL VALVE, PRIOR TO JJG0218023 AND JJG0218024 - JJG0218478 (07) - HYDRAULIC SYSTEM
2
11
6
12
5
9
4
3
8
9
7
10
8
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

R55893

VALVE

ASSY., control, three-spool, complete valve assembly no longer available, order individual components, Ref. 1 - 11

1шт.

1

N14016

VALVE

SECTION ASSY., inlet and outlet, see Figure 8-048

1шт.

2

S300687

HYD VALVE SECTION

ASSY., tilt, see Figure 8-054

1шт.

3

N14018

VALVE

SECTION ASSY., lift, see Figure 8-052

1шт.

4

N14017

VALVE

SECTION ASSY., angle, see Figure 8-054

1шт.

5

D87072

COVER ASSY

end

1шт.

6

D74374

BOLT

special

3шт.

7

492-11044

LOCK WASHER,7/16"

3шт.

8

D77566

SHIM,.0030" Thk

Sections

12шт.

R37003

SEAL KIT

KIT, Includes: Ref. 9 - 11

4шт.

9

NSS

NOT SOLD SEPARAT

O-RING, 32 mm (1-5/16 inch) OD

2шт.

10

NSS

NOT SOLD SEPARAT

O-RING, 25 mm (1 inch) OD

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING, 37 mm (1-1/2 inch) OD

1шт.

12

D87075

COVER

CAP dust, steel, if used

1шт.
