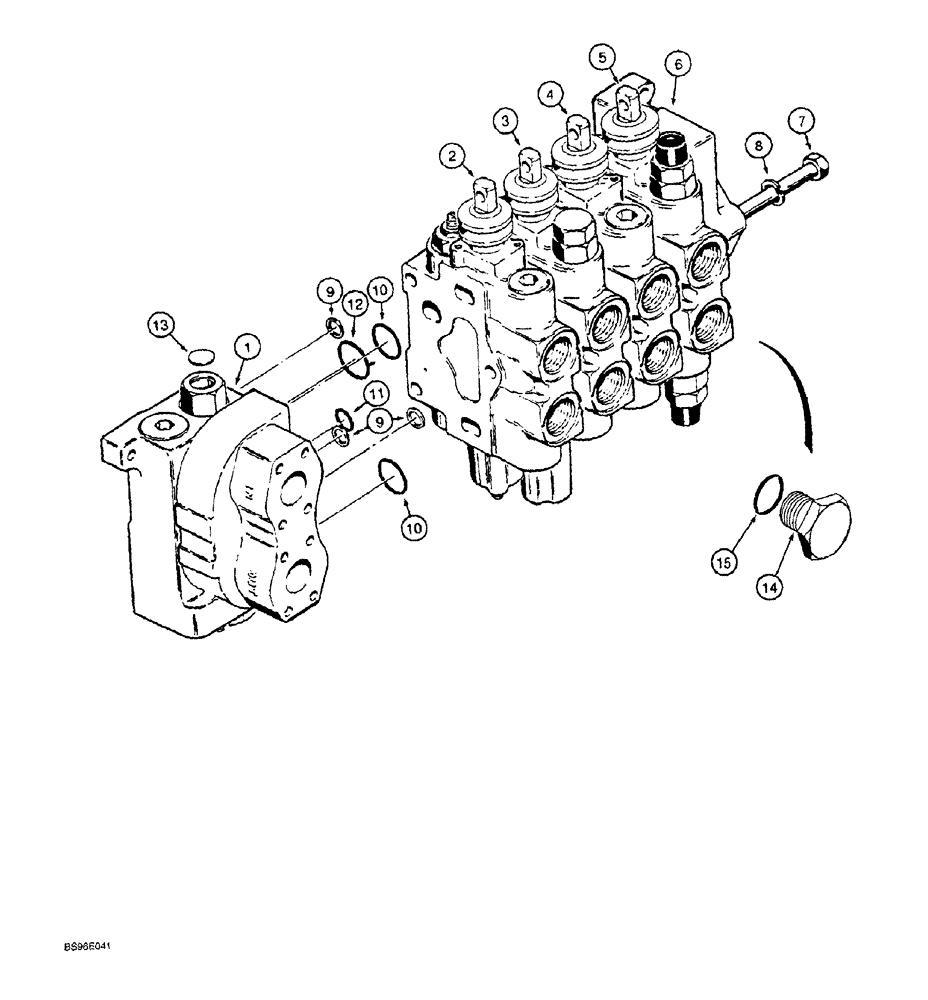

Запчасти Case 1150G (8-046) - FOUR-SPOOL VALVE, WITH RIPPER, PRIOR TO JJG0218023 AND JJG0218024 - JJG0218478 (07) - HYDRAULIC SYSTEM

R56333

VALVE

ASSY., control, four-spool, complete valve assembly no longer available, order individual components, Ref. 1 - 12

1шт.

1

N14016

VALVE

SECTION ASSY., inlet and outlet, see Figure 8-048

1шт.

2

S300687

HYD VALVE SECTION

ASSY., tilt, see Figure 8-054

1шт.

3

N14018

VALVE

SECTION ASSY., lift, see Figure 8-052

1шт.

4

N14017

VALVE

SECTION ASSY., angle, see Figure 8-054

1шт.

5

N14026

VALVE

SECTION ASSY., ripper, see Figure 8-050

1шт.

6

D87072

COVER ASSY

end

1шт.

7

D74375

BOLT

special

3шт.

8

492-11044

LOCK WASHER,7/16"

3шт.

9

D77566

SHIM,.0030" Thk

Sections

15шт.

R37003

SEAL KIT

KIT, Includes: Ref. 10 - 12

5шт.

10

NSS

NOT SOLD SEPARAT

O-RING, 32 mm (1-5/16 inch) OD

2шт.

11

NSS

NOT SOLD SEPARAT

O-RING, 25 mm (1 inch) OD

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING, 37 mm (1-1/2 inch) OD

1шт.

13

D87075

COVER

CAP dust, steel, if used

1шт.

14

273916

PLUG,Hex, 1-5/16" - 12 ORB

Used for converting four-spool valve to three-spool valve, if used, Includes Ref. 15

2шт.

15

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.
