(6-022) - TRANSMISSION ASSEMBLY, BEVEL PINION SHAFT AND GEAR

Запчасти Case 1150G (6-022) - TRANSMISSION ASSEMBLY, BEVEL PINION SHAFT AND GEAR (03) - TRANSMISSION

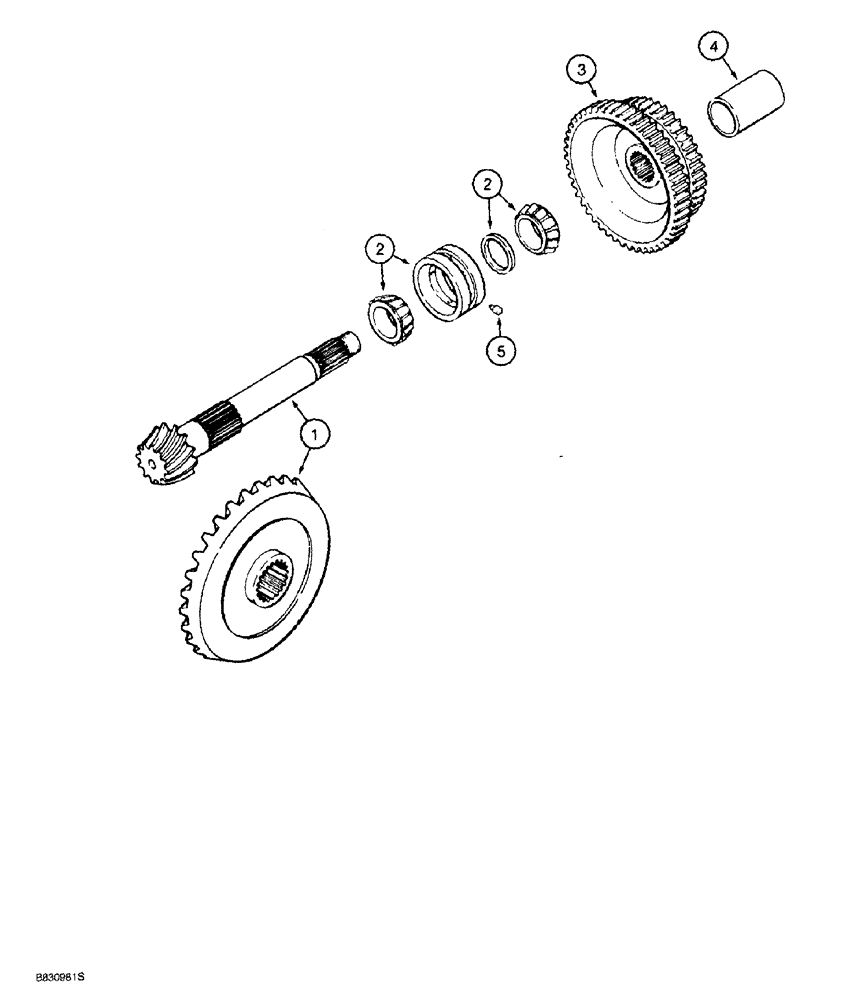

Схема запчастей Case 1150G - (6-022) - TRANSMISSION ASSEMBLY, BEVEL PINION SHAFT AND GEAR (03) - TRANSMISSION
2
1
4
5
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

139993A1

TRANSMISSION

ASSY., see Figures 6-010 - 6-031C and 7-002, Includes: Ref. 1 - 5

1шт.

1

G107899

GEAR, BEVEL

BEVEL GEAR SHAFT, matched, right-hand

1шт.

1

G107902

GEAR

SHAFT, matched, left-hand

1шт.

2

A50680

TAPERED BEARING,2.2505" ID x 4.251" OD x 2.5786"

paired taper roller

2шт.

3

G102299

GEAR

high/low, pinion shaft

2шт.

4

A50682

BUSHING

SPACER pinion gear

2шт.

5

G109429

PIN,7.32mm OD x 14.22mm L

bearing retaining

2шт.
