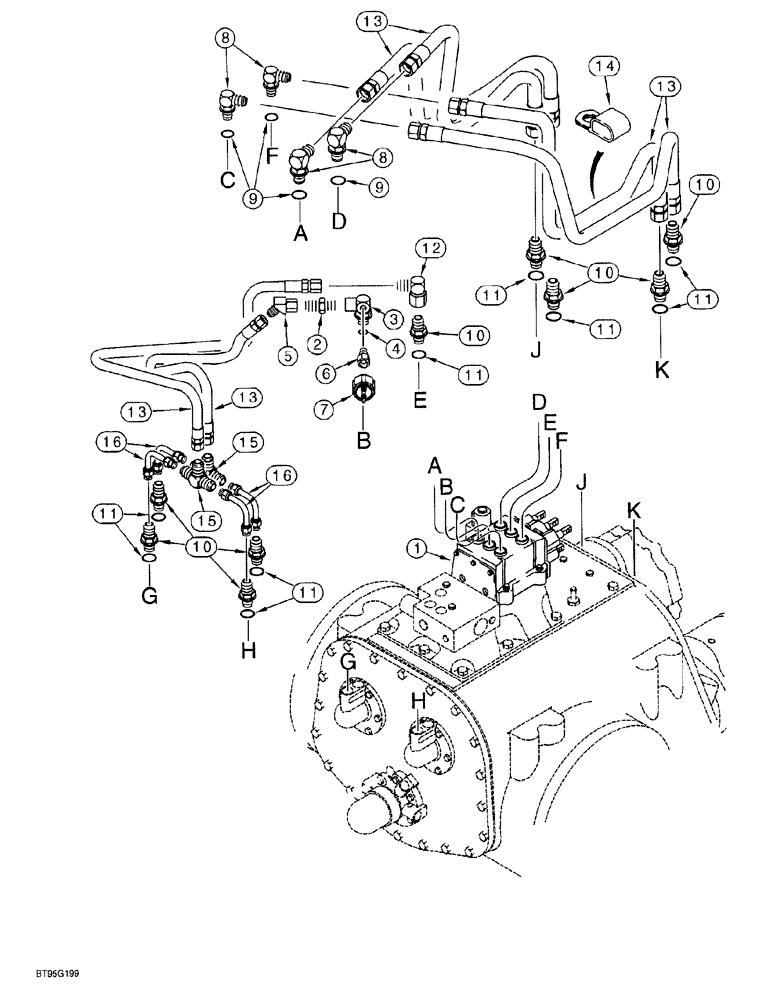

Запчасти Case 1150G (6-030) - TRANSMISSION ASSEMBLY HYDRAULICS, FORWARD/REVERSE LINES (03) - TRANSMISSION

139993A1

TRANSMISSION

ASSY., see Figures 6-010 - 6-031C, 7-002, Includes: Ref. 1 - 16

1шт.

1

125588A4

VALVE

ASSY., transmission control, see Figure 6-026 for components and 6-031A for mounting

1шт.

2

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

straight, 3/4-16 flare x 3/8 inch PT

1шт.

3

G107178

ELBOW

90°, special, tapped for backup alarm switch plumbing, Includes: Ref. 4

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

Left-hand

1шт.

6

R52651

FITTING

SNUBBER pressure switch

1шт.

7

D139904

SWITCH

pressure, backup alarm, see Figure 4-032

1шт.

8

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes: Ref. 9

4шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Adapter, Straight, O-ring boss, Incl. Ref 11

9шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

13

177584A1

HOSE

600 mm (23-5/8 inch) long

6шт.

14

G100534

CLAMP

hose

2шт.

15

218-594

TEE,3/4"-16, 37 Degree

3/4-16 inch flare branch x flare x flare

2шт.

16

144896A1

TUBE,12.7 mm OD, 78.8, 71.5 mm Length

forward and reverse, brake lube, rear, short

4шт.
