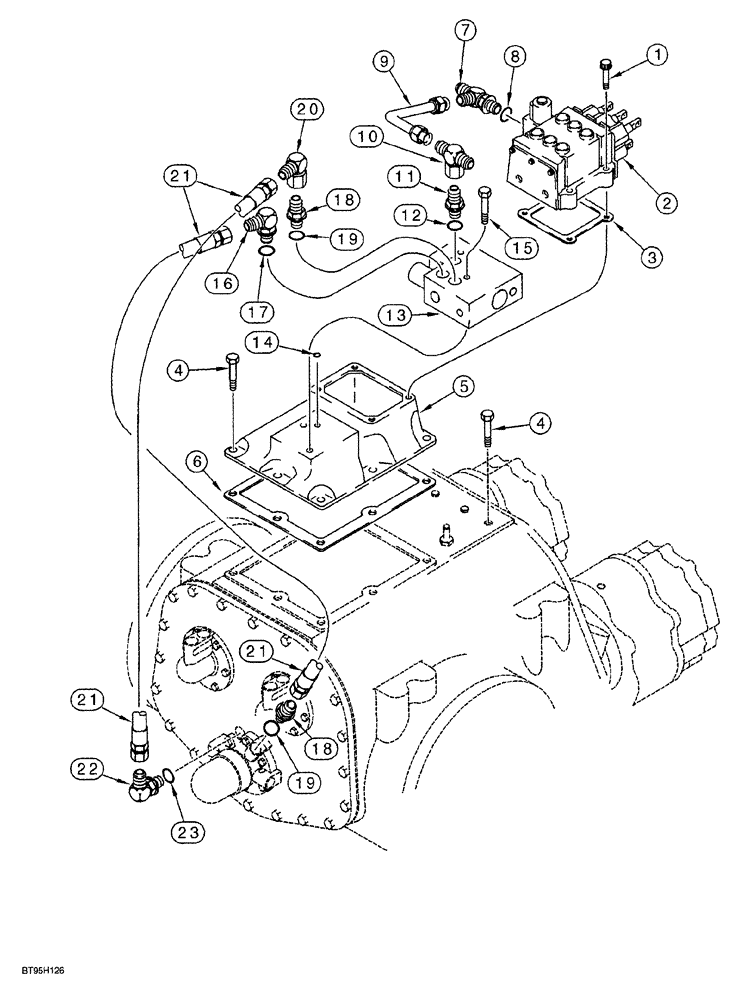

Запчасти Case 1150G (6-031A) - TRANSMISSION ASSEMBLY HYDRAULICS, HIGH/LOW RANGE LINES (03) - TRANSMISSION

139993A1

TRANSMISSION

ASSY., see Figures 6-010 - 6-031C and 7-002, Includes: Ref. 1 - 23

1шт.

1

180-607

12 PT SCREW,Flg, 3/8" - 16 x 2", Gr 8

12 point flange, chemical coating, 3/8 NC x 2 inch, grade 8

4шт.

2

125588A4

VALVE

ASSY., transmission control, see Figure 6-026, Includes: Ref. 3

1шт.

3

1986527C1

GASKET

, Serial Range: valve,-riser

1шт.

4

107-9820

LOCK BOLT,Locking, 1/2"-13 x 1 1/4", G8, Full Thd

hex, chemical locking, 1/2 NC x 1-1/4 inch, grade 8

8шт.

5

139972A2

HOUSING

RISER valve

1шт.

6

1348904C1

GASKET

GASKET, control valve riser to transmission housing

1шт.

Part of seal kit 238104A1

1шт.

7

218-5594

TEE,37 Degree, 1 1/16"-12, 7/8"-14 O-Ring Run, 1 1/16"-12

TEE, 1-1/16-12 flare branch x flare x 7/8-14 inch adj. O-ring, Includes: Ref. 8

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9

140926A1

TUBE,19.05 mm OD, 139, 83.4 mm Length

control valve to range valve, control valve inlet, see Ref. 26 on Figure 6-034 for attaching parts

1шт.

10

218-837

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

1-1/16-12 inch swivel branch x flare x flare, to hose at filter, see Ref. 24 on Figure 6-034

1шт.

11

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

Straight, Includes Ref 12

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

130936A3

VALVE

ASSY., high/low range, see Figure 6-029A

1шт.

14

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

Part of seal kit 238108A1

1шт.

15

107-9648

LOCK BOLT,Locking, 3/8"-16 x 3", G8

2шт.

16

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes: Ref. 17

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

18

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Adapter, Straight, O-ring boss, Incl. Ref 19

2шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

21

177584A1

HOSE

600 mm (23-5/8 inch) long

2шт.

22

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

ELBOW, 90°, 3/4-16 flare x 9/16-18 inch adj. O-ring boss, Includes: Ref. 23

1шт.

23

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

238104A1

SEAL KIT

KIT transmission, Includes: Ref. 6, plus additional seals on Figure 6-010

1шт.

238108A1

SEAL KIT

KIT transmission, high/low range valve, Includes: Ref. 14, also includes seals on Figure 6-029A

1шт.
