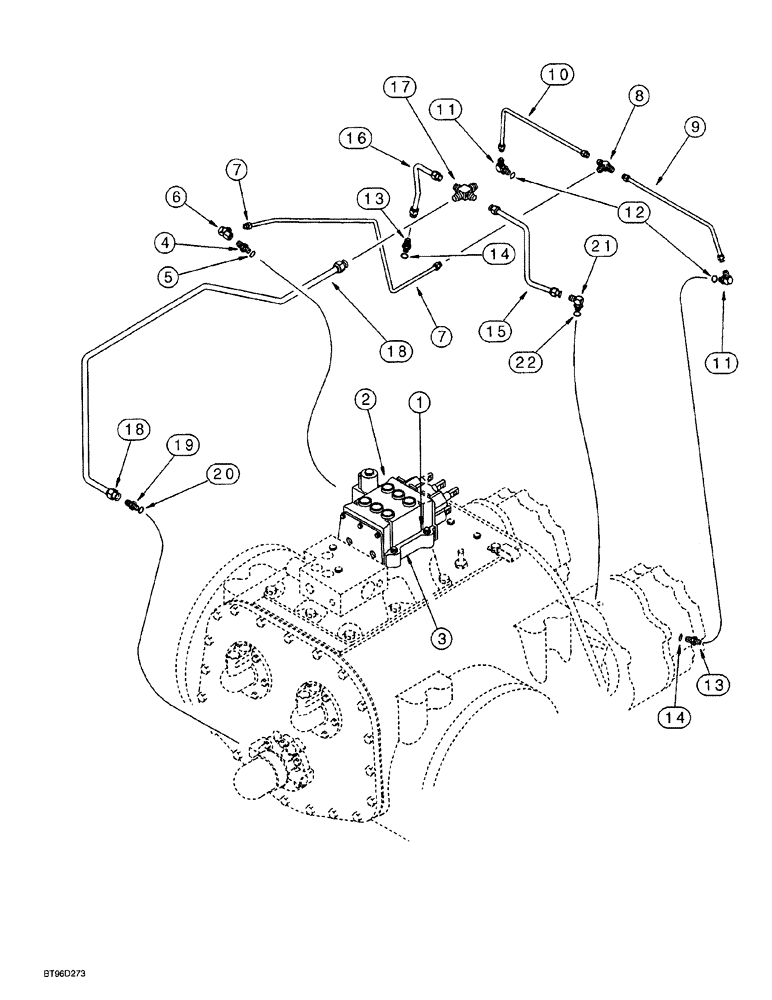

Запчасти Case 1150G (6-031C) - TRANSMISSION ASSEMBLY HYDRAULICS, BRAKE LINES (03) - TRANSMISSION

139993A1

TRANSMISSION

ASSY., see Figures 6-010 - 6-031C and 7-002, Includes: Ref. 1 - 22

1шт.

1

180-607

12 PT SCREW,Flg, 3/8" - 16 x 2", Gr 8

12 point flange, chemical coating, 3/8 NC x 2 inch, grade 8

4шт.

2

125588A4

VALVE

ASSY., transmission control, see Figure 6-026, Includes: Ref. 3

1шт.

3

1986527C1

GASKET

, Serial Range: valve,-riser

1шт.

4

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER straight, 9/16-18 flare x 7/16-20 inch O-ring boss, Includes: Ref. 5

1шт.

5

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

6

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

7

140924A2

TUBE,9.52 mm OD, 564, 172.6 mm Length

parking brake supply

1шт.

8

218-593

TEE,9/16"-18, 37 Degree

9/16-18 inch flare branch x flare x flare

1шт.

9

140922A2

TUBE,9.25 mm OD, 224.4, 144.3 mm Length

parking brake, right-hand

1шт.

10

175181A2

TUBE,9.52 mm OD

parking brake, left-hand

1шт.

11

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90°, 9/16-18 inch flare x adj. O-ring boss, Includes: Ref. 12

2шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Adapter, Straight, O-ring boss, Incl. Ref 14

3шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

144796A2

TUBE,12.7 mm OD, 173, 111.9 mm Length

right-hand brake lube

1шт.

16

144798A2

TUBE,12.7 mm OD, 184.4, 71.7 mm Length

left-hand brake lube

1шт.

17

141431A1

FITTING

CROSS special

1шт.

18

144800A2

TUBE,15.88 mm OD, 682.1, 172 mm Length

brake lube, center

1шт.

19

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 20

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

21

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes: Ref. 22

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
