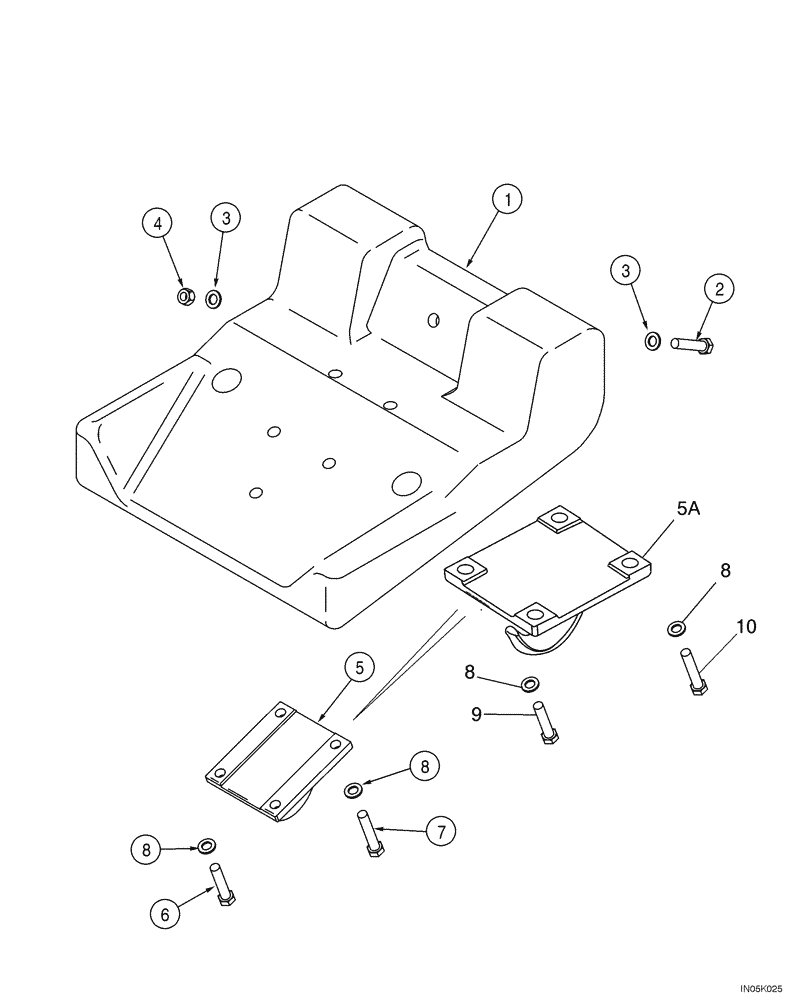

Запчасти Case 1150H_IND (09-05) - COUNTERWEIGHT, FRONT - HOOK, TOWING (09) - CHASSIS/ATTACHMENTS

1

376211A1

WEIGHT

Front

1шт.

2

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

If Used

2шт.

2

326-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 8

If Used

2шт.

3

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

3шт.

4

425-1012

NUT,3/4"-10, G5

1шт.

5

71671

PLATE ASSY.

No Longer Available, Order 450473A1, Ref 5A

1шт.

5a

450473A1

HOOK

Pull Front

1шт.

6

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Used without 376211A1, Ref 1 & Used with 71671, Ref 5

4шт.

7

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

3/4 x 4; Used With 376211A1, Ref 1 & With 71671, Ref 5

4шт.

8

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

4шт.

9

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

Used without 376211A1, Ref 1 & Used with 450473A1, Ref 5A

4шт.

10

326-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

Used with 376211A1, Ref 1 & with 450473A1, Ref 5A

4шт.
