(04-21) - BLOWER - CONDENSER, AIR CONDITIONING

Запчасти Case 1150H_IND (04-21) - BLOWER - CONDENSER, AIR CONDITIONING (04) - ELECTRICAL SYSTEMS

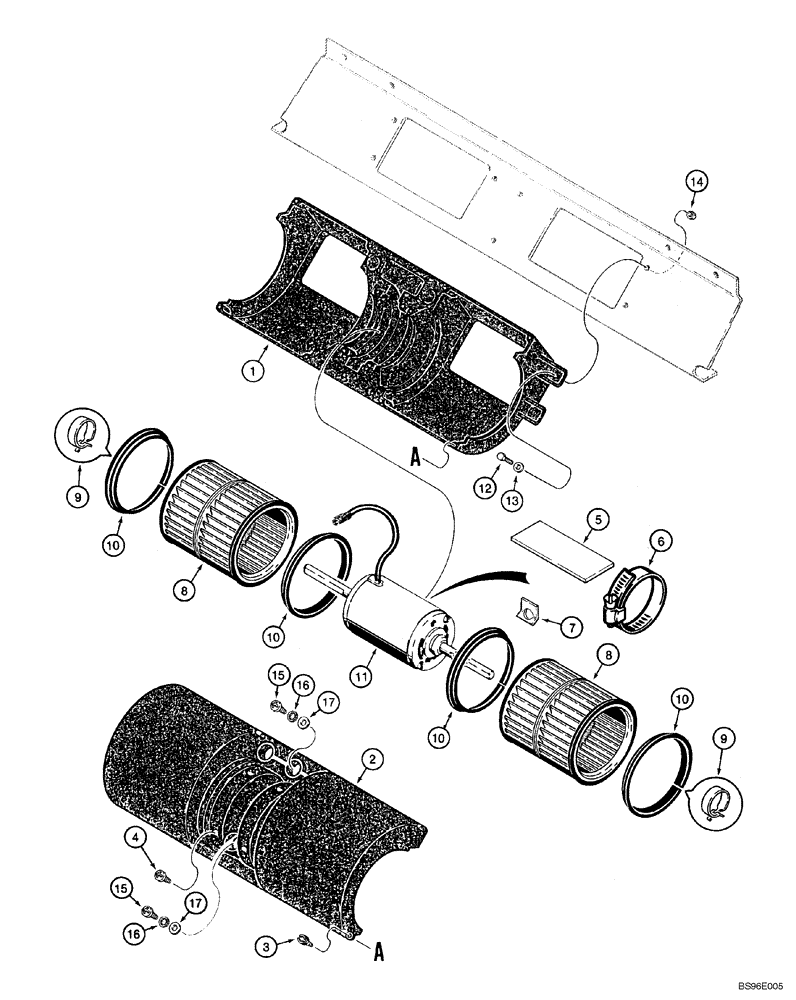

Схема запчастей Case 1150H_IND - (04-21) - BLOWER - CONDENSER, AIR CONDITIONING (04) - ELECTRICAL SYSTEMS
17
13
6
5
4
15
3
10
2
16
8
12
9
9
15
10
11
1
14
7
10
10
16
17
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

Above Cab Roof

1шт.

1990972C1

BLOWER,12V, Assembly, Air Conditioning

Incl. 1 - 11, Not Available As An Assembly, Order Components

2шт.

1

F64740

HOUSING

Lower

1шт.

2

F64741

HOUSING

Upper

1шт.

3

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

8шт.

4

187-1928

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

4шт.

5

1999608C1

GASKET

2шт.

6

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

1шт.

7

R51563

CLIP,ELECTRICAL

1шт.

8

F64935

BLOWER,Fan

2шт.

9

F64936

CLAMP

2шт.

10

F64739

RING

4шт.

11

R54415

MOTOR, ELECTRIC

1шт.

12

463-11012

SCREW,Hex Hd, #10-24 x 3/4"

No. 10 x 3/4

8шт.

13

495-31022

WASHER,#10

8шт.

14

230-42409

NUT,#10-24, GA

No. 10

8шт.

15

265-14512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

2шт.

16

493-41020

LOCK WASHER,Ext Tooth, #10

2шт.

17

495-31022

WASHER,#10

If Used

2шт.
