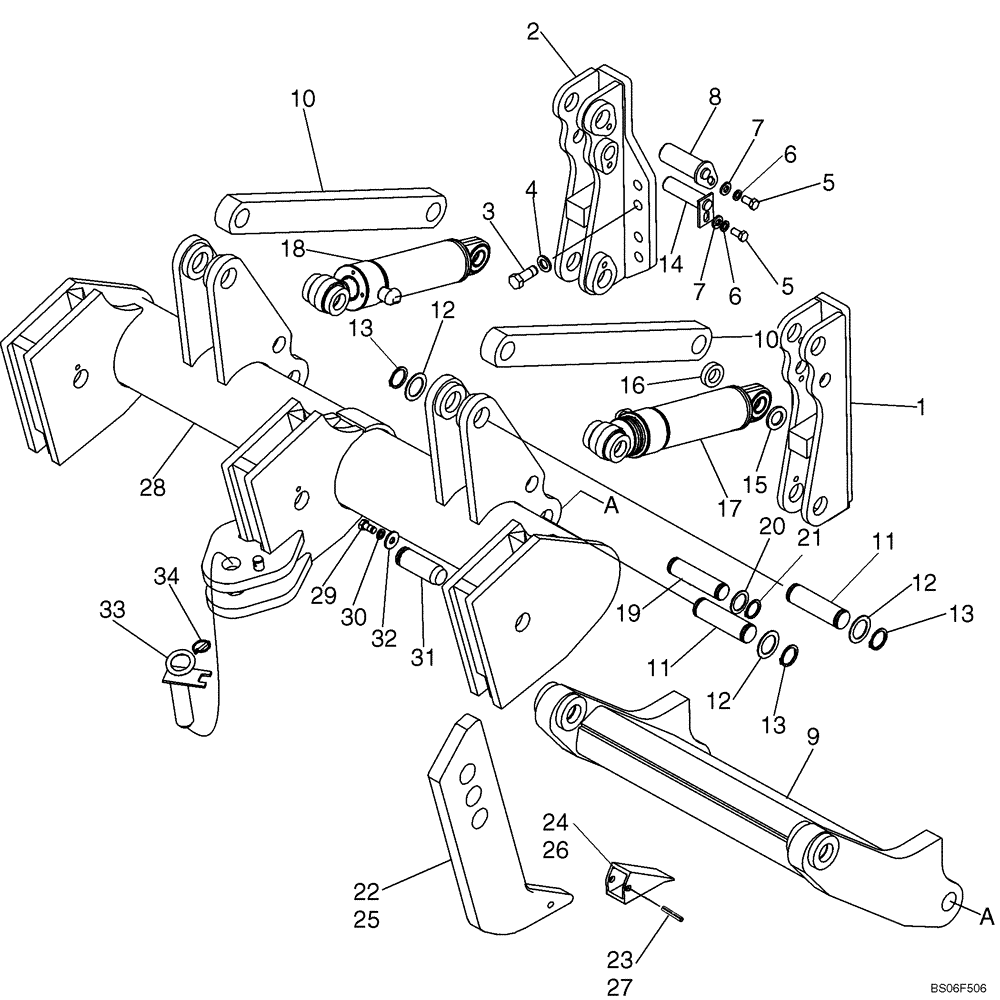

Запчасти Case 1150K (09-04) - RIPPER (09) - CHASSIS/ATTACHMENTS

1

87387417

BRACKET

Right Hand Plate

1шт.

2

87387418

BRACKET

Left Hand Plate

1шт.

3

87354794

BOLT,Hex, M24 x 60mm, Cl 10.9

M24 x 60; 10.9 Locking Bolt

18шт.

4

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

18шт.

5

614-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 8.8, Full Thd

6шт.

6

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

6шт.

7

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

6шт.

8

87355606

PIN,50.8mm OD x 144.78mm L

50.80 mm (2 in) dia Pin; Upper and Lower

4шт.

9

87383121

ARM

Lower Arm

1шт.

10

87383123

ARM

Upper Arm

2шт.

11

87383799

PIN,50.8mm OD x 179.8mm L

50.80 mm (2 in) dia Arm Pin

4шт.

12

495-81282

WASHER,2 1/16" x 3" x .109"

8шт.

13

103-16200

SNAP RING,#200, Ext

8шт.

14

87355608

PIN,38.1mm OD x 144.78mm L

38.10 mm (1-1/2 in) dia Cylinder Mounting Pin; Center

2шт.

15

87383796

WASHER

38.89 ID x 65 OD x 6.4 mm thk; Outer Washer

2шт.

16

87383797

WASHER

38.89 ID x 65 OD x 17.5 mm thk; Inner Ring

2шт.

17

87517747

HYDRAULIC CYLINDER

Cylinder, Right - Hand Ripper, 101.4 ID x 254 mm strk, Right Hand, Ripper, See Figure 08-25; If Used

1шт.

17

87651090

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke

Cylinder, Right - Hand Ripper, 101.6 ID x 254 mm strk, Right Hand, Ripper, See Figure 08-25A; If Used

1шт.

17

87651090R

REMAN-HYD CYLINDER

"1150K SERIES 3 CRAWLER DOZER TIER 3 (NA/EU), Cylinder, Right - Hand Ripper, \n101.6 ID x 254 mm strk, Right Hand, Ripper (10/06-)"

1шт.

17

87651090C

CORE-HYD CYLINDER

Return Number

1шт.

18

87517745

HYDRAULIC CYLINDER

Cylinder, Left - Hand Ripper, 101.4 ID x 254 mm strk, Left Hand, Ripper, See Figure 08-25; If Used

1шт.

18

87651120

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke

Cylinder, Left - Hand Ripper, 101.6 ID x 254 mm strk, Left Hand, Ripper, See Figure 08-25A; If Used

1шт.

18

87651120R

REMAN-HYD CYLINDER

1150K SERIES 3 CRAWLER DOZER TIER 3 (NA/EU) (10/06-)

1шт.

18

87651120C

CORE-HYD CYLINDER

Return Number

1шт.

19

87383800

PIN,44.45mm OD x 179.8mm L

44.5 mm (1-3/4 in) dia Cylinder Mounting Pin

2шт.

20

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

4шт.

21

103-16175

SNAP RING,#175, Ext

4шт.

22

R53053 SHANK ASSEMBLY; H&L Brand, Optional With 258724A1 Tooth/A; Not Available As An Assembly, Order Components; Incl. Ref 22 - 24

3шт.

22

122237A1

SHANK, BUCKET TOOTH

1шт.

23

L32090

PIN

No. 25

1шт.

24

D55468

TOOTH

1шт.

25

258724A1 SHANK ASSEMBLY; Esco Brand, Optional With R53053 Tooth/A; Not Available As An Assembly, Order Components; Incl. Ref 25 - 27

3шт.

25

258725A1

SHANK

1шт.

26

258726A1

TOOTH

1шт.

27

258727A1

SPECIAL PIN

1шт.

28

87383122

BAR

Beam, Tool, Includes Drawbar

1шт.

29

409-91020

BOLT

5/8 x 1-1/4 Locking Bolt

3шт.

30

492-11062

BEARING WASHER,5/8"

3шт.

31

87383798

PIN,50.8mm OD x 139.7mm L

Headless Pin, 50.80 mm (2 in) dia

3шт.

32

419223A1

WASHER

Hardened Washer

3шт.

33

87383801

PIN

Pin

1шт.

34

A30338

PIN

1шт.
