(09-21) - CANOPY, ROPS - CONSOLES, SIDE

Запчасти Case 1150K (09-21) - CANOPY, ROPS - CONSOLES, SIDE (09) - CHASSIS/ATTACHMENTS

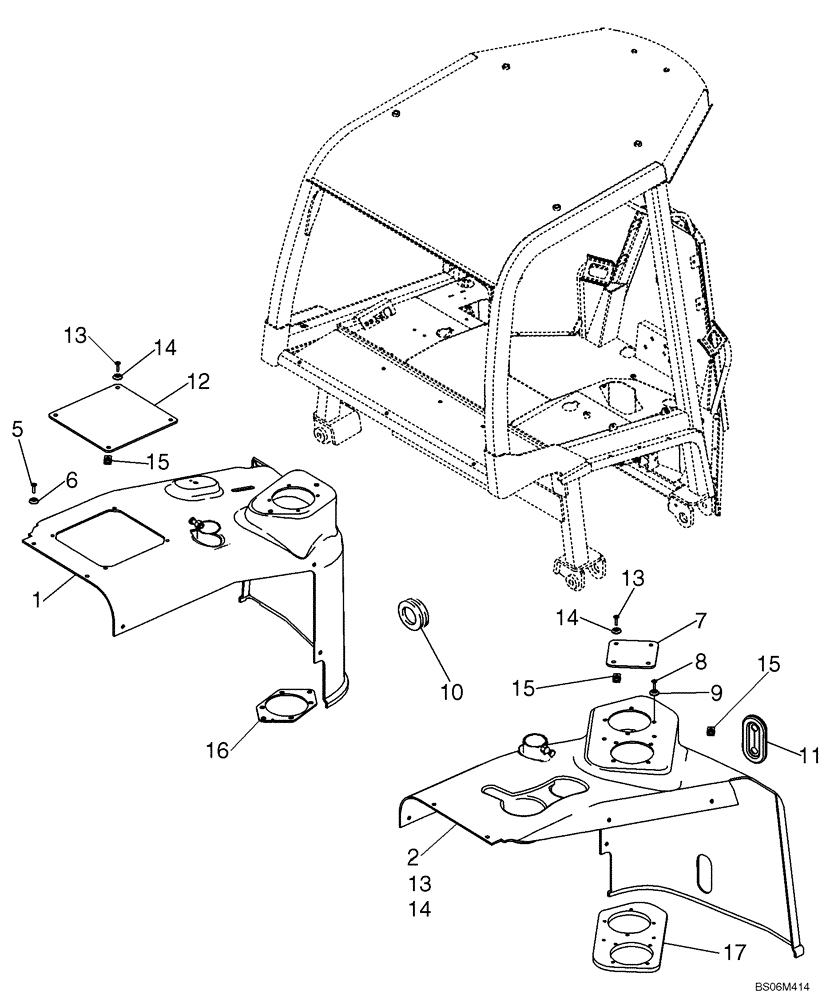

Схема запчастей Case 1150K - (09-21) - CANOPY, ROPS - CONSOLES, SIDE (09) - CHASSIS/ATTACHMENTS
15
6
14
14
17
11
1
13
15
14
2
13
8
7
16
9
5
12
10
15
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87380403

CONSOLE

Left-Hand Side Console

1шт.

2

87380401

CONSOLE

Right-Hand Side Console

1шт.

5

87341593

SCREW,Oval Hd, Csk, M6 x 20mm, Cl 4.8

M6 x 20 Oval Countersunk, Phillips Head, Black

20шт.

6

79076208

WASHER

Nylon

20шт.

7

87390401

PROTECTIVE COVER

Control Cover; Auxiliary

1шт.

8

87341593

SCREW,Oval Hd, Csk, M6 x 20mm, Cl 4.8

M6 x 20

6шт.

9

79076208

WASHER

Nylon

6шт.

10

248-1370

GROMMET

Grommet; 3/8 ID Ca Rubber Str Split

1шт.

11

76067249

SHIELD

Seal, Lockout Lever

2шт.

12

87380405

COVER PLATE

Diagnostic Cover Plate

1шт.

13

87341593

SCREW,Oval Hd, Csk, M6 x 20mm, Cl 4.8

Oval Head; M6 x 20

4шт.

14

79076208

WASHER

Nylon

4шт.

15

76047274

NUT,M6 x 1

4шт.

16

87358579

PLATE, SUPPORT

Joystick

1шт.

17

87386604

RETAINING PLATE

Bottom Adapter Plate

1шт.
