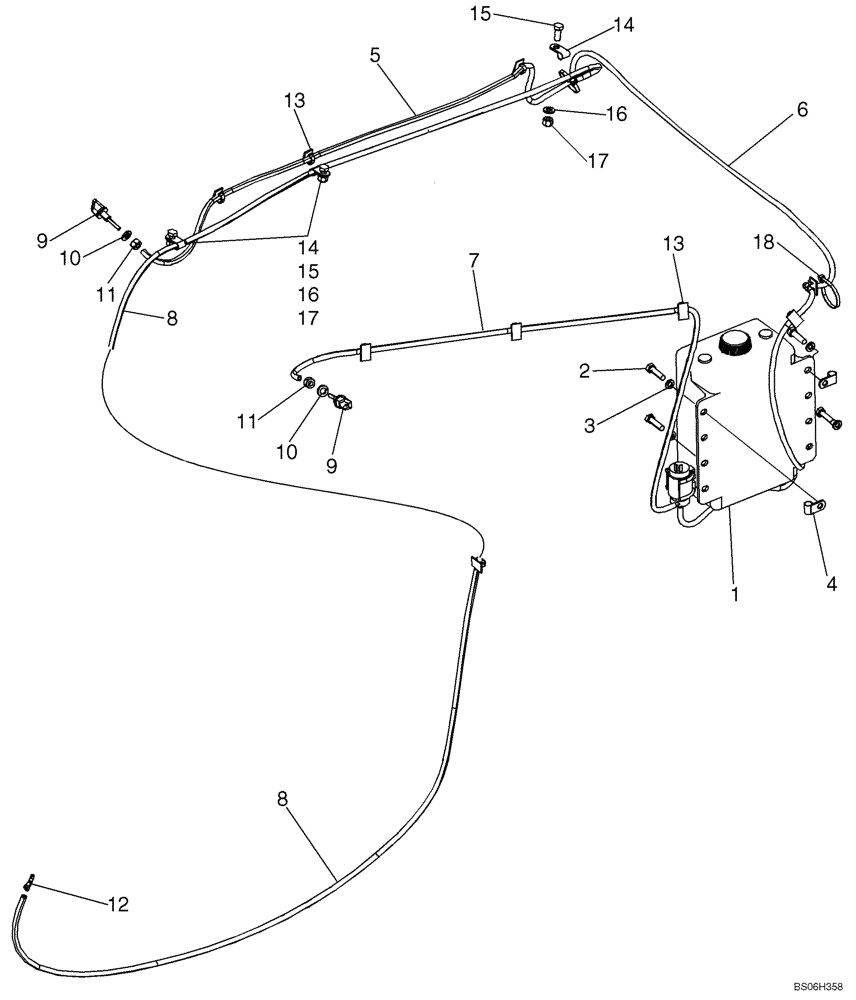

Запчасти Case 1150K (09-32) - CAB - WASHER, WINDSHIELD (09) - CHASSIS/ATTACHMENTS

1

236781A1

CONTAINER

Reservoir, Windshield Washer Tank, Incl (2) Ref. 19; 4 Quart (3.8 Litre); Includes (2) Pump Mounting Side Clips, Tee, (2) Hoses, Cap; Component Parts Not Serviced Separately

1шт.

1

87439461

CAP

1шт.

1

48042633

PUMP,24V

2шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

3

892-11008

LOCK WASHER,8mm ID

4шт.

4

515-22111

CLAMP,7/16", Insul, 5/16" Bolt

11.1 mm P Insulated, M8 Bolt; If Used

2шт.

4

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

(15.9 mm); If Used

2шт.

5

87585493

HOSE WASHER

2083 mm (82 in) Hose; LH Door; Cut From 397154A1 100 ft Bulk

1шт.

6

87585496

HOSE WASHER

356 mm (14-1/64 in) Hose; RH to LH Door; Cut From 397154A1 100 ft Bulk

1шт.

7

87585494

HOSE WASHER

762 mm (30 in) Hose; RH Door; Cut From 397154A1 100 ft Bulk

1шт.

8

87585495

HOSE WASHER

3819 mm (150-3/8 in) Hose; Cab Feed; Cut From 397154A1 100 ft Bulk; No Longer Used, Order 87652378

1шт.

8

87652378

HOSE WASHER,4.76 mm ID x 4735.00 mm

Cab Feed. Cut From 397154A1, 100 ft Bulk

1шт.

9

284154A1

NOZZLE,3/8" - 16

Includes A Steel and Rubber Washer, Which Are Not Serviced Separately

2шт.

10

492-11038

LOCK WASHER,3/8"

2шт.

11

425-106

NUT,3/8"-16, Cl 5

2шт.

12

87427778

FITTING,3/16"

Tee; 3/16 in

2шт.

13

L100659

CLIP

Adhesive Back Clamp

12шт.

14

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

3шт.

15

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

16

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

3шт.

17

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

18

L18331

CABLE TIE,375.9mm L, Nylon

CABLE STRAP

4шт.

19

48042633

PUMP,24V

Incl in Ref 1

2шт.
