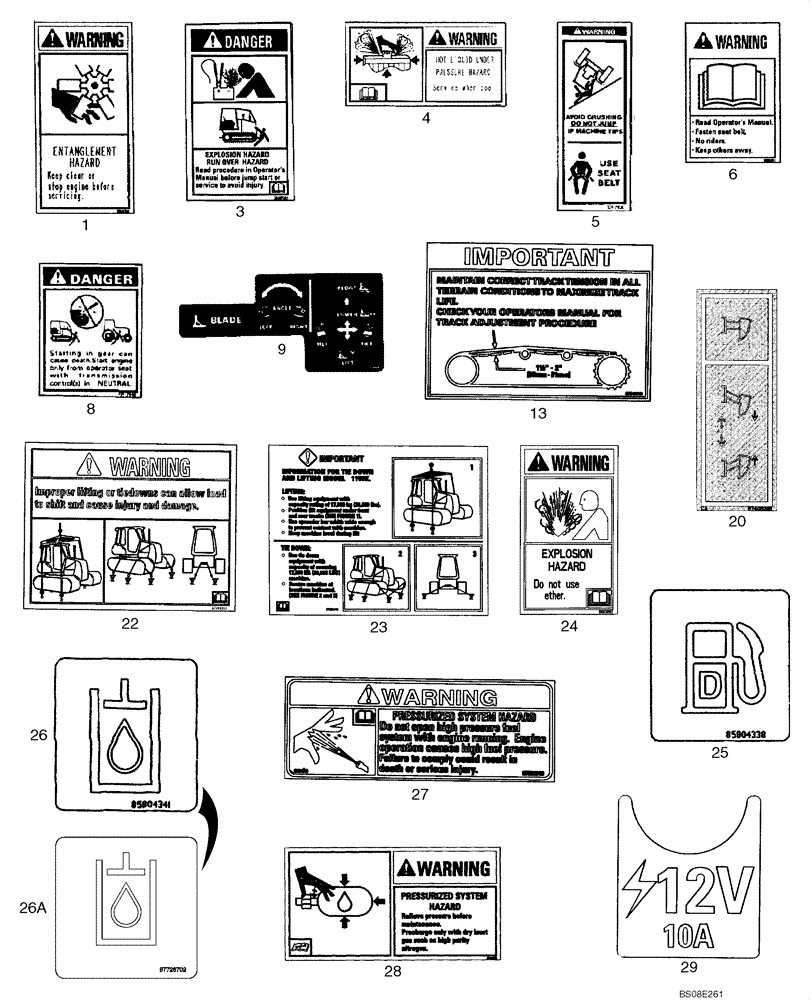

Запчасти Case 1150K (09-43) - DECALS - CANADIAN FRENCH (09) - CHASSIS/ATTACHMENTS

1

334033A1

DECAL

Warning; Entanglement Hazard

2шт.

3

389737A1

DECAL

Danger; Jump Start, Battery

2шт.

4

389742A1

DECAL

Warning; Fluid Under Pressure; Radiator Cap

1шт.

5

124269A1

DECAL

Warning; Do Not Jump

1шт.

6

87352601

DECAL

Warning; Read the Operator's Manual

1шт.

8

124279A1

DECAL

Danger; Engine Start Warning

1шт.

9

87421170

DECAL

Dozer Blade Control Pattern

1шт.

13

87542612

DECAL

Important; Track Tension

1шт.

20

87408298

DECAL

Ripper Control Pattern

1шт.

22

NSS

NOT SOLD SEPARAT

North American Decal

1шт.

23

NSS

NOT SOLD SEPARAT

North American Decal

1шт.

24

8603093

WARNING DECAL

Explosion Hazard, Do Not Use Ether

1шт.

25

85804338

DECAL,50mm x 50mm H

Diesel Fuel Fill

1шт.

26

85804341

DECAL

Hydraulic Oil Fill; No Longer Used, Order Ref 26A, 87726702

1шт.

26a

87726702

DECAL,50mm x 50mm H

Hydraulic Oil

1шт.

27

87622506

WARNING DECAL

Pressurized System Hazard; Do Not Open High Pressure Fuel System With Engine Running

1шт.

28

398573A1

WARNING DECAL

Accumulator Pressurized System Hazard, Relieve Pressure Before Maintenance

1шт.

29

87601526

DECAL,35mm x 40mm H

12 Volt Power Outlet

1шт.
