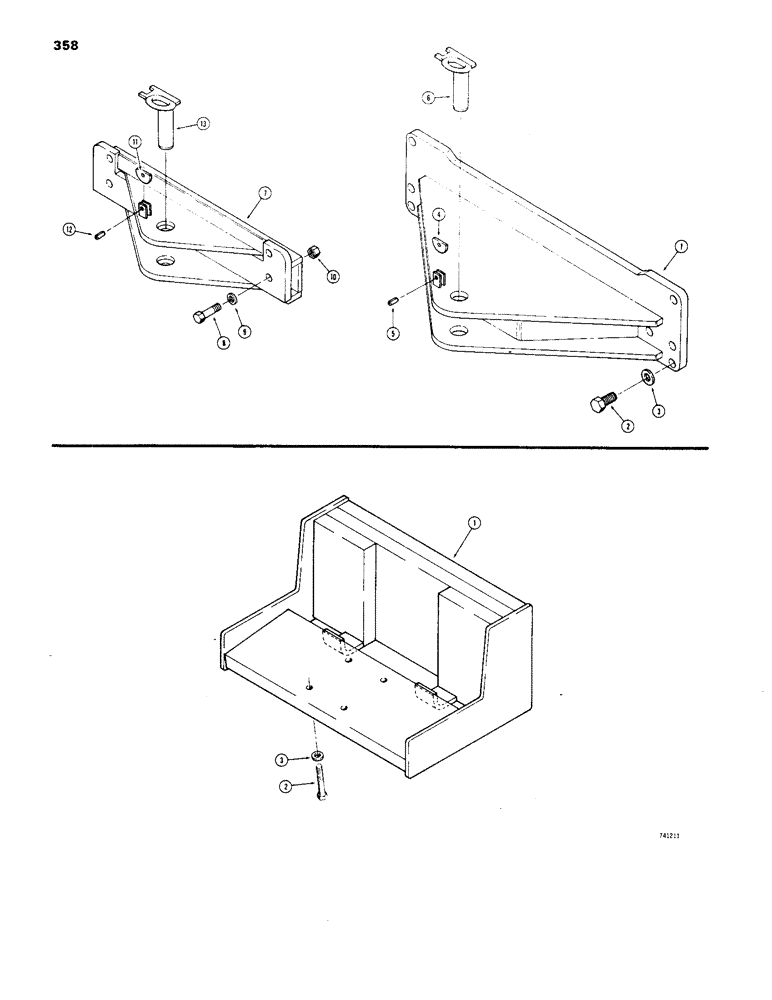

Запчасти Case 1450 (358) - DRAWBARS, MODELS WITHOUT REAR MOUNTED EQUIPMENT (09) - CHASSIS/ATTACHMENTS

1

R41056

DRAWBAR

- crawler

1шт.

2

13-1636

BOLT,Hex, 1" - 8 x 2-1/4", Gr 5, Full Thd

8шт.

3

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- hardened

8шт.

4

R26752

DISC

LOCK DISC - drawbar pin

1шт.

5

138-153

LOCK PIN,5/16" x 1", Slotted

PIN, 5/16" x 1", Slotted

1шт.

6

R26750

PIN

- drawbar

1шт.

7

R26732

DRAWBAR, SWINGING

DRAWBAR - crawler, ripper models

1шт.

8

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

Ripper models Hex, 3/4"-10 x 3", G5

4шт.

9

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened, ripper models

4шт.

10

25-1012

NUT,3/4"-10, G5

Ripper models 3/4"-10, G5

4шт.

11

R26752

DISC

LOCK DISC - drawbar pin, ripper models

1шт.

12

138-153

LOCK PIN,5/16" x 1", Slotted

PIN, , Ripper models 5/16" x 1", Slotted

1шт.

13

R26750

PIN

- drawbar, ripper models

1шт.

1

R33729

COUNTERWEIGHT - front, dozer models

1шт.

2

13-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

HHCS - 3/4" - 10 NC x 4-1/4", front counterweight dozer models

4шт.

3

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened, front counterweight dozer models

4шт.
