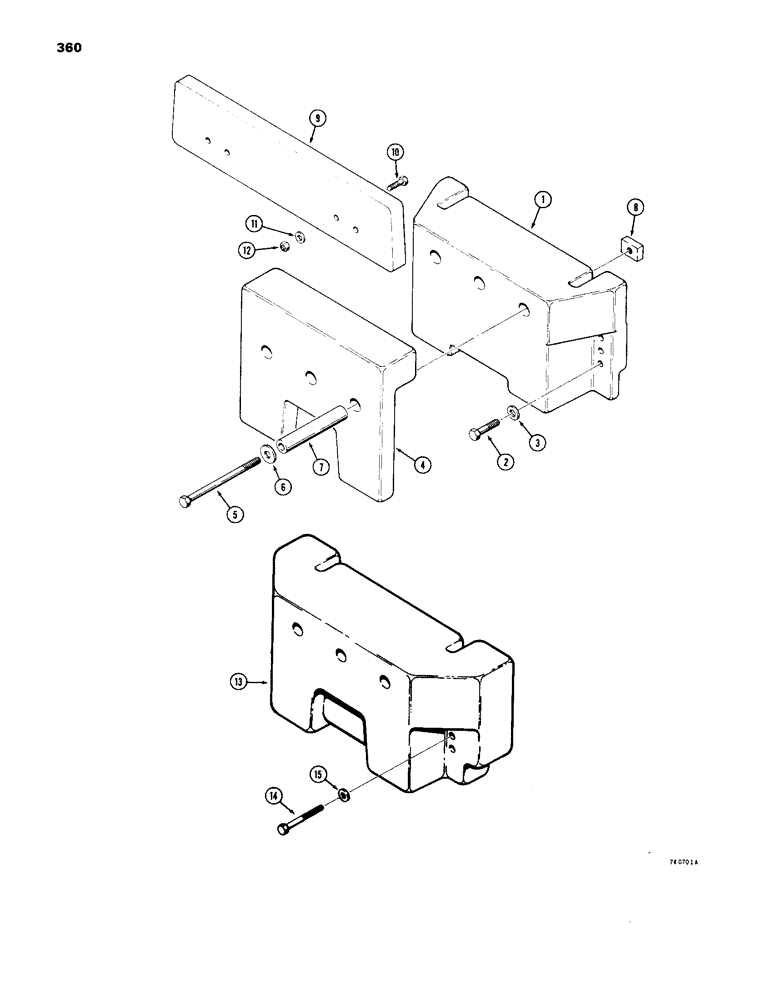

Запчасти Case 1450 (360) - REAR COUNTERWEIGHTS, MODELS WITHOUT REAR MOUNTED EQUIPMENT, 2 PIECE COUNTERWEIGHT (09) - CHASSIS/ATTACHMENTS

1

R31422

WEIGHT

COUNTERWEIGHT - rear, 2000 lbs (907.2 kg)

1шт.

2

13-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 5

6шт.

3

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special

6шт.

4

R31423

WEIGHT

COUNTERWEIGHT - rear, 1000 lbs (453.6 kg), 4-in-1 Bucket Models

1шт.

5

15-16256

BOLT

HHCS - 1" - 8 NC x 16"

2шт.

6

K5386

WASHER

- special

2шт.

7

R29775

BUSHING

SPACER - counterweight

2шт.

8

R29774

BLOCK

- tapped

2шт.

9

R32699

BALANCER

COUNTERWEIGHT - rear, 500 lbs (226.8 kg), models w/ ripper or winch

1шт.

10

13-1680

CAPSCREW,Hex, 1" - 8 x 5", Gr 5

BOLT, , Models w/ ripper or winch Hex, 1"-8 x 5", G5

4шт.

11

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special, models w/ ripper or winch

4шт.

12

25-106

NUT,3/8"-16, G5

- hex, 1" - 8 NC, models w/ ripper or winch

4шт.

13

R35802

WEIGHT

COUNTERWEIGHT - rear, 3000 lbs (1360.8 kg), models w/o rear mounted equip., 1 piece counterweight

1шт.

14

15-16144

BOLT,Hex, 1" - 8 x 9", Gr 5

HHCS - 1" - 8 NC x 9", models w/o rear mounted equip., 1 piece counterweight

6шт.

15

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- hardened, models w/o rear mounted equip., 1 piece counterweight

6шт.
