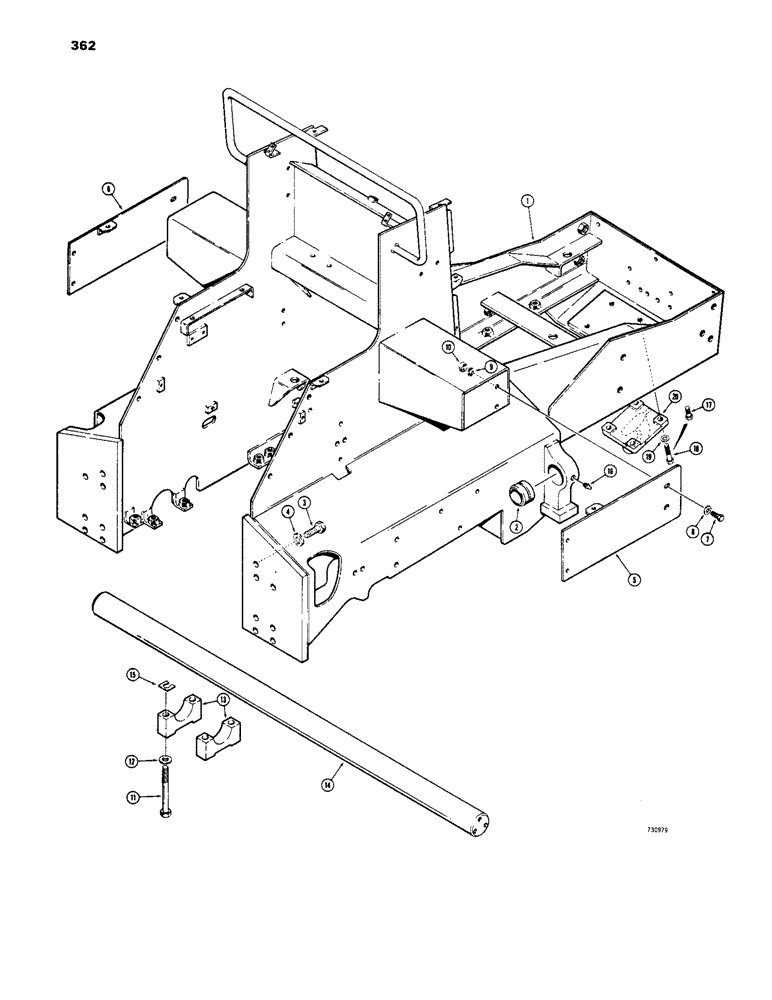

Запчасти Case 1450 (362) - ENGINE AND MAIN FRAME, PULL HOOK AND PIVOT SHAFT, DOZER MODELS (09) - CHASSIS/ATTACHMENTS

1

R28401

FRAME - engine and main, before tractor sn 8380422, Includes: Ref. 2

1шт.

1

R41037

FRAME - engine and main, tractor sn 8380422 and after, Includes: Ref. 2

1шт.

2

R28012

BUSHING

- torsion bar

2шт.

3

26-1644

BOLT,Hex, 1" - 8 x 2-3/4", Gr 8

HHCS - 1" - 8 NC x 2-3/4", grade 8

14шт.

4

D30196

WASHER

- hardened

14шт.

5

R28389

PLATE - side, RH

1шт.

6

R28388

PLATE - side, LH

1шт.

7

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

8

R24718

WASHER

- hardened, 1/2"

8шт.

9

92-8

LOCK WASHER,1/2"

8шт.

10

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

8шт.

11

26-16152

BOLT,Hex, 1" - 8 x 9-1/2", Gr 8

HHCS - 1" - 8 NC x 9-1/2", grade 8

8шт.

12

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special

8шт.

13

R28410

CLAMP

- pivot shaft

4шт.

14

R28437

SHAFT

- pivot

1шт.

15

R28516

SPACER

- clamp

4шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

17

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

without pull hook Hex, 3/4"-10 x 1 3/4", G5

4шт.

18

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

HHCS - 3/4" - 10 NC x 3-1/4"

4шт.

19

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

4шт.

20

71671

PLATE ASSY.

HOOK - pull

1шт.

25-2810

SQUARE NUT

cage, used for the frame

1шт.
