(6.711[01]) - ELECTRICAL SYSTEM - ELECTRIC WIRING

Запчасти Case 1850K (6.711[01]) - ELECTRICAL SYSTEM - ELECTRIC WIRING Electrical System / Decals

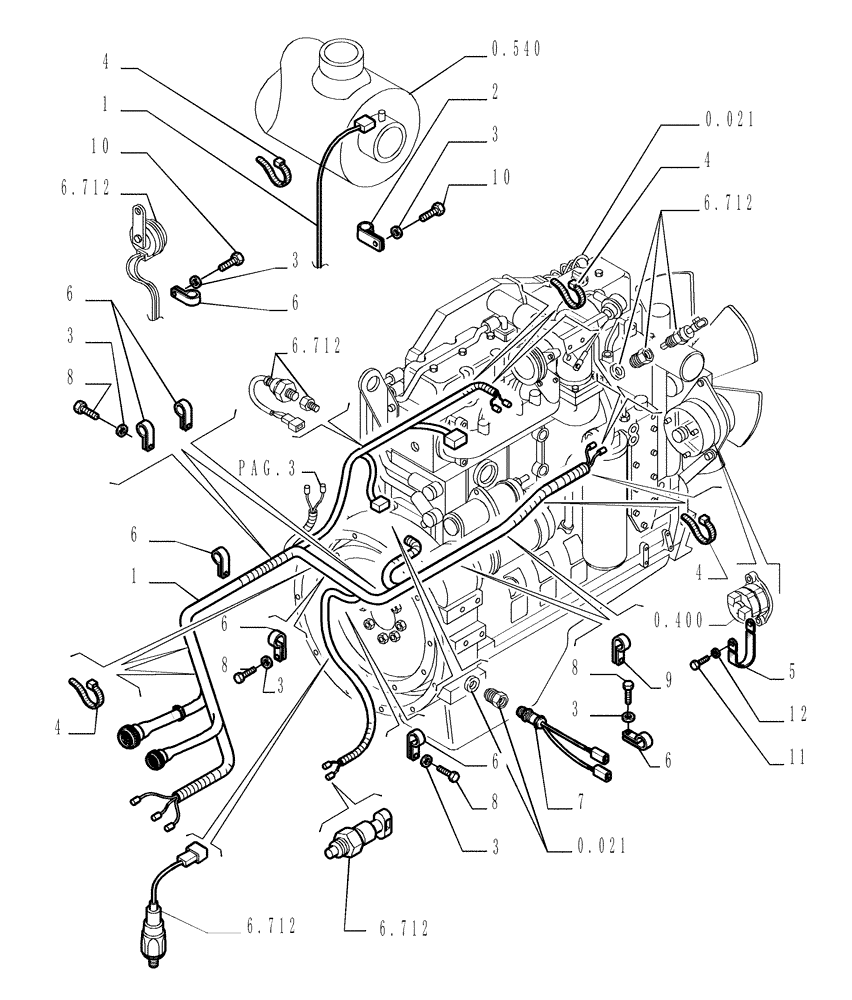

Схема запчастей Case 1850K - (6.711[01]) - ELECTRICAL SYSTEM - ELECTRIC WIRING Electrical System / Decals
pag.3
3
4
10
6.712
8
6.712
12
0.400
0.540
6.712
3
2
6
3
4
10
0.021
3
1
3
6
6
8
9
1
1
8
6.712
8
4
6
4
6
0.021
3
5
6
6.712
1
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

76079321

WIRE HARNESS

Machine

1шт.

2

10450290

CLAMP,12mm, Coat, 9mm Bolt Hole, P Type

12 mm dia.

2шт.

3

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

14шт.

4

4982514

CABLE TIE,188mm L

CABLE STRAP 370 mm lg.

4шт.

5

76072510

WIRE HARNESS

Ground Alternator

1шт.

6

10450990

CLAMP,26mm, Coat, 9mm Bolt Hole, P Type

26 mm dia.

7шт.

7

76193563

SENSOR

Speed

1шт.

8

16043031

BOLT,Hex, M8 x 12mm, Cl 10.9, Full Thd

10шт.

9

10450490

CLAMP,16mm, Coat, 9mm Bolt Hole, P Type

1шт.

10

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

4шт.

11

11103031

BOLT,Hex, M10 x 18, 10.9, Full Thd

1шт.

12

14496631

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.
