(3.471[01]) - PIPING - HYDRAULIC TILT

Запчасти Case 1850K (3.471[01]) - PIPING - HYDRAULIC TILT (07) - HYDRAULIC SYSTEM/FRAME

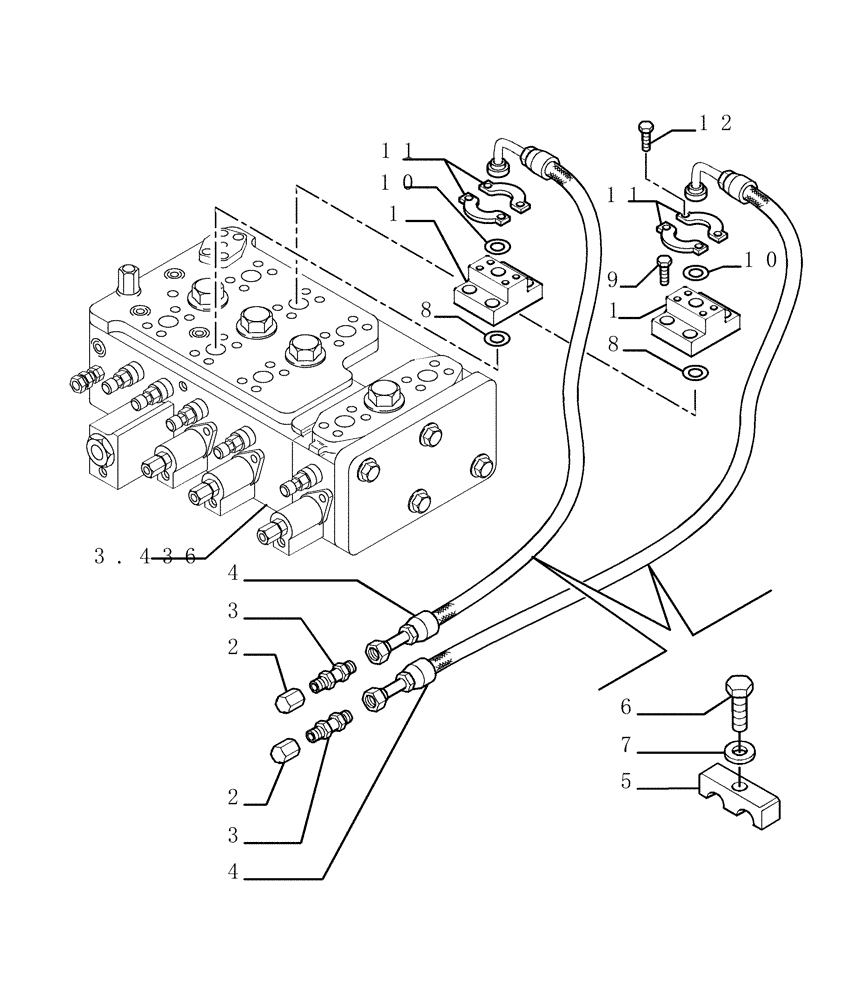

Схема запчастей Case 1850K - (3.471[01]) - PIPING - HYDRAULIC TILT (07) - HYDRAULIC SYSTEM/FRAME
12
11
5
11
3
3
3.436
8
9
10
1
4
2
1
8
6
2
7
4
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

76054747

ADAPTER

2шт.

2

78100135

PLUG,M12

2шт.

3

78100008

HYD CONNECTOR

2шт.

4

76071121

HYDRAULIC HOSE

2шт.

5

79084821

CLAMP

2шт.

6

16040831

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

7

12638631

WASHER,10.6mm ID x 18mm OD x 2mm Thk

2шт.

8

14463781

O-RING,0.139" Thk x 1.296" ID, -219, Cl 7, 75 Duro

In Alternative

2шт.

8

70924200

O-RING

M32.92 ID x 3.53 Thk, In Alternative

2шт.

9

14422031

HEX SOC SCREW,M12 x 1.75 x 30mm, Cl 10.9, Full Thd

8шт.

10

14462881

O-RING,18.64mm ID x 3.53" Width

In Alternative

2шт.

10

238-6210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

M18.84 ID x 3.53 Thk - In Alternative

2шт.

11

8297995

HALF-FLANGE

4шт.

12

14306431

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 10.9, Full Thd

8шт.
