(6.711[02]) - ELECTRICAL SYSTEM - ELECTRIC WIRING

Запчасти Case 1850K (6.711[02]) - ELECTRICAL SYSTEM - ELECTRIC WIRING Electrical System / Decals

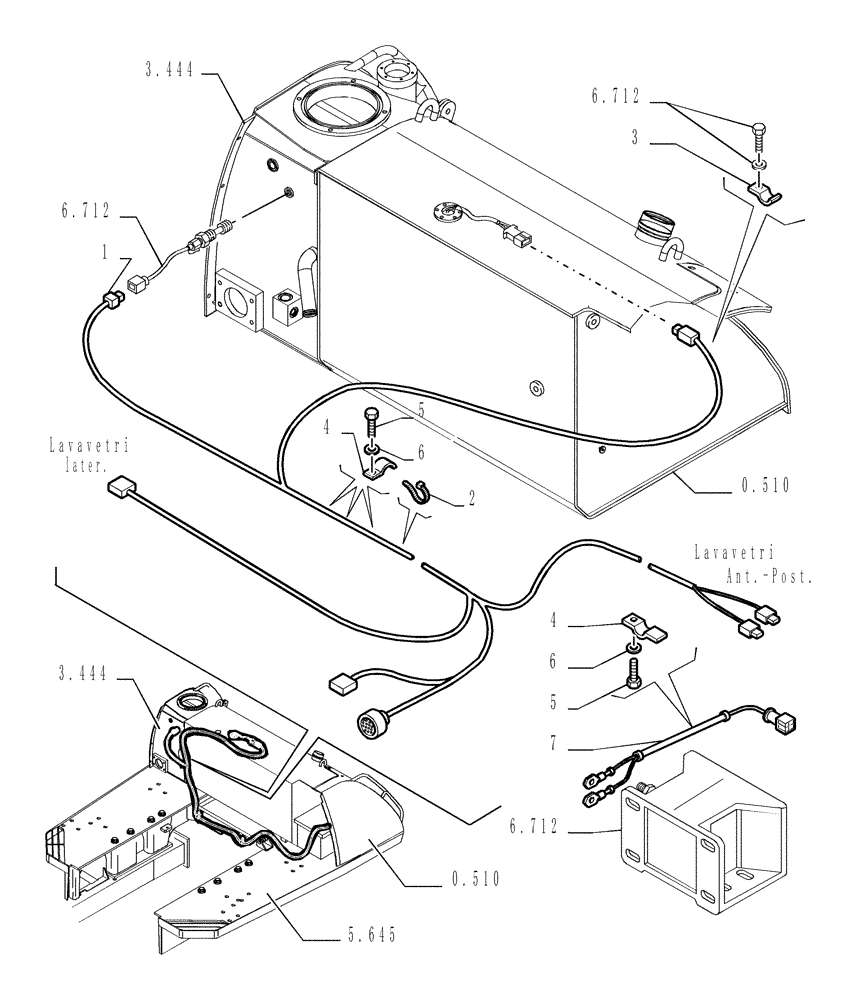

Схема запчастей Case 1850K - (6.711[02]) - ELECTRICAL SYSTEM - ELECTRIC WIRING Electrical System / Decals
2
3
later.
lavavetri
lavavetri
4
6
5
6
0.510
3.444
5.645
0.510
6.712
6.712
3.444
7
ant.-post.
1
6.712
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87389716

ELECTRIC CABLE

Rear

1шт.

2

4982514

CABLE TIE,188mm L

CABLE STRAP 370 mm lg.

1шт.

3

10117201

CLAMP

1шт.

4

10450290

CLAMP,12mm, Coat, 9mm Bolt Hole, P Type

12 mm dia.

1шт.

5

16043031

BOLT,Hex, M8 x 12mm, Cl 10.9, Full Thd

3шт.

6

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

7

76042318

WIRE HARNESS

Horn Back-Up

1шт.
