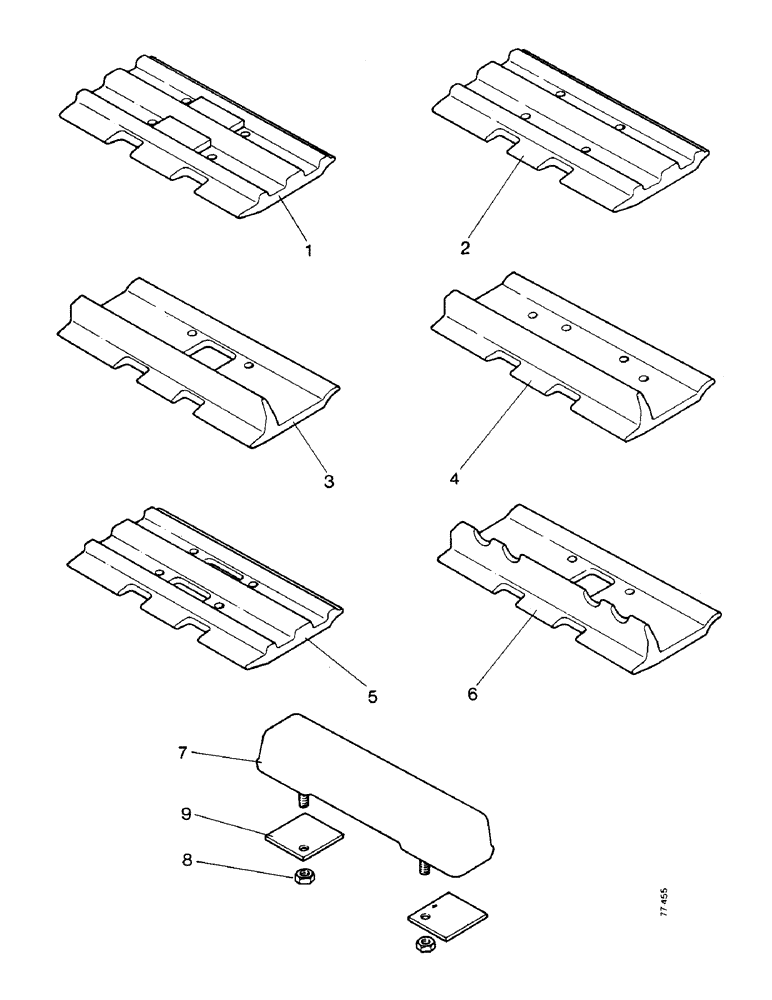

Запчасти Case 850 (F10-1) - TRACK SHOES, SEMI - GROUSER, MINING SPECIAL (04) - UNDERCARRIAGE

1

R25968

TRACK SHOE

SHOE - track 10 in, all models SEMI - GROUSER, CLOSED

78шт.

2

R25970

PLATE

SHOE - track 12 in, all models

78шт.

R25972

PLATE

SHOE - track 13 in, all models

78шт.

R25973

SHOE

- track 14 in offset, right hand, Loader models only

39шт.

R25974

SHOE

- track 14 in offset, left hand, Loader models only

39шт.

R25978

TRACK SHOE

SHOE - track 15 in, all models except Loader

78шт.

R25980

TRACK SHOE

SHOE - track 16 in, all models except Loader

78шт.

ref

Part No.

English

1шт.

3

R25943

PLATE

SHOE - track 12 in, all models except Loader, grouser open centre

78шт.

R25945

TRACK SHOE

SHOE - track 13 in, all models except Loader, grouser open centre

78шт.

R25947

SHOE

- track 14 in, all models except Loader, grouser open centre

78шт.

R25948

SHOE

- track 15 in, all models except Loader, grouser open centre

78шт.

R25950

TRACK SHOE

SHOE - track 16 in, all models except Loader, grouser open centre

78шт.

R25951

TRACK SHOE

SHOE - track 17 in, Drawbar models only, grouser open centre

78шт.

R25955

TRACK SHOE

SHOE - track 18 in, Drawbar models only, grouser open centre

78шт.

ref

Part No.

English

1шт.

4

R25928

TRACK SHOE

SHOE - track 12 in, all models except Loader, grouser closed

78шт.

R25929

TRACK SHOE

SHOE - track 13 in, all models except Loader, grouser closed

78шт.

R25931

TRACK SHOE

SHOE - track 14 in, all models except Loader, grouser closed

78шт.

R25932

TRACK SHOE

SHOE - track 15 in, all models except Loader, grouser closed

78шт.

R25934

TRACK SHOE

SHOE - track 16 in, all models except Loader, grouser closed

78шт.

R25935

TRACK SHOE

SHOE - track 17 in, Drawbar models only, grouser closed

78шт.

R25937

TRACK SHOE

SHOE - track 18 in, Drawbar models only, grouser closed

78шт.

R25938

TRACK SHOE

SHOE - track 20 in, Drawbar models only, grouser closed

78шт.

ref

Part No.

English

1шт.

5

R25988

SHOE - track 12 in, all models, semi grouser open centre

78шт.

R25990

TRACK SHOE

SHOE - track 13 in, all models, semi grouser open centre

78шт.

R25991

SHOE

- track 14 in offset, left hand, Loader models only, semi grouser open centre

39шт.

R25992

SHOE

- track 14 in offset, right hand, Loader models only, semi grouser open centre

39шт.

R25995

SHOE

- track 15 in, all models except Loader, semi grouser open centre

78шт.

R25998

PLATE

SHOE - track 16 in, all models except Loader, semi grouser open centre

78шт.

ref

Part No.

English

1шт.

6

R25958

TRACK SHOE

SHOE - track 14 in, all models except Loader, grouser ice

78шт.

R25959

TRACK SHOE

SHOE - track 15 in, all models except Loader, grouser ice

78шт.

R25961

ROLLER, TRACK

SHOE - track 16 in, all models except Loader, grouser ice

78шт.

R25962

PLATE

SHOE - track 17 in, Drawbar models only, grouser ice

78шт.

ref

Part No.

English

1шт.

R3551

KIT

RUBBER SHOE ASSEMBLY - 5 roller Dozer, use with R25931/2/4/5 shoes, track

1шт.

R3553

X

RUBBER SHOE ASSEMBLY - 6 roller Dozer, use with R25931/2/4/5 shoes, track

1шт.

7

70635

SHOE

- track, rubber

78шт.

8

131-168

LOCK NUT,1/2"-20, GA

NUT - special, rubber track shoe

156шт.

9

R21166

SPACER

- shoe, rubber track

156шт.
