(J23-1) - 4-IN-1 BUCKET OR RIPPER SECTION

Запчасти Case 850 (J23-1) - 4-IN-1 BUCKET OR RIPPER SECTION (06) - ELECTRICAL SYSTEMS

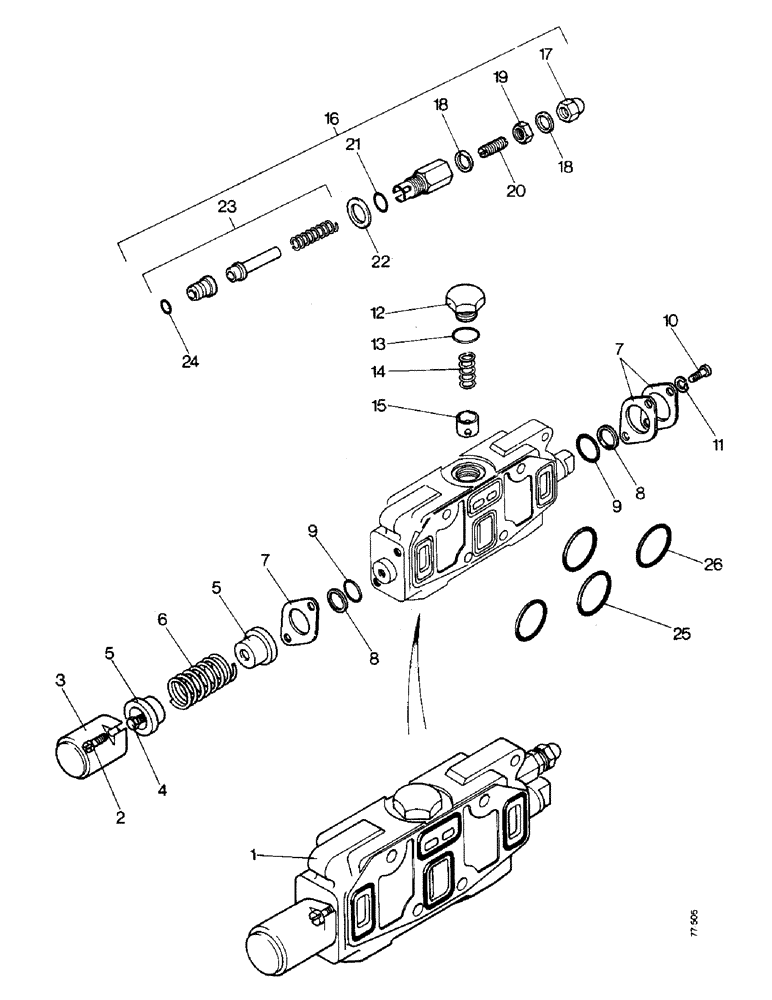

Схема запчастей Case 850 - (J23-1) - 4-IN-1 BUCKET OR RIPPER SECTION (06) - ELECTRICAL SYSTEMS
25
22
11
9
7
14
15
26
24
7
18
8
20
16
23
9
10
2
18
3
6
21
1
19
13
8
4
17
5
5
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D66221

X

4-IN-1 BUCKET OR RIPPER SECTION - Loader 3 or 4 spool, Dozer 4 spool

1шт.

2

71-512

SCREW,Slotted Fil Hd, 5/16"-18 x 3/4"

- 5/16 UNC x 3/4 in

2шт.

3

D32221

COVER

CAP - valve section

1шт.

4

D32128

BOLT (SPREADER)

BOLT - special

1шт.

5

D32130

GUIDE

- spring

2шт.

6

D66214

VALVE SPRING

SPRING - centering

1шт.

7

R20556

PLATE - retaining

3шт.

8

D66216

RING

- back up

2шт.

9

D66215

SEAL

- wiper

2шт.

10

71-58

SCREW - 5/16 UNC x 1/2 in

2шт.

11

92-5

LOCK WASHER,5/16"

2шт.

12

39007

CAP

- check valve

1шт.

13

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

'O'RING

1шт.

14

R15308

VALVE SPRING

SPRING - check valve

1шт.

15

D45694

SPOOL

POPPET - check valve

1шт.

16

D42866

VALVE

CARTRIDGE - secondary relief

1шт.

17

129-526

CROWN NUT,Low, 3/8" - 24

- acorn, 3/8 UNF

1шт.

18

23150

WASHER

GASKET - copper

2шт.

19

25-156

JAM NUT,Jam, 3/8"-24, G5

- lock, 3/8 UNF

1шт.

20

D38814

ADJUSTMENT SCREW,3/8" - 24

SETSCREW - special

1шт.

21

D26872

O-RING

'O'RING

1шт.

22

D31450

WASHER

- gasket

1шт.

23

D42865

VALVE POPPET

KIT - seat and poppet

1шт.

24

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk

1шт.

25

L32985

GASKET

- quad ring

1шт.

26

L35522

O-RING

SEAL - quad ring

3шт.
