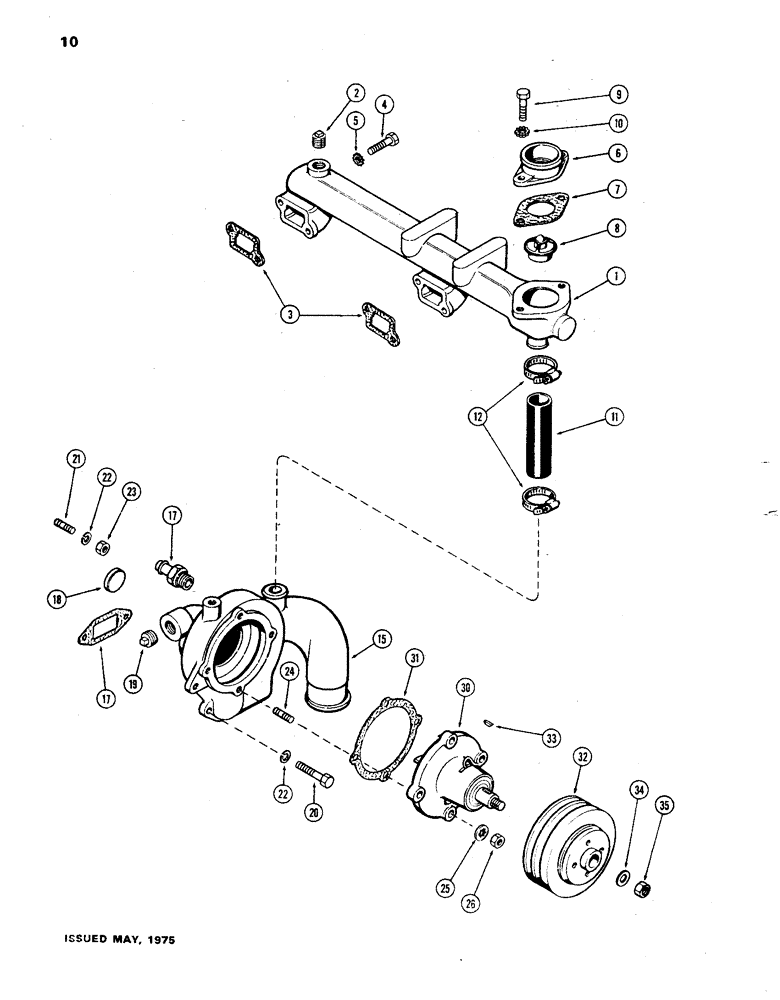

Запчасти Case 850 (010) - WATER MANIFOLD AND THERMOSTAT, (301 BD) DIESEL ENGINE (01) - ENGINE

1

A58735

MANIFOLD

- water

1шт.

2

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - (1/2" P.T., sq. hd.)

1шт.

3

A58637

MANIFOLD GASKET

- water manifold

2шт.

4

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- (3/8 x 1-1/2" N.C. hex.)

2шт.

4

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

5

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

4шт.

6

A58736

HOUSING

- thermostat

1шт.

7

G46907

GASKET

- thermostat housing

1шт.

8

A57641

THERMOSTAT

1шт.

9

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

10

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

11

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

- manifold to pump (1-1/4" I.D. x 5-/16") (Replaced A60449)

1шт.

12

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16" to 1-3/4")

2шт.

15

A138498

HOUSING

BODY ASSY. - water pump (for 1/2" P.T. connector) (See ref. 17), Includes: Ref. 16

1шт.

16

A58568

PLUG,Cup, 1 3/8", Stainless

- (1-3/8" cup type) water pump

1шт.

15

A59220

BODY

ASSY. - water pump (for 3/4" P.T. connector) (See ref. 17), Includes: Ref. 16

1шт.

16

A58568

PLUG,Cup, 1 3/8", Stainless

- (1-3/8" cup type), water pump

1шт.

17

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - hose (1/2" P.T.) (Used w/A138498 body), water pump

1шт.

17

217-381

FITTING,5/8" Hose Barb x 3/4" Male NPTF

CONNECTOR - hose (3/4" P.T.) (Used w/A59220 body), water pump

1шт.

18

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - (3/4" P.T., sq. hd), water pump

1шт.

19

A58649

GASKET

- body to block, water pump

1шт.

20

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Water pump Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

21

G11204

STUD

- pump to body (3/8" N.C. x 1-1/2"), water

2шт.

22

92-6

LOCK WASHER,3/8"

water pump 3/8"

4шт.

23

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex, water pump

2шт.

24

A62234

STUD

- pump to body (3/8" N.C. x 1-5/16"), water

4шт.

25

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, , Water pump Int Tooth, 3/8"

4шт.

26

25-146

JAM NUT,Jam, 3/8"-16, G5

- (3/8" N.C. hex., jam), water pump

4шт.

30

A61266

PUMP

ASSY. - water

1шт.

31

A58646

GASKET

- pump to body, water

1шт.

32

A60504

PULLEY

- fan drive, water pump

1шт.

33

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

Pulley to pump shaft, water #9, 3/16" x 3/4", HT

1шт.

34

A58651

WASHER

- retaining (17/32 x 1-1/16 x 3/32"), water pump

1шт.

35

131-1106

LOCK NUT,1/2"-20, GB

NUT, LOCK, , Water pump 1/2"-20, GB

1шт.
