(324) - G32689 AND G32690 LOADER LIFT CYLINDERS, GLAND HAS SOLID OUTER ROD WIPER - NO I.D. RING

Запчасти Case 850 (324) - G32689 AND G32690 LOADER LIFT CYLINDERS, GLAND HAS SOLID OUTER ROD WIPER - NO I.D. RING (07) - HYDRAULIC SYSTEM

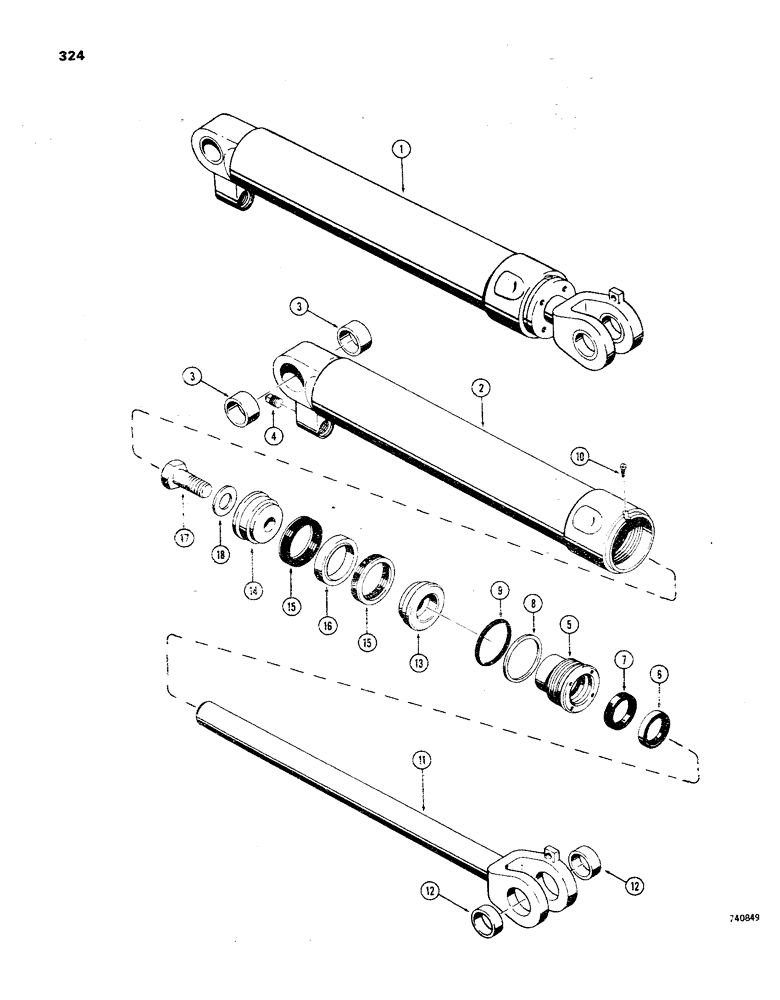

Схема запчастей Case 850 - (324) - G32689 AND G32690 LOADER LIFT CYLINDERS, GLAND HAS SOLID OUTER ROD WIPER - NO I.D. RING (07) - HYDRAULIC SYSTEM
9
16
12
11
3
17
18
5
15
12
1
6
3
2
15
8
13
4
7
14
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

G32690

CYLINDER

- lift, R.H. (4-1/2" dia. x 30-1/8" stroke), Includes: Ref. 2 - 18

1шт.

1

NLS

NO LONGER SERVICED

CYLINDER - lift, L.H. (4-1/2" dia. x 30-1/8" stroke), Includes: Ref. 2 - 18

1шт.

2

G32876

TUBE

ASSY. - cylinder, right hand, Includes: Ref. 3 and 4

1шт.

2

G32875

TUBE

ASSY. - cylinder, left hand, Includes: Ref. 3 and 4

1шт.

3

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- tube

2шт.

4

221-844

PLUG,Hex Soc, 1/2"-14

- tube (1/2" P.T., sq. hd.)

1шт.

G32775

GLAND

ASSY. - w/bushing, Includes: Ref. 5 - 9

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod, outer (2-1/4 x 2-3/4 x 5/16")

1шт.

Part of SEAL KIT, P/N G32285

1шт.

7

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

- piston rod (2-1/4 x 2-3/4 x 7/16")

1шт.

Part of SEAL KIT, P/N G32285

1шт.

8

G32284

BACK-UP RING

- gland "O" ring back-up

1шт.

Part of SEAL KIT, P/N G32285

1шт.

9

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - gland (4-1/2 x 4-3/4 x 1/8")

1шт.

Part of SEAL KIT, P/N G32285

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

11

G34122

ROD

ASSY. - piston, right hand (2-1/4" dia.), Includes: Ref. 12

1шт.

11

G34123

ROD

ASSY. - piston, left hand (2-1/4' dia.), Includes: Ref. 12

1шт.

12

D33678

BUSHING,51.02mm ID x 63.5mm OD x 22.3mm L

- piston rod

2шт.

13

D46425

PISTON

- split (rod end)

1шт.

14

D46931

PISTON

- split (bolt end)

1шт.

15

D47205

PACKING

ASSY. - piston , "V" type

2шт.

Part of SEAL KIT, P/N G32285

1шт.

16

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - center bearing

1шт.

17

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- Hex, 1-1/4"-12 NF x 2-3/4", G8, Piston

1шт.

18

G32351

WASHER

- piston bolt (1-3/8 x 2-1/2 x 1/8")

1шт.

G32285

SEAL

KIT - cylinder repair, Includes: Ref. 6 - 9 and 15

1шт.
