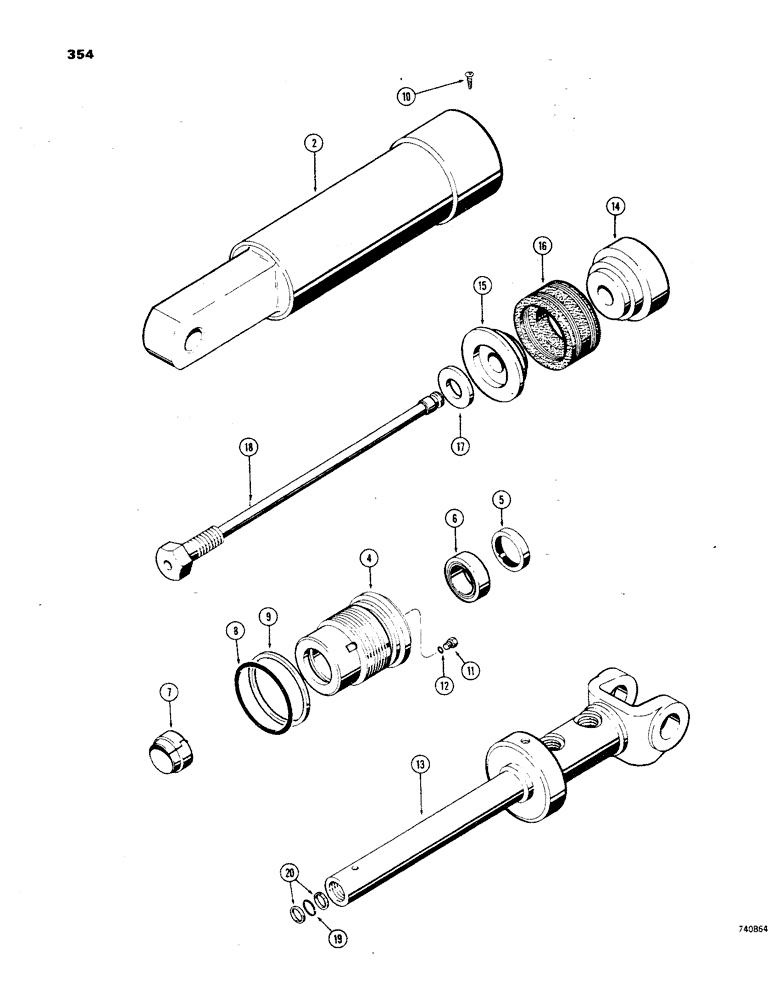

Запчасти Case 850 (354) - G32623 TILT CYLINDER - ANGLE TILT DOZER, GLAND HAS SOLID OUTER ROD WIPER - NO I.D. RING (07) - HYDRAULIC SYSTEM

1

G32623

HYDRAULIC CYLINDER

CYLINDER - tilt, 3-1/2" dia. x 6' stroke (Not shown), Includes: Ref. 2 - 20

2шт.

2

D46827

CYLINDER

TUBE - cylinder

1шт.

G32739

GLAND

ASSY., Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - rod, outer (1-3/4 x 2-1/4 x 5/16")

1шт.

Part of SEAL KIT, P/N G32827

1шт.

6

D36970

CUP

SEAL - piston rod (1-3/4 x 2-1/4 x 13/32")

1шт.

Part of SEAL KIT, P/N G32827

1шт.

7

D27432

SHIM

- rod, inner

1шт.

Part of SEAL KIT, P/N G32827

1шт.

8

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland (3-1/2 x 3-3/4 x 1/8")

1шт.

Part of SEAL KIT, P/N G32827

1шт.

9

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- "O" ring back-up

1шт.

Part of SEAL KIT, P/N G32827

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

11

218-5151

PLUG,Hex Hd, 5/16"-24 ORB

ASSY. - bleeder

1шт.

12

218-5001

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

2-1, .239" ID x .064" Thk

1шт.

13

D42520

PISTON ROD

ROD - piston (1-3/4" dia.)

1шт.

14

D42528

PISTON

- split (rod end)

1шт.

15

D28367

PISTON

- split (bolt end)

1шт.

16

G33237

PACKING

ASSY. - piston (Replaces D36963)

1шт.

Part of SEAL KIT, P/N G32827

1шт.

17

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- (1-7/64 x 1-7/8 x 9/64")

1шт.

18

D42525

TUBE

- piston rod (inner) & piston ret.

1шт.

19

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING - tube (5/8 x 13/16 x 3/32")

1шт.

20

G32626

RING

- "O" ring backup

2шт.

G32627

CYLINDER

SEAL KIT - cylinder repair, Includes: Ref. 5 - 9 and 16

1шт.
