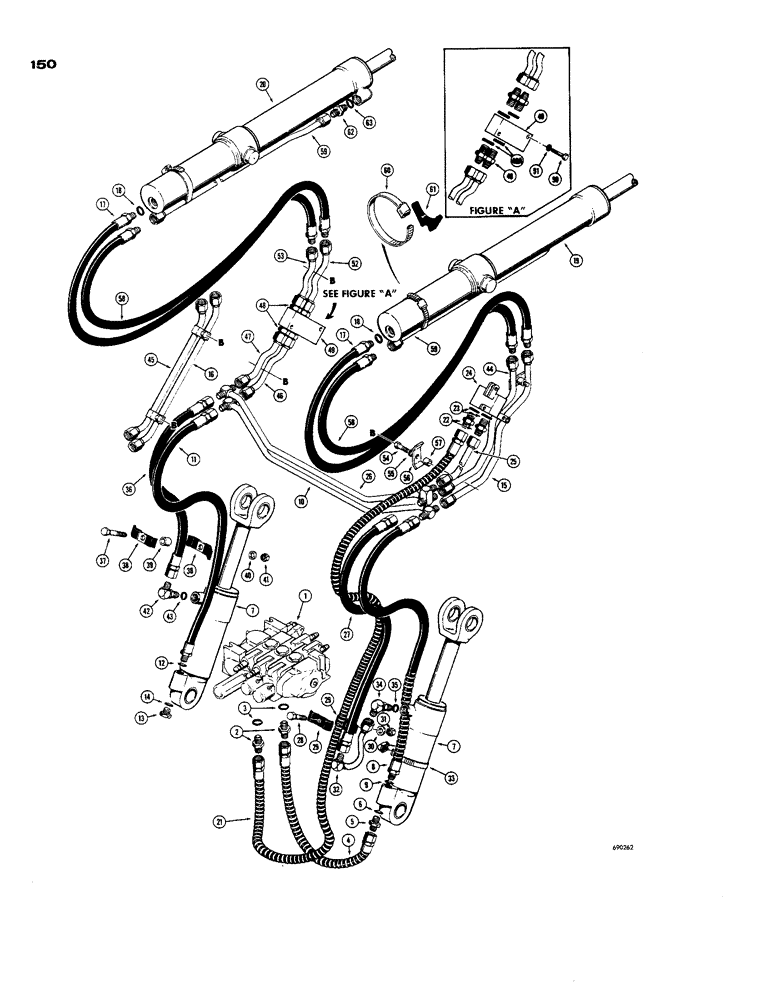

Запчасти Case 850 (150) - LOADER DUMP AND HYDRA-LEVELING HYDRAULICS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - hydraulic, loader control (See Figure 178 and 180 for proper valve)

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - tube, straight

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

4

D43612

HOSE

- R.H. leveling cylinder, eye end (31" long)

1шт.

5

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- tube, straight 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

7

REF

INSTRUCTION

CYLINDER - Hydra-Leveling (See Figure 188 for cylinders)

2шт.

8

D39806

HOSE

- R.H. leveling cylinder, eye end (37-1/2" long)

1шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

10

D39807

TUBE

- crossover, lower

1шт.

11

D40723

HOSE

- L.H. leveling cylinder, eye end (37-1/2" long)

1шт.

12

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

13

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Hydraulic Hex Hd, 1 1/16"-12 ORB

1шт.

14

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

15

D41347

TUBE

- crossover to closed end R.H. dump cylinder

1шт.

16

D39809

TUBE - crossover to closed end L.H. dump cylinder (Used before tractor serial no. 7073148)

1шт.

17

D39801

HOSE

- tube to closed end dump cylinder (33-1/2" long)

2шт.

18

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

19

REF

INSTRUCTION

CYLINDER - dump, R.H. (See Figure 186 for cylinders)

1шт.

20

REF

INSTRUCTION

CYLINDER - dump, L.H. (See Figure 186 for cylinders)

1шт.

21

D42709

HOSE

- loader control valve to hydraulic lock valve (90" long)

1шт.

22

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- tube, straight 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

2шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

24

D41050

VALVE

- hydraulic lock (See parts list Figure 146)

1шт.

25

D42637

TUBE

- lock valve to upper crossover

1шт.

26

D45329

TUBE

- crossover, upper

1шт.

27

D42969

HOSE

- R.H. leveling cylinder, rod end (36" long)

1шт.

Another hose used (not a sub) is P/N D48432.

1шт.

28

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

1шт.

29

R15257

CLAMP

- hose

2шт.

30

195-21

WASHER,5/16"

- plain () 5/16"

1шт.

31

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.

32

D43132

TUBE

- R.H. levleing cylinder, rod end, not used with D48432

1шт.

33

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - D43132 tube, not used with D48432

1шт.

34

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

adjustable (D43132 tube) not used with D48432 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

35

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

36

D42401

HOSE

- upper crossover to rod end port L.H. Hydra-Leveling CYLINDER (27-1/2" LONG)

1шт.

37

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

38

D33316

CLAMP

- hose

2шт.

39

D33554

BUSHING

SPACER - clamp

1шт.

40

195-21

WASHER,5/16"

- plain () 5/16"

1шт.

41

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.

42

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

adjustable 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

43

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

44

D42693

TUBE

- upper crossover to rod end port R.H. dump cylinder

1шт.

45

D39811

TUBE

- upper crossover to rod end port L.H. dump cylinder (Used before tractor serial no. 7073148)

1шт.

46

D46848

TUBE

- lower manifold to relief valve, L.H. side (Used with D46850 valve)

1шт.

47

D46920

TUBE

- upper manifold to relief valve, L.H. side (Used with D46850 valve)

1шт.

48

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter - straight (Used with D46850 valve) 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

4шт.

48a

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

49

D46850

VALVE

- relief (Used on tractor serial no. 7073148 and after) Parts list Figure 203A (1)

1шт.

50

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

(Used with D46850 valve) Hex, 3/8"-16 x 2", G5

2шт.

51

92-6

LOCK WASHER,3/8"

used with D46850 valve 3/8"

2шт.

52

D46844

TUBE

- lower, relief valve to dump cylinder (Closed end) Used with D46850 valve

1шт.

53

D46846

TUBE

- upper, relief valve to dump cylinder (Rod end) Used with D46850 valve

1шт.

54

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16"-18 NC x 1-1/2"

4шт.

55

92-5

LOCK WASHER,5/16"

4шт.

56

D33316

CLAMP

- tube

4шт.

57

D36040

BUSHING

SPACER - clamp

4шт.

58

D39802

TUBE

HOSE - tube to rod end port, dump cylnder (32-1/2" long)

2шт.

59

D39813

TUBE

- hose to rod end port, dump cylinder

2шт.

60

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube

2шт.

61

D38648

BLOCK

SADDLE -, Serial Range: tube-cylinder

2шт.

62

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - tube, straight

2шт.

63

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.
