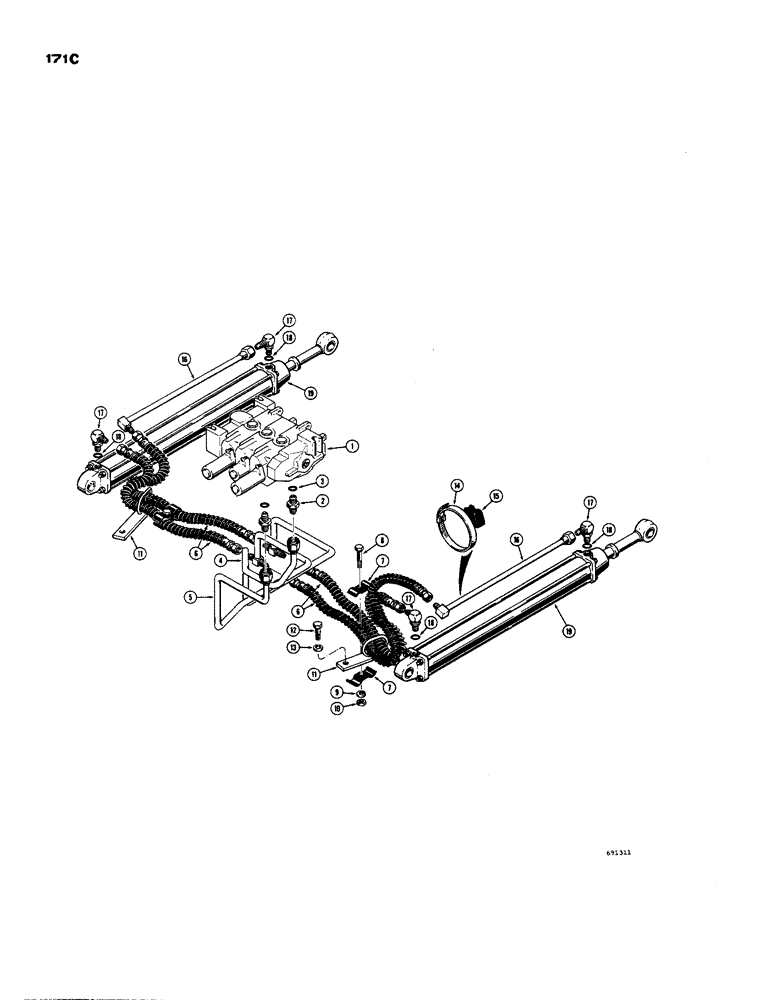

Запчасти Case 850 (171C) - POWER ANGLE-TILT DOZER HYDRAULICS, (ANGLING CIRCUIT) (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - equipment control (See Figures 182 and 183A for proper valve)

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Seal

1шт.

4

D45914

PIPE

TUBE -, Serial Range: valve-cylinders

1шт.

5

D45916

PIPE

TUBE -, Serial Range: valve-cylinders

1шт.

6

D47246

HOSE

Valve to cylinders (51" long)

4шт.

7

R15257

CLAMP

Hose

2шт.

8

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

9

92-6

LOCK WASHER,3/8"

2шт.

10

25-106

NUT,3/8"-16, G5

Hex

2шт.

11

D40386

SPARE PART Hose

2шт.

12

13-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

2шт.

13

92-10

LOCK WASHER,5/8"

2шт.

14

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

Tube

2шт.

15

D38648

BLOCK

SADDLE - rubber

2шт.

16

D47247

TUBE

, Serial Range: Valve-cylinder

2шт.

17

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Male

4шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL

1шт.

19

R19345

CYLINDER

Angle (Parts list Figure 193A)

2шт.
