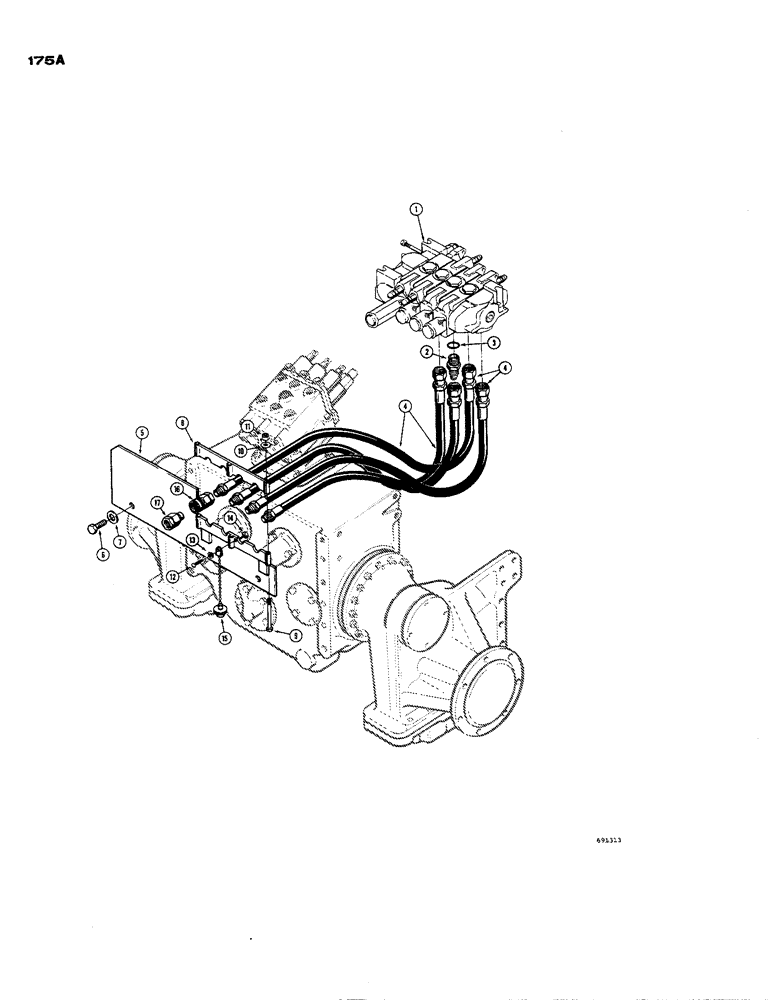

Запчасти Case 850 (175A) - DUAL PULL BEHIND HYDRAULICS (07) - HYDRAULIC SYSTEM

1

D39780

VALVE - equipment control (See Figure 178 thru 183A for proper valve)

1шт.

2

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - tube, straight

4шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

4

D41480

HOSE ASSY.

HOSE - to rear equipment (35" long)

4шт.

5

D41476

SUPPORT - hose

1шт.

6

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

2шт.

7

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

2шт.

8

D39533

CLAMP

- hose

1шт.

9

13-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

HHCS - 5/16" - 18 NC x 3-3/4"

3шт.

10

195-21

WASHER,5/16"

- flat () 5/16"

6шт.

11

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

3шт.

12

169-80

SCREW,Sl Fil Hd, #8 - 32 x 3/4"

- mach. (#8 - NC x 3/4")

1шт.

13

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

14

129-6

NUT,#8-32

1шт.

15

D39924

PLUG

CAP - dust, coupling

4шт.

16

D31617

COUPLING, BREAK AWAY

COUPLING - break away, female (Parts list Figure 203C)

4шт.

17

D31618

COUPLING, BREAK AWAY

COUPLING - break away, male (Parts list Figure 203C)

4шт.
