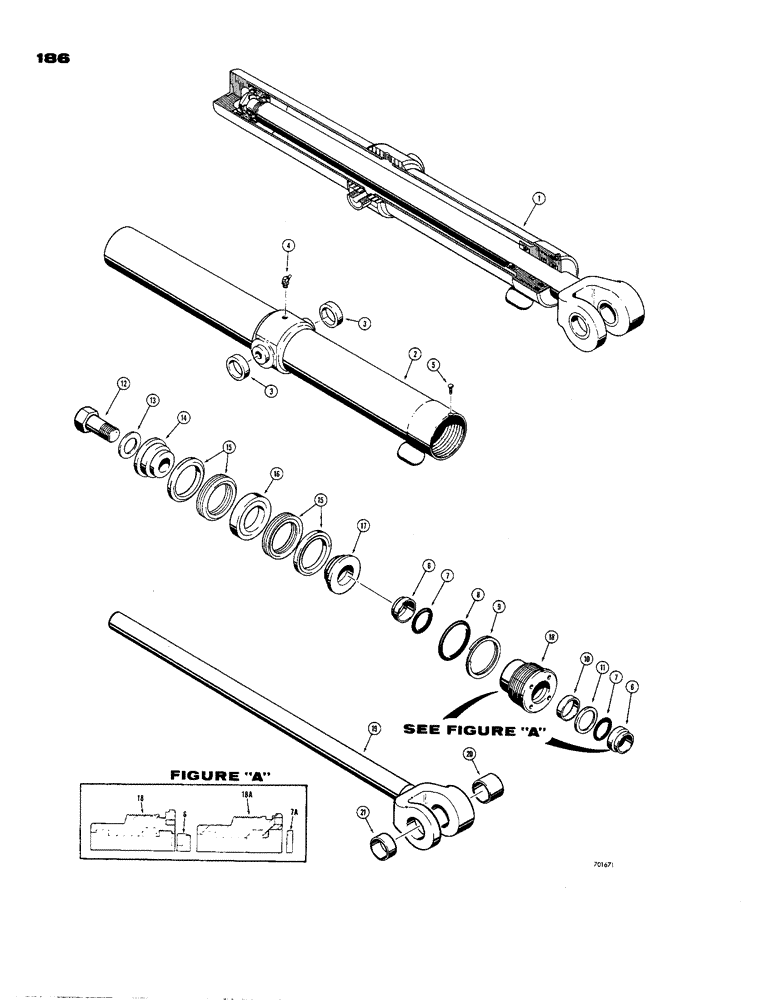

Запчасти Case 850 (186) - LOADER DUMP CYLINDERS, USES SPLIT SNAP IN OUTER ROD WIPER (07) - HYDRAULIC SYSTEM

1

D39694

CYLINDER BLOCK

CYLINDER - dump (R.H.) 3-1/2" I.D. x 28-3/4" stroke

1шт.

These cylinders use D37356, D41399 and D42873 gland packing kits. For kit components, see Figure 224.

1шт.

D39695

CYLINDER ASSY.

CYLINDER - dump (L.H.) 3-1/2" I.D. x 28-3/4" stroke

1шт.

These cylinders use D37356, D41399 and D42873 gland packing kits. For kit components, see Figure 224.

1шт.

2

D39692

TUBE

- cylinder, R.H. (Not illustrated)

1шт.

D39693

TUBE

- cylinder, L.H.

1шт.

3

D31511

BUSHING

- tube

2шт.

4

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45deg. (1/8" NPT)

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

6

D27432

SHIM

- rod

2шт.

7

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - O-ring, wiper (If used)

2шт.

8

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - O-ring, gland

1шт.

9

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal

1шт.

10

D36970

CUP

SEAL - rod

1шт.

11

D28499

RING

- backup, rod seal

1шт.

12

D32861

BOLT

- special

1шт.

13

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- special, bolt

1шт.

14

D28367

PISTON

- split, bolt end

1шт.

15

D42808

PACKAGE,SERVICE

PACKING - piston, chevron

2шт.

16

D43545

RING

- packing, piston

1шт.

17

D28369

PISTON

- split, yoke end

1шт.

18

D45069

GLAND

- packing

1шт.

19

D43387

ROD

- piston (1-3/4" dia.)

1шт.

20

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- rod, 1-1/4" long

1шт.

21

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- rod, 3/4" long

1шт.

1

G32577

CYLINDER

- dump (R.H.) 3-1/2" I.D. x 28-3/4" stroke

1шт.

These cylinders use G32228 cylinder packing kit. For kit components, see Figure 225.

1шт.

1

G32578

CYLINDER

- dump (L.H.) 3-1/2" I.D. x 28-3/4" stroke, uses press in outer rod wiper

1шт.

These cylinders use G32228 cylinder packing kit. For kit components, see Figure 225.

1шт.

2

D39692

TUBE

- cylinder, R.H. (Not illustrated), uses press in outer rod wiper

1шт.

2

D39693

TUBE

- cylinder, L.H., uses press in outer rod wiper

1шт.

3

D31511

BUSHING

- tube, uses press in outer rod wiper

2шт.

4

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45deg. (1/8" NPT), uses press in outer rod wiper

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping #8 - 32 NC x 1/4", uses press in outer rod wiper

1шт.

6

D27432

SHIM

- rod, inner, uses press in outer

1шт.

Included in G32743 gland assembly.

1шт.

7

NOT REQUIRED

1шт.

7a

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - rod, outer, uses press in wiper

1шт.

Included in G32743 gland assembly.

1шт.

8

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - O-ring, gland, uses press in outer rod wiper

1шт.

Included in G32743 gland assembly.

1шт.

9

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup, gland seal, uses press in outer rod wiper

1шт.

Included in G32743 gland assembly.

1шт.

10

36970

PRESSURE PIPE

SEAL - uses press in outer rod wiper

1шт.

Included in G32743 gland assembly.

1шт.

11

NOT REQUIRED

1шт.

12

D36861

BOLT - special, uses press in outer rod wiper

1шт.

13

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- special, bolt, uses press in outer rod wiper

1шт.

14

D28367

PISTON

PISON - split, bolt end, uses press in outer rod wiper

1шт.

15

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

- piston, chevron, uses press in outer rod wiper

2шт.

16

D47208

RING

- packing, piston, uses press in outer rod wiper

1шт.

17

D28369

PISTON

- split, yoke end, uses press in outer rod wiper

1шт.

18a

NSS

NOT SOLD SEPARAT

GLAND - packing (use G32743 gland assembly for service), uses press in outer rod wiper

1шт.

Included in G32743 gland assembly.

1шт.

19

D43387

ROD

- piston (1-3/4" dia.), uses press in outer rod wiper

1шт.

20

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- rod, 1-1/4" long, uses press in outer rod wiper

1шт.

21

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- rod, 3/4" long, uses press in outer rod wiper

1шт.
