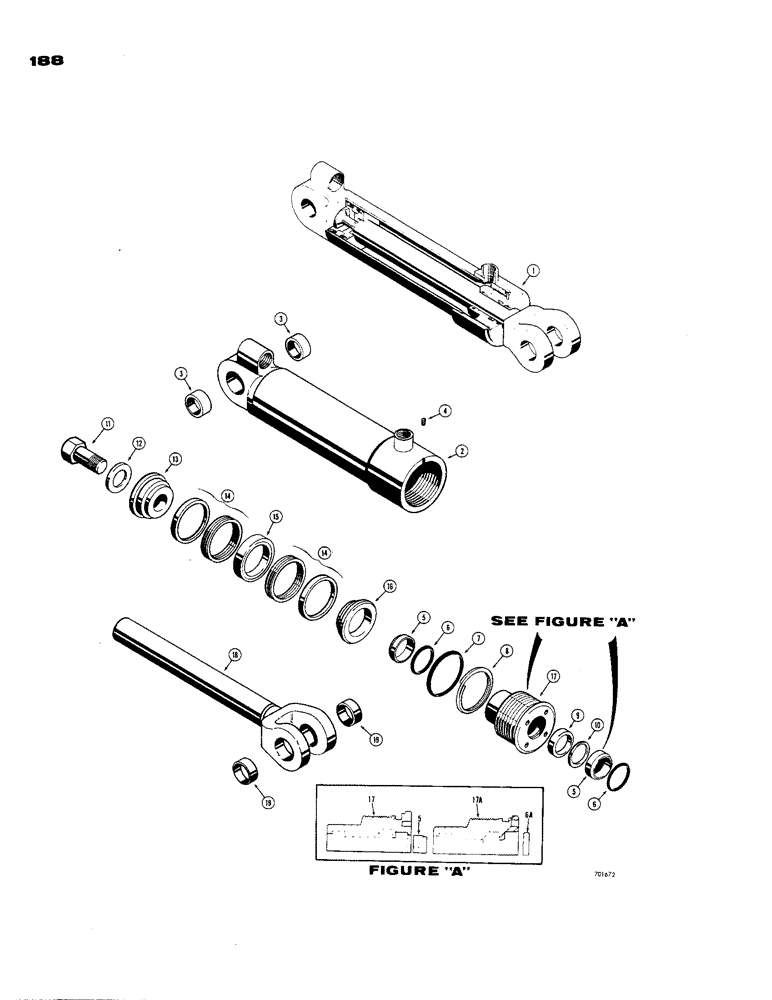

Запчасти Case 850 (188) - LOADER HYDRA-LEVELING CYLINDERS, USES SPLIT SNAP IN OUTER ROD WIPER (07) - HYDRAULIC SYSTEM

1

D39748

CYLINDER ASSY.

CYLINDER - hydra-leveling (4" I.D. x 7-1/2" stroke)

2шт.

2

D39747

BODY

TUBE - cylinder

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube

2шт.

4

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

5

D27380

SCRAPER RING

WIPER - rod

2шт.

6

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - "O"ring, wiper (If used)

2шт.

7

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O"ring, gland

1шт.

8

D27382

RING

- backup, gland seal

1шт.

9

D36971

RING

SEAL - rod

1шт.

10

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- backup, rod seal

1шт.

11

D31642

BOLT

- special

1шт.

12

G32351

WASHER

- special, bolt

1шт.

13

D46930

PISTON

- split, bolt end

1шт.

14

D43112

PACKING

- piston, chevron

2шт.

15

D43113

PACKAGE

RING - bronze, piston packing

1шт.

16

D46424

PISTON

- split, yoke end

1шт.

17

D45071

GLAND

- packing

1шт.

18

D39742

ROD

- piston (2" dia.)

1шт.

19

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- rod

2шт.

1

G32579

CYLINDER

- hydra-leveling (4" I.D. x 7-1/2" stroke), uses press in outer rod wiper

2шт.

2

D39747

BODY

TUBE - cylinder, uses press in outer rod wiper

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube, uses press in outer rod wiper

2шт.

4

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", uses press in outer rod wiper

1шт.

5

D27380

SCRAPER RING

WIPER - rod, inner, uses press in outer

1шт.

6

NOT REQUIRED

1шт.

6a

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - rod, outer, uses press-in wiper

1шт.

7

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O"ring, gland, uses press in outer rod wiper

1шт.

8

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland seal, Uses press in outer rod wiper

1шт.

9

D36971

RING

SEAL - uses press in outer rod wiper

1шт.

10

NOT REQUIRED

1шт.

11

D31642

BOLT

- special, uses press in outer rod wiper

1шт.

12

G32351

WASHER

- special, bolt, uses press in outer rod wiper

1шт.

13

D28370

PISTON

- split, bolt end, uses press in outer rod wiper

1шт.

14

D47204

PACKING,89.15mm ID x 100.86mm OD

- piston, chevron, uses press in outer rod wiper

2шт.

15

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - packing, piston, uses press in outer rod wiper

1шт.

16

D28371

PISTON

- split, yoke end, uses press in outer rod wiper

1шт.

17a

G32113

GLAND

- packing, uses press in outer rod wiper

1шт.

18

D39742

ROD

- piston (2" dia.), uses press in outer rod wiper

1шт.

19

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- uses press in outer rod wiper

2шт.
