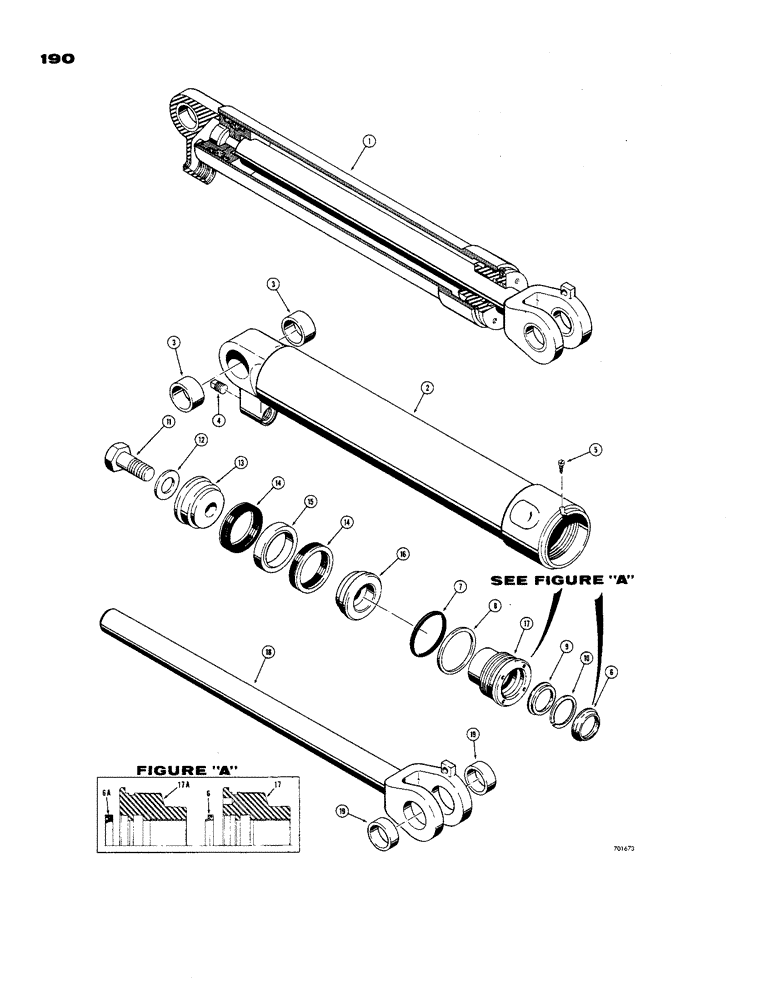

Запчасти Case 850 (190) - LOADER LIFT CYLINDERS (07) - HYDRAULIC SYSTEM

1

D43579

CYLINDER

- lift, L.H. (4-1/2" I.D. x 30-1/8" stroke) Not illustrated (When stock is exhausted, use D49527 cylinder) Uses D39360 outer rod wiper

1шт.

1

D49527

CYLINDER ASSY.

CYLINDER - lift, L.H. (4-1/2" I.D. x 30-1/8" stroke) Not illustrated (Uses D95145 outer rod wiper and D39539 rings)

1шт.

1

NLS

NO LONGER SERVICED

- lift, L.H. (4-1/2" I.D. x 30-1/8") Not illustrated (Uses D95145 outer rod wiper)

1шт.

1

D43580

CYLINDER - lift, R.H. (4-1/2" I.D. x 30-1/8" stroke) When stock is exhausted, use D49526 cylinder (Uses D39360 outer rod wiper)

1шт.

1

D49526

CYLINDER

- lift, R.H. (4-1/2" I.D. x 30-1/8" stroke) Uses D95145 outer rod wiper and D39539 rings

1шт.

1

G32690

CYLINDER

- lift, R.H. (4-1/2" I.D. x 30-1/8" stroke) Uses D95145 outer rod wiper

1шт.

2

G32876

TUBE

- cylinder, R.H.

1шт.

2

G32875

TUBE

- cylinder, L.H. (Not illustrated)

1шт.

3

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- tube

2шт.

4

221-844

PLUG,Hex Soc, 1/2"-14

- pipe, square socket head (1/2" NPT)

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

6

D39360

WIPER

- rod, D39369 gland (Step type)

1шт.

6a

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - rod, D49502 gland ("U" type)

1шт.

7

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

SEAL - "O"ring, gland

1шт.

8

D42452

RING

- backup, gland seal (Split)

1шт.

8

G32284

BACK-UP RING

- backup, gland seal (Solid)

1шт.

9

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

SEAL - rod

1шт.

10

D39539

RING

- backup, rod seal

1шт.

11

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- 2-3/4" - 12 NF x 1-1/4"

1шт.

12

G32351

WASHER

- special, bolt

1шт.

13

D46931

PISTON

- split, bolt end

1шт.

14

D47205

PACKING

- piston, chevron

2шт.

15

D42474

PACKAGE, RINGS

RING - bronze, piston packing (When stock is exhausted, use D47210 ring for service)

1шт.

15

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - packing, piston

1шт.

16

D46425

PISTON

- split, rod end

1шт.

17

D39369

GLAND

- packing, D43579 and D43580 cylinders (When stock is exhausted use D49502 gland and D95145 wiper)

1шт.

17a

D49502

GLAND

- packing, D49526, D49527, G32689 and G32690 cylinders

1шт.

18

D41471

PISTON ROD

ROD - piston, R.H. (2-1/4" dia.)

1шт.

18

D39674

PISTON ROD

ROD - piston, L.H. (2-1/4" dia.) Not illustrated

1шт.

19

F33678

BUSHING - rod

2шт.
