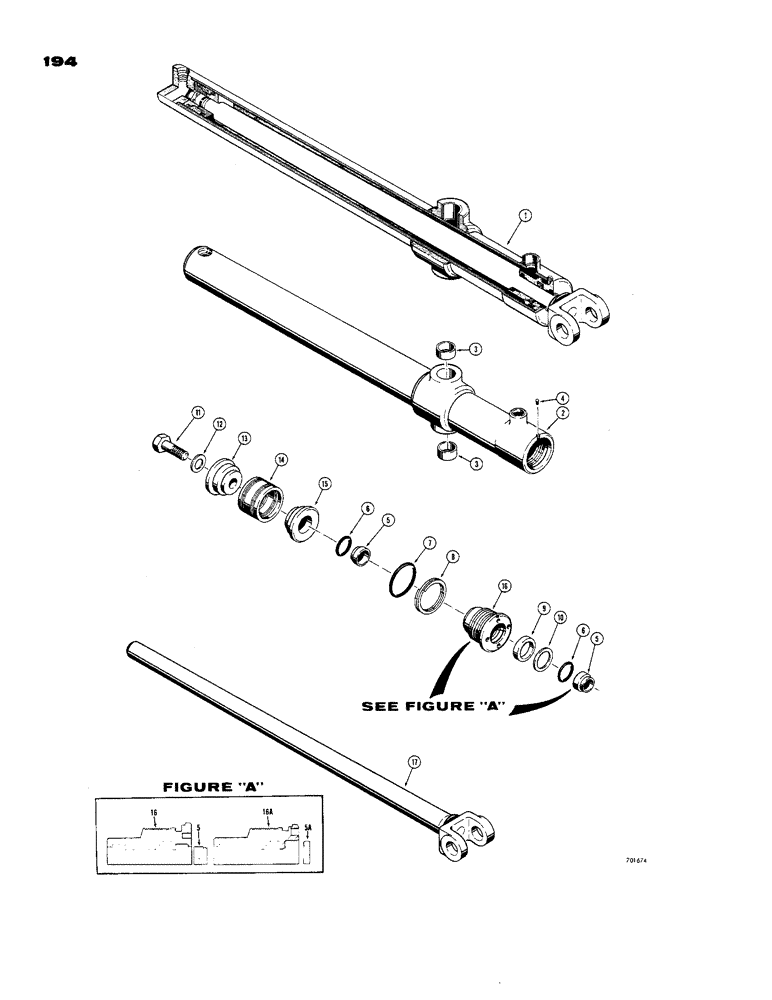

Запчасти Case 850 (194) - DOZER LIFT CYLINDERS, USES SPLIT SNAP IN OUTER ROD WIPER (07) - HYDRAULIC SYSTEM

1

D39582

NO LONGER SERVICED

CYLINDER - lift, Power Angling Dozer (3" I.D. x 31" stroke)

2шт.

1

D39585

CYLINDER - lift, Power Tilt Dozer (3" I.D. x 31" stroke)

2шт.

1

D48058

CYLINDER ASSY.

CYLINDER - lift, Power Angle-Tilt Dozer (3" I.D. x 31" stroke)

2шт.

2

D39755

BODY

TUBE - cylinder (Power angling dozer only)

1шт.

2

D39756

TUBE - cylinder (Power tilt dozer only)

1шт.

2

D48059

TUBE

- cylinder (Power angle-tilt dozer only)

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- D39755, D39756, and D48059 tubes

2шт.

4

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

5

D27706

WIPER SEAL

WIPER - rod

2шт.

6

D27878

O-RING,1.609" ID x 1.887" OD

SEAL - "O"ring, wiper (If used)

2шт.

7

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

SEAL - "O"ring, gland

1шт.

8

D28049

RING

- backup, gland seal

1шт.

9

D36969

CUP

SEAL - rod

1шт.

10

D28498

RING

- backup, rod seal

1шт.

11

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

HHCS - 3/4" - 16 NF x 2-1/2"

1шт.

12

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special, bolt

1шт.

13

D28366

PISTON

- split, bolt end

1шт.

14

D28374

PACKAGE,SERVICE

PACKING - piston, chevron

1шт.

15

D28365

PISTON

- split, yoke end

1шт.

16

D45067

GLAND

- packing

1шт.

17

D32839

PISTON ROD

ROD - piston (1-1/2" dia.)

1шт.

1

G32148

CYLINDER

- lift, Power Angling Dozer (3" I.D. x 31" stroke), uses press in outer rod wiper

2шт.

1

G32123

CYLINDER

CYLNDER - lift, Power Angle-Tilt Dozer (3" I.D. x 31" stroke), uses press in outer rod wiper

2шт.

1

G32483

CYLINDER

- lift, Power Tilt Dozer (3" I.D. x 31" stroke), uses press in outer rod wiper

2шт.

2

D39755

BODY

TUBE - G32148 cylinder, uses press in outer rod wiper

1шт.

2

D48059

TUBE

- G32123 cylinder, uses press in outer rod wiper

1шт.

2

D39756

TUBE - G32483 cylinder, uses press in outer rod wiper

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tubes, uses press in outer rod wiper

2шт.

4

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", uses press in outer rod wiper

1шт.

5

D27706

WIPER SEAL

WIPER - rod, inner, uses press in outer

1шт.

5a

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - rod, outer, uses press in outer

1шт.

6

NOT REQUIRED

1шт.

7

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

SEAL - "O"ring, gland, uses press in outer rod wiper

1шт.

8

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup, gland seal, uses press in outer rod wiper

1шт.

9

D36969

CUP

SEAL - uses press in outer rod wiper

1шт.

10

NOT REQUIRED

1шт.

11

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

HHCS - 3/4" - 16 NF x 2-1/2", uses press in outer rod wiper

1шт.

12

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special, uses press in outer rod wiper

1шт.

13

D28366

PISTON

- split, bolt end, uses press in outer rod wiper

1шт.

14

D28374

PACKAGE,SERVICE

PACKING - piston, chevron, uses press in outer rod wiper

1шт.

15

D28365

PISTON

- split, yoke end, uses press in outer rod wiper

1шт.

16a

G32120

GLAND

- packing, uses press in outer rod wiper

1шт.

17

D32839

PISTON ROD

ROD - piston (1-1/2" dia.), uses press in outer wiper

1шт.
