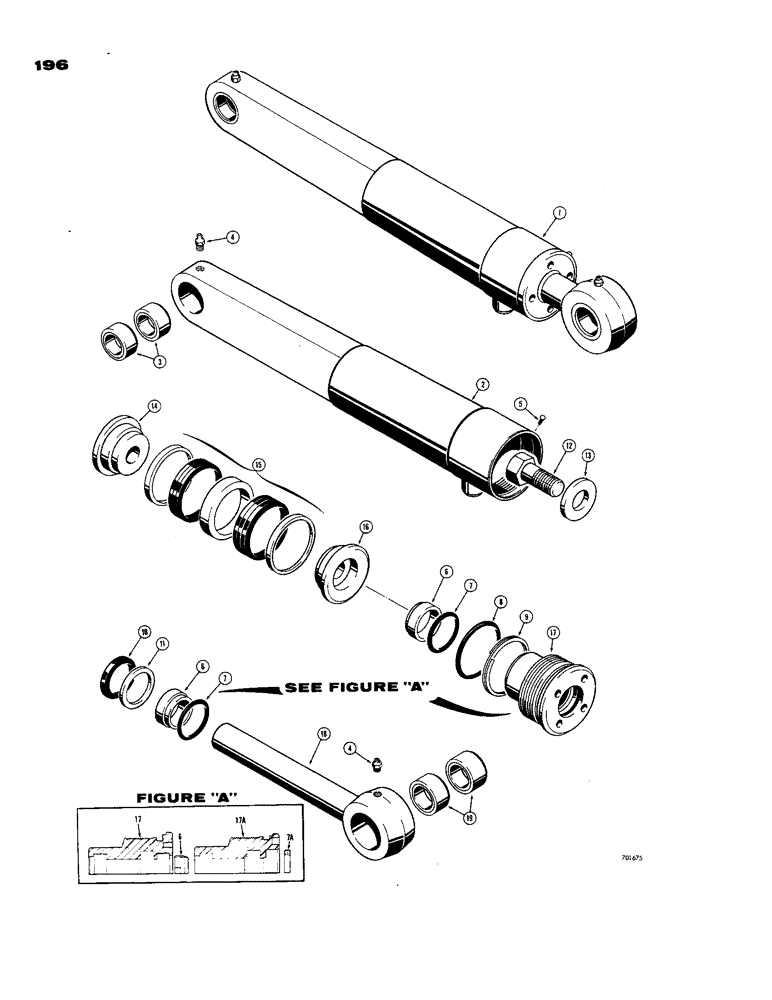

Запчасти Case 850 (196) - TILT CYLINDERS (POWER TILT DOZER), USES SPLIT SNAP IN OUTER ROD WIPER (07) - HYDRAULIC SYSTEM

1

D32907

X

CYLINDER - tilt (3-1/2" I.D. x 4-1/16" stroke)

1шт.

This cylinder uses D37356 and D42873 gland packing kits. For kit components, see Figure 225A.

1шт.

2

D32906

TUBE - cylinder

1шт.

3

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- tube

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

6

D27432

SHIM

- rod

2шт.

7

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - O-ring, wiper (If used)

2шт.

8

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - O-ring, gland

1шт.

9

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal

1шт.

10

D36970

CUP

SEAL - rod

1шт.

11

D28499

RING

- backup, rod seal

1шт.

12

D32861

BOLT

- special

1шт.

13

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- special, bolt

1шт.

14

D28367

PISTON

- split, bolt end

1шт.

15

D36963

PACKING

- piston

1шт.

16

D28369

PISTON

- split, eye end

1шт.

17

D45069

GLAND

- packing

1шт.

18

D32905

PISTON ROD

ROD - piston (1-3/4" dia.)

1шт.

19

D32902

BUSHING - rod

2шт.

1

G32171

CYLINDER

- tilt (3-1/2" I.D. x 4-1/16" stroke), uses press in outer rod wiper

1шт.

This cylinder uses G32291 cylinder packing kit. For kit components, see Figure 225A.

1шт.

2

D32906

TUBE - cylinder, uses press in outer rod wiper

1шт.

3

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- tube, uses press in outer rod wiper

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT), uses press in outer rod wiper

2шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", uses press in outer rod wiper

2шт.

6

D27432

SHIM

- rod, inner, uses press in outer

1шт.

Included in G32743 gland assembly.

1шт.

7

NOT REQUIRED

1шт.

7a

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - rod, outer, uses press in outer

1шт.

Included in G32743 gland assembly.

1шт.

8

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - O-ring, gland, uses press in outer rod wiper

1шт.

Included in G32743 gland assembly.

1шт.

9

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup, gland seal, uses press in outer rod wiper

1шт.

Included in G32743 gland assembly.

1шт.

10

D36970

CUP

SEAL - rod, uses press in outer wiper

1шт.

Included in G32743 gland assembly.

1шт.

11

NOT REQUIRED

1шт.

12

D32861

BOLT

- special, uses press in outer rod wiper

1шт.

13

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- special, uses press in outer rod wiper

1шт.

14

D28367

PISTON

- split, bolt end, uses press in outer rod wiper

1шт.

15

D36963

PACKING

- piston, chevron, uses press in outer rod wiper

1шт.

16

D28369

PISTON

- split, eye end, uses press in outer rod wiper

1шт.

17a

NSS

NOT SOLD SEPARAT

GLAND - packing (use G32743 gland assembly for service), uses press in outer rod wiper

1шт.

Included in G32743 gland assembly.

1шт.

18

D32905

PISTON ROD

ROD - piston (1-3/4" dia.), uses press in outer wiper

1шт.

19

D32902

BUSHING - uses press in outer rod wiper

2шт.
