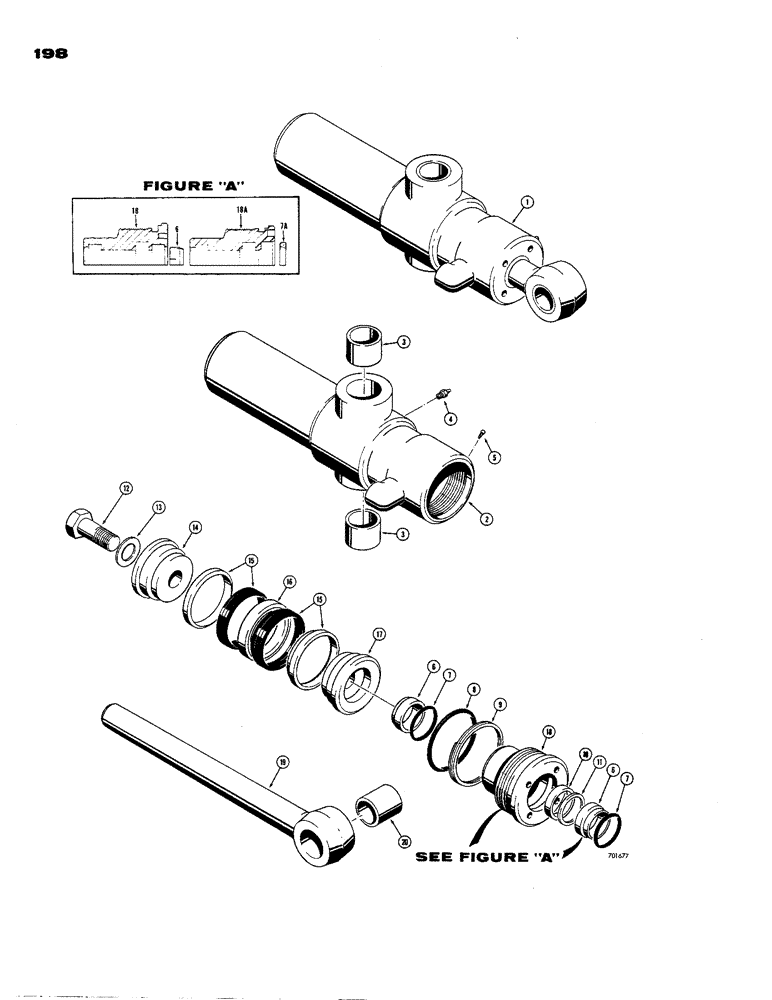

Запчасти Case 850 (198) - RIPPER CYLINDERS, USES SPLIT SNAP IN OUTER ROD WIPER (07) - HYDRAULIC SYSTEM

1

D39754

CYLINDER - hydraulic, ripper (4" I.D. x 11" stroke)

1шт.

2

D39753

TUBE

- cylinder

1шт.

3

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- tube

2шт.

4

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

6

D27432

SHIM

- rod

2шт.

7

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O"ring, wiper

2шт.

8

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O"ring, gland

1шт.

9

D27382

RING

- backup, gland seal

1шт.

10

D36970

CUP

SEAL - rod

1шт.

11

D28499

RING

- backup, rod seal

1шт.

12

D32861

BOLT

- special

1шт.

13

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- special, bolt

1шт.

14

D49162

PISTON

- split, bolt end

1шт.

15

D43112

PACKING

- piston, chevron

2шт.

16

D43113

PACKAGE

RING - bronze, piston packing

1шт.

17

D49159

PISTON - split, eye end

1шт.

18

D45072

GLAND

- packing

1шт.

19

D43678

ROD ASSY.

ROD - piston (1-3/4" dia.)

1шт.

20

D30741

BUSHING,38.33mm ID x 47.63mm OD x 50.8mm L

- rod

1шт.

1

G32580

HYDRAULIC CYLINDER

CYLINDER - hydraulic, ripper (4" I.D. x 11" stroke), uses press in outer rod wiper

1шт.

2

D39753

TUBE

- cylinder, uses press in outer rod wiper

1шт.

3

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- tube, uses press in outer rod wiper

2шт.

4

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Uses press in outer rod wiper 90º, 1/8" NPT x .84" lg

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", uses press in outer rod wiper

1шт.

6

D27432

SHIM

- rod, inner, uses press in outer

1шт.

7

NOT REQUIRED

1шт.

7a

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - rod, outer, uses press in outer

1шт.

8

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O"ring, gland, uses press in outer rod wiper

1шт.

9

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland seal, Uses press in outer rod wiper

1шт.

10

D36970

CUP

SEAL - uses press in outer rod wiper

1шт.

11

NOT REQUIRED

1шт.

12

D32861

BOLT

- special, uses press in outer rod wiper

1шт.

13

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- special, bolt, uses press in outer rod wiper

1шт.

14

D30744

PISTON

- split, bolt end, uses press in outer rod wiper

1шт.

15

D47204

PACKING,89.15mm ID x 100.86mm OD

- piston, chevron, uses press in outer rod wiper

2шт.

16

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - packing, piston, uses press in outer rod wiper

1шт.

17

D30743

PISTON

- split, eye end, uses press in outer rod wiper

1шт.

18a

G32116

X

GLAND packing, uses press in outer rod wiper

1шт.

19

D43678

ROD ASSY.

ROD - piston (1-3/4" dia.), uses press in outer wiper

1шт.

20

D30741

BUSHING,38.33mm ID x 47.63mm OD x 50.8mm L

- uses press in outer rod wiper

1шт.
