(205A) - D48101 DOZER CONTROL VALVE (4 SPOOL)

Запчасти Case 850 (205A) - D48101 DOZER CONTROL VALVE (4 SPOOL) (07) - HYDRAULIC SYSTEM

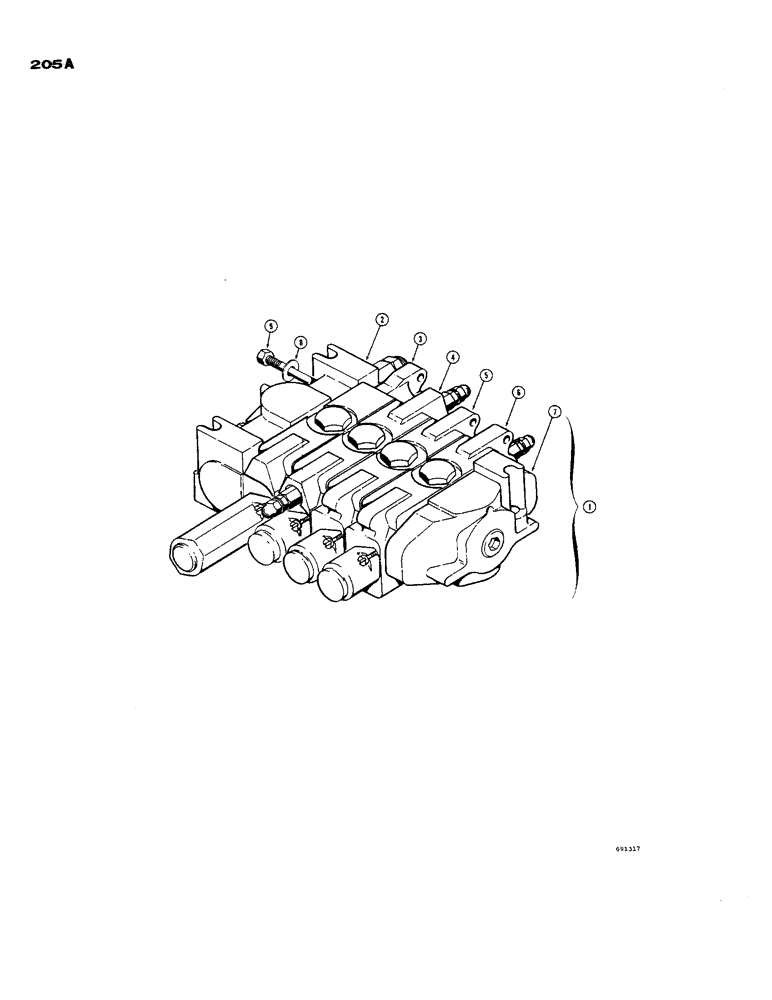

Схема запчастей Case 850 - (205A) - D48101 DOZER CONTROL VALVE (4 SPOOL) (07) - HYDRAULIC SYSTEM
1
6
3
5
9
7
2
8
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D48101

VALVE

- dozer control, 4 spool (Used on Power Angle-Tilt Dozer only)

1шт.

2

D41796

VALVE

INLET SECTION - valve (Parts list page 207)

1шт.

3

D38092

LIFT SECTION - valve (Parts list page 211) Service with D52443 section

1шт.

3

D52443

VALVE

LIFT SECTION - valve (Parts list page 211)

1шт.

4

D42432

NO LONGER SERVICED

TILT SECTION - valve (Parts list page 217)

1шт.

5

D32123

KNIFE SECTION

ANGLING SECTION - valve (Parts list page 211)

1шт.

6

D41533

VALVE

RIPPER SECTION - valve (Parts list page 209)

1шт.

7

D38360

VALVE

OUTLET SECTION - valve (Parts list page 207)

1шт.

8

D36476

STUD

ASSEMBLY - valve

4шт.

9

195-33

WASHER,1/2"

- plain () 1/2"

4шт.
