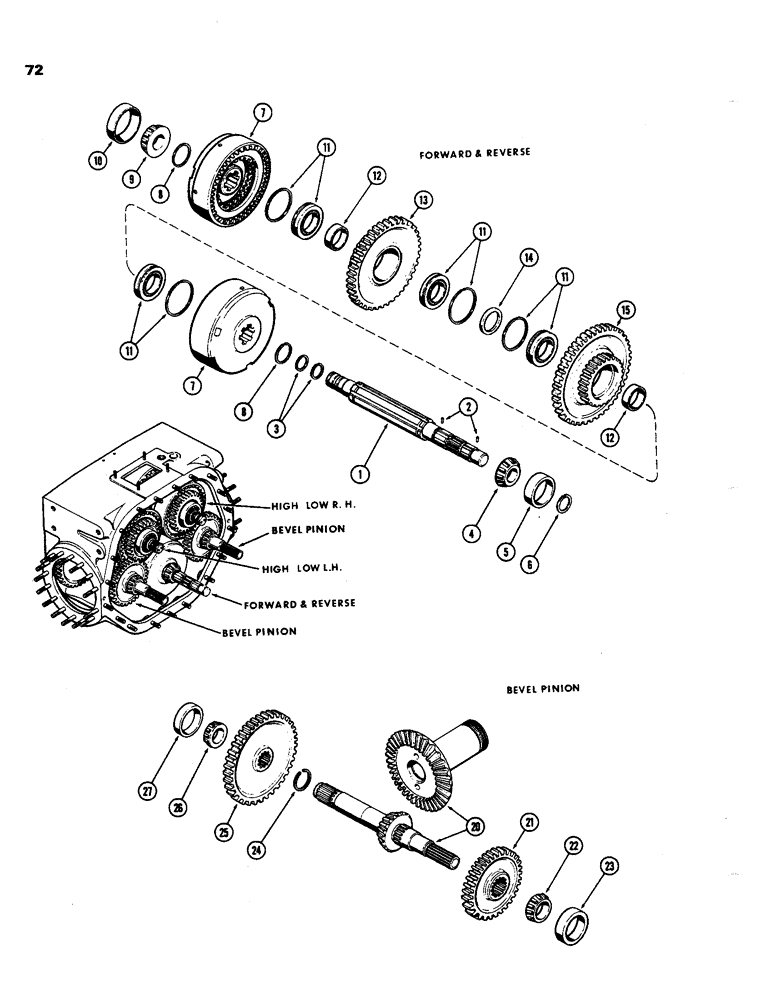

Запчасти Case 850 (072) - FORWARD & REVERSE SHAFTS (03) - TRANSMISSION

1

A50519

SHAFT

ASSY. - forward & reverse clutch

1шт.

2

138-68

LOCK PIN,5/32" x 7/16", Slotted

PIN, 5/32" x 7/16", Slotted

2шт.

3

A50389

SEAL

RING - seal, clutch shfat oil collector

2шт.

4

A30076

ROLLER BEARING,1.625" ID x 0.963"

CONE - clutch shaft, front (1-5/8" I.D.)

1шт.

5

G15202

CUP

- clutch shaft, front (3" O.D.)

1шт.

6

R20786

RING

- snap, forward & reverse clutch shaft

1шт.

7

A50411

CLUTCH

ASSY. - forward & reverse (w/aluminum piston) (See Figure 74)

2шт.

7

A50289

CLUTCH ASSY. - forward & reverse (w/cast iron piston. Order A50411) (See Figure 74)

2шт.

8

A50046

RING

- snap, forward & reverse clutch ret.

2шт.

9

A50048

ROLLER BEARING,40mm ID x 21.69mm W

CONE - clutch shaft, rear (1-37/64" I.D.)

1шт.

10

A27138

BEARING CUP,85 mm OD x 17.462 mm

CUP - clutch shaft, rear (3-11/32" O.D.)

1шт.

11

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

ASSY. - forward & reverse clutch

4шт.

12

A50293

SPACER

- bearing, forward & reverse clutch

2шт.

13

A50506

GEAR

- driver, forward clutch (29 & 51 teeth)

1шт.

14

A50034

SPACER

- bearing, forward & reverse clutch gear

1шт.

15

A50505

GEAR WHEEL

GEAR - driver, reverse clutch (29 & 56 teeth)

1шт.

20

A50338

GEAR, BEVEL

PINION & GEAR SET - matched, L.H. & R.H., bevel

2шт.

21

A50512

GEAR

- driven, high clutch, L.H. & R.H. (40 teeth), bevel pinion & shaft

2шт.

22

R17219

ROLLER BEARING

CONE - pinion shaft front brg., L.H. & R.H. (1-5/8" I.D.), bevel

2шт.

23

F62007

CUP

- pinion shaft front brg., L.H. & R.H. (3-1/8" O.D.), bevel

2шт.

24

A27085

RING

- snap, low clutch driven gear, bevel pinion & shaft

2шт.

25

A50575

GEAR

- driven, low clutch, L.H. & R.H. (51 teeth), bevel pinion & shaft

2шт.

26

A26719

ROLLER BEARING,38.1mm ID x 20.64mm W

CONE - high-low clutch rear bearing L.H. & R.H. (1-1/2" I.D.), bevel pinion & shaft

2шт.

27

A50264

BEARING CUP,72mm OD x 14.2mm W

CUP - high-low clutch rear bearing, L.H. & R.H. (2-27/32" O.D.), bevel pinion & shaft

2шт.
