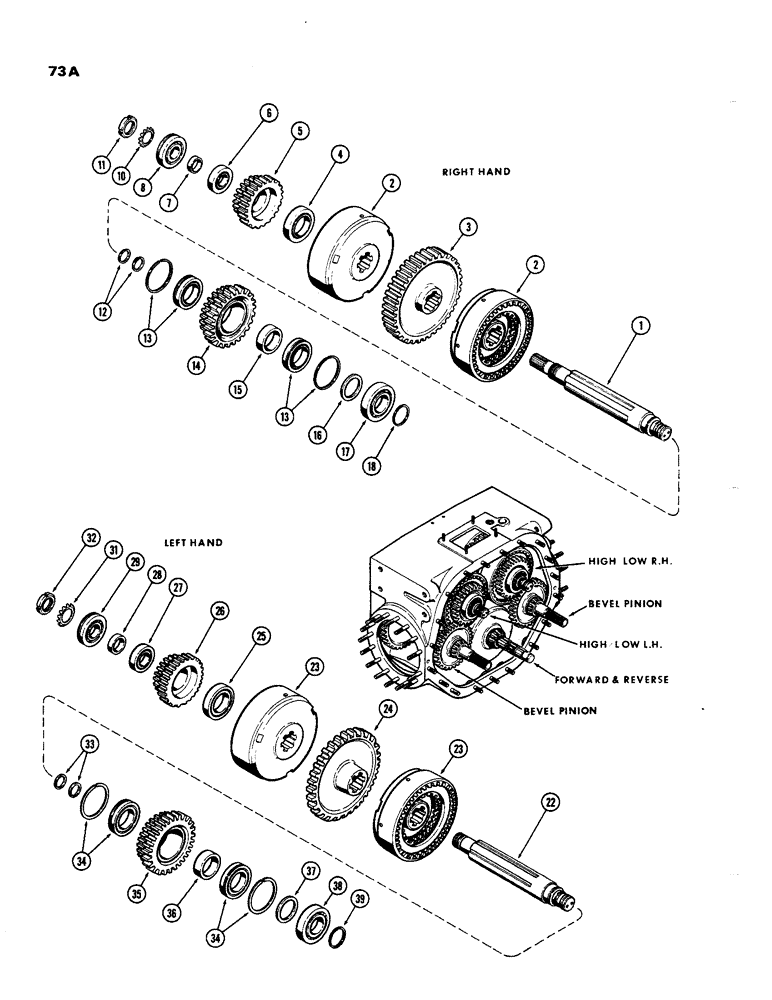

Запчасти Case 850 (073A) - HIGH & LOW CLUTCH SHAFTS, RIGHT HAND (03) - TRANSMISSION

1

A50520

SHAFT

ASSY. - high-low clutch, right hand

1шт.

2

A50412

CLUTCH

ASSY. - high-low (w/aluminum piston) (1st used trans. ser. no. 2643837) (See Figure 75A)

2шт.

2

A50287

X

CLUTCH ASSY. - high-low (w/cast iron piston) (Used prior to trans. ser. no. 2643837) (See Figure 75A) ( Order A50412)

2шт.

3

A50508

GEAR

- driver, R.H. (51 teeth) (1-1/2" tooth width)

1шт.

4

G10418

BEARING, BALL

BEARING - ball, low clutch gear, inner (1-61/64 x 3-9/64 x 5/8")

1шт.

5

A50574

SHAFT

GEAR - driver, low clutch (20 & 29 teeth)

1шт.

6

40025

BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"

- ball, low clutch driver gear, outer (1-3/8 x 1-5/8 x 7/16")

1шт.

7

A50036

RING

SPACER - bearing, low clutch driver gear (1-3/8 x 1-5/8 x 7/16")

1шт.

8

40031

BALL BEARING,34.99mm ID x 72mm OD x 17mm W

ASSY. - high-low clutch shaft, rear

1шт.

10

192-307

LOCK WASHER,Type W-07

WASHER - lock, rear bearing (special)

1шт.

11

131-1007

LOCK NUT,Bearing, 1.3780" Bore

NUT - lock, shaft brg.

1шт.

12

A50389

SEAL

RING - seal, high-low clutch shaft oil collector

2шт.

13

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

ASSY. - high clutch gear

2шт.

14

A50409

GEAR - high clutch (29 & 32 teeth)

1шт.

15

A50036

RING

SPACER - bearing, high clutch gear (1-25/64 x 1-5/8 x 7/16")

1шт.

16

A50034

SPACER

- bearing, high-low clutch shaft, front (1-31/32 x 2-3/8 x 1/8")

1шт.

17

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

BEARING - ball, high-low clutch shaft, front (1-49/64 x 3-11/32 x 3/4")

1шт.

18

A50033

SNAP RING,#177, 1.657", Ext

RING - snap, high-low clutch shaft front brg.

1шт.

22

A50521

SHAFT

ASSY. - high-low clutch, left hand

1шт.

23

A50412

CLUTCH

ASSY. - high-low (w/aluminum piston) (1st used trans. ser. no. 2643837) (See Figure 75A), left hand

2шт.

23

A50287

X

CLUTCH ASSY. - high-low (w/cast iron piston) (Used prior to trans. ser. no. 2643837) (See Figure 75A (Order A50412), left hand

2шт.

24

A50511

GEAR

- driver, L.H. (51 teeth) (11/16" tooth width), left hand

1шт.

25

G10418

BEARING, BALL

BEARING - ball, low clutch gear, inner (1-61/64 x 3-9/64 x 5/8"), left hand

1шт.

26

A50574

SHAFT

GEAR - driver, low clutch (20 & 29 teeth), left hand

1шт.

27

40025

BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"

- ball, low clutch driver gear, outer (1-3/8 x 1-5/8 x 7/16"), left hand

1шт.

28

A50036

RING

SPACER - bearing, low clutch driver gear (1-3/8 x 1-5/8 x 7/16"), left hand

1шт.

29

40031

BALL BEARING,34.99mm ID x 72mm OD x 17mm W

ASSY. - high-low clutch shaft, rear, left hand

1шт.

31

G10949

LOCK WASHER

WASHER - lock, rear bearing, left hand

1шт.

32

131-1007

LOCK NUT,Bearing, 1.3780" Bore

NUT - lock, shaft brg., left hand

1шт.

33

A50389

SEAL

RING - seal, high-low clutch shaft oil collector, left hand

2шт.

34

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

ASSY. - high clutch gear, left hand

2шт.

35

A50509

GEAR WHEEL

GEAR - high clutch (29 & 32 teeth), left hand

1шт.

36

A50036

RING

SPACER - bearing, high clutch gear (1-25/64 x 1-5/8 x 7/16"), left hand

1шт.

37

A50034

SPACER

- bearing, high--low clutch shaft, front (1-31/32 x 2-3/8 x 1/8"), left hand

1шт.

38

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

BEARING - ball, high-low clutch shaft, front (1-49/64 x 3-11/32 x 3/4"), left hand

1шт.

39

A50033

SNAP RING,#177, 1.657", Ext

RING - snap, high-low clutch shaft front brg., left hand

1шт.
