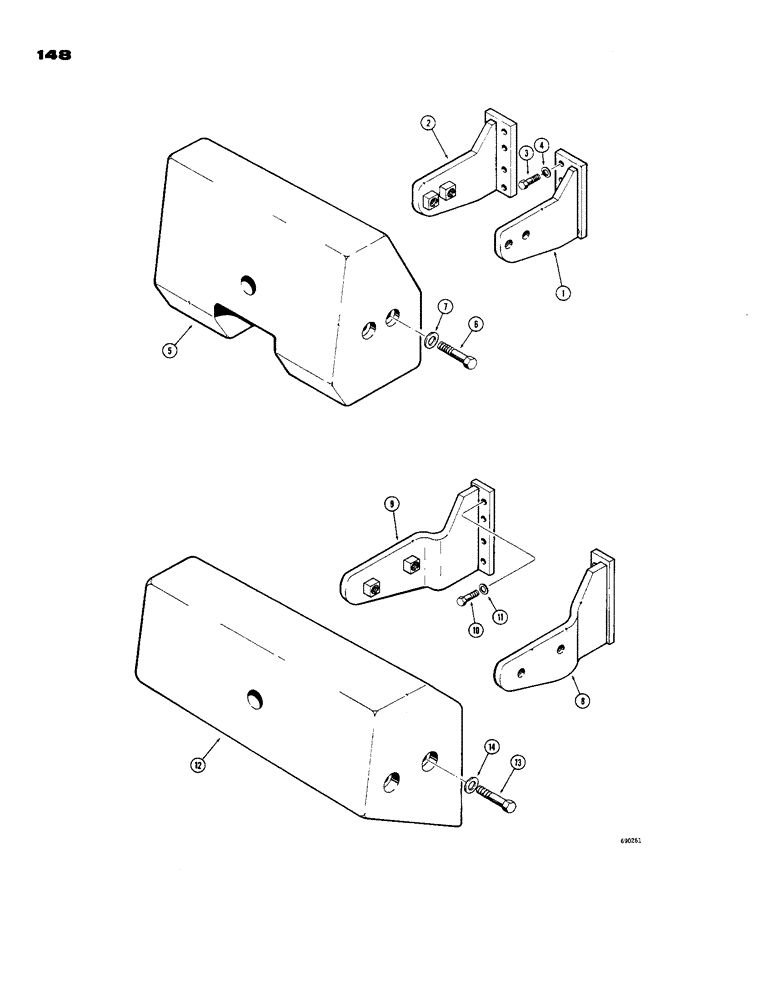

Запчасти Case 850 (148) - LOADER COUNTERWEIGHTS, COUNTERWEIGHT (1800 LBS.) (05) - UPPERSTRUCTURE CHASSIS

1

D40096

BRACKET - mounting, R.H.

1шт.

2

D40095

BRACKET - mounting, L.H.

1шт.

3

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

8шт.

4

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special (3/4")

8шт.

5

D40094

COUNTERWEIGHT - rear, 1800 lbs.

1шт.

6

13-16120

SCREW,Hex, 1" - 8 x 7 1/2", Gr 5

BOLT, Hex, 1"-8 x 7 1/2", G5

4шт.

7

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special

4шт.

8

D41072

BRACKET

- mounting, R.H., counterweight 2500lbs

1шт.

9

D41071

BRACKET

- mounting, L.H., counterweight 2500lbs

1шт.

10

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

Counterweight 2500 lbs Hex, 3/4"-10 x 1 3/4", G5

8шт.

11

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special (3/4"), counterweight 2500lbs

8шт.

12

D38567

COUNTERWEIGHT - rear, 2500 lbs.

1шт.

13

13-1696

BOLT,Hex, 1" - 8 x 6", Gr 5

Counterweight (2500 lbs.) Hex, 1"-8 x 6", G5

4шт.

14

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special, counterweight 2500lbs

4шт.
