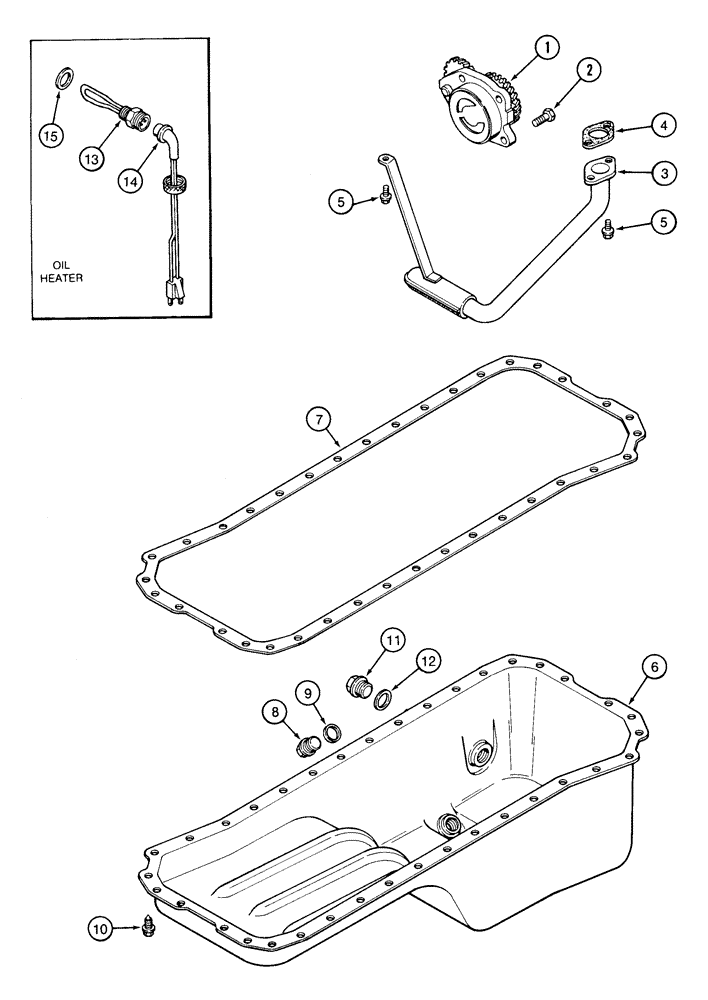

Запчасти Case 850E (2-14) - OIL PUMP AND OIL PAN, 6-590 ENGINE, 6T-590 ENGINE (02) - ENGINE

1

J926203

PUMP, ENGINE OIL

PUMP ASEMBLY - oil, engine, new, replaces J918212 and J924720 pump assembly

1шт.

JR926203

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP PUMP - oil, remanufactured, North America only, replaces JR918212 and JR924720 remanufactured pump

1шт.

JC926203

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly, replaces JC918212 and JC924720

1шт.

JR941742

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC926203

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT, HH, CL 8.8, M8 x 1.25 x 30

4шт.

3

J909373

TUBE

TUBE - with screen, oil suction

1шт.

4

J914383

GASKET

GASKET - mounting, oil suction tube

1шт.

Part of Gasket Oil Pan Kit P/N A77676

1шт.

5

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 16 mm

3шт.

6

J915703

PAN, ENGINE OIL

PAN, OIL PAN - oil, engine

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET - oil pan, order A77676 kit shown below

1шт.

Part of Gasket Oil Pan Kit P/N A77676

1шт.

8

J924147

PLUG,M18 x 1.5

PLUG - hex magnetic, special, drain plug, replaces J911638 plug

1шт.

9

J920773

SEALING WASHER

WASHER - sealing, drain plug, replaces J900216 washer

1шт.

Part of Gasket Oil Pan Kit P/N A77676

1шт.

10

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

SCREW - hex flange cap, special, 8 - 1.25 x 25 mm, Replaces J907860 screw

36шт.

11

J924148

PLUG,M22 x 1.5

PLUG - hex magnetic, special, heater hole, replaces J904386 plug

1шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - sealing, plug

1шт.

A77676

GASKET KIT

KIT - gasket, oil pan, Includes: Refs. 4, 7 and 9.

1шт.

A77490

KIT

KIT - heater, engine oil

1шт.

When A77490 kit is ordered, item 15, J902425 washer must be ordered also.

1шт.

13

NSS

NOT SOLD SEPARAT

HEATER - engine oil

1шт.

14

J905113

CABLE

CABLE - engine block heater, oil

1шт.

15

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - sealing, plug, engine oil heater

1шт.

When A77490 kit is ordered, item 15, J902425 washer must be ordered also.

1шт.
