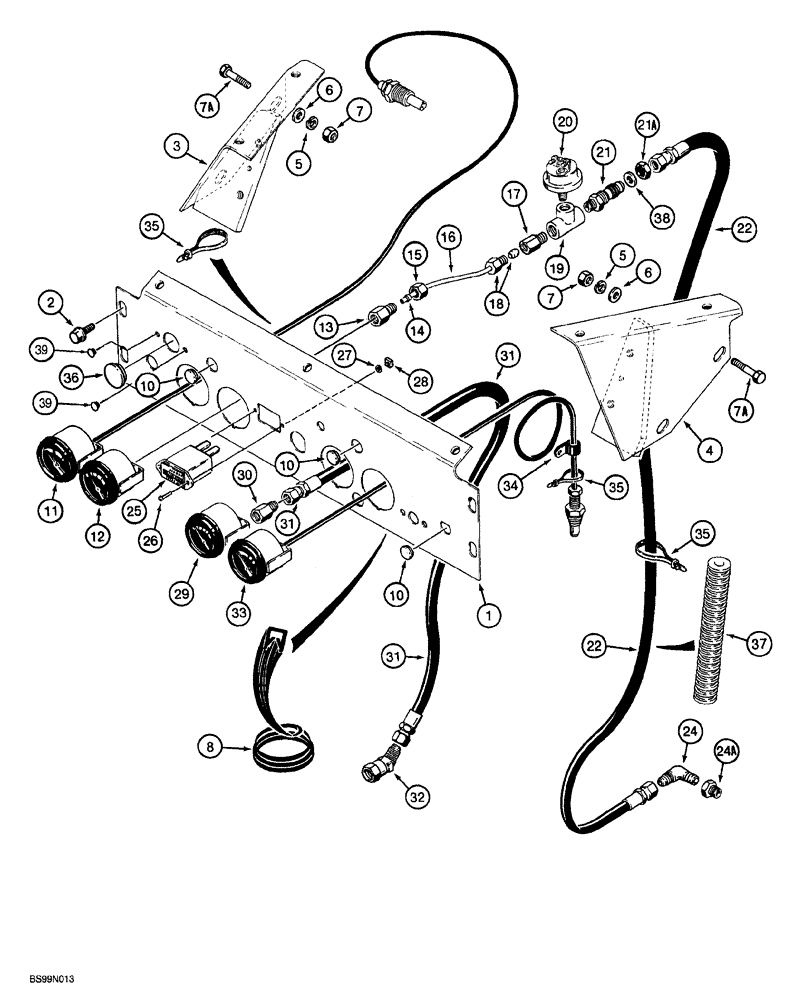

Запчасти Case 850G (4-06) - INSTRUMENT PANEL AND GAUGES (06) - ELECTRICAL SYSTEMS

1

R58269

PANEL, INSTRUMENTS

PANEL, INSTRUMENT DECAL, see Figure 9-80, used on models with brown trim

1шт.

1

184739A1

PANEL ASSY.

DECAL instrument, see Figure 9-80, used on models with gray trim

1шт.

2

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

flange, hex, 3/8 NC x 3/4 inch, grade 8

4шт.

3

R58274

BRACKET

instrument panel, left-hand

1шт.

4

R58273

BRACKET

instrument panel, right-hand

1шт.

5

492-11038

LOCK WASHER,3/8"

4шт.

6

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

4шт.

7

425-106

NUT,3/8"-16, Cl 5

4шт.

7a

33-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

carriage, 3/8 NC x 1-1/4 inch

4шт.

8

R58745

ADHESIVE STRIP

TRIM edge, 825 mm (32-1/2 inch) long

1шт.

10

353-407

PLUG,Dome, .687" hole, Nylon

button, 11/16 inch, used in lamp and lamp switch mounting holes on models without ROPS or cabs

3шт.

11

357042A1

GAUGE

engine temperature, Replaces: R52133

1шт.

12

357040A1

GAUGE

engine oil pressure, Replaces: R49132

1шт.

D35091

PIPE FITTING

ASSEMBLY adapter, straight, compression

1шт.

13

NSS

NOT SOLD SEPARAT

BODY adapter

1шт.

14

D37176

SLEEVE

compression

1шт.

15

D37362

TUBE NUT

compression

1шт.

16

A152199

PIPE

nylon, 508 mm (20 inch) long, cut from A138483 bulk tube, engine oil pressure, no longer available, order R49591

1шт.

16a

R49591

PLASTIC-RUBBER TUBE,3.18 mm OD x 530 mm L

nylon, engine oil pressure, 530 mm (20-7/8 inch) long

1шт.

For complete engine overhaul, order (1) each of valve grind kit, figure 2-52, cylinder block kit, oil pan kit, figure 2-34, front and rear crankshaft seal kit, figure 2-46 and required cylinder head gasket, figure 2-36.

1шт.

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

ADAPTER compression, 1/8 tube O.D. x 1/8 inch PT

1шт.

17

NSS

NOT SOLD SEPARAT

BODY adapter

1шт.

18

222-500

TUBE NUT,5/16" - 24 NPT

hex, includes sleeve, 1/8 tube O.D. x 5/16-24 inch

1шт.

19

217-1160

TEE,1/8"-27 Female

pipe, female, 1/8 inch

1шт.

20

D28796

SWITCH

engine oil pressure, see Figure 4-08 for electrical connections

1шт.

21

R58667

FITTING

ADAPTER bulkhead

1шт.

21a

425-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

22

D95117

HOSE

enginge oil pressure, 1448 mm (57 inch) long

1шт.

24

218-1066

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF, LG

ELBOW 90 degree, long, engine oil pressure, left-hand side of engine block, 7/16-20 flare x 1/8 inch PT

1шт.

24a

250838A2

HYD CONNECTOR

M10 x 1/8 inch PT, engine oil pressure, if used

1шт.

25

L107631

METER

HOUR engine

1шт.

26

169-169

SCREW,Sl Fil Hd, #5 - 40 x 1/2"

2шт.

27

492-11005

LOCK WASHER,#5

2шт.

28

224-10005

SQUARE NUT,Sq, #5-40

square, No. 5 NC

2шт.

L60539X

TUBE

bulk, nylon, 3 (1/8) ID x 4267 mm (168 inch) long

1шт.

29

357041A1

GAUGE

transmission oil pressure, Replaces: 138860A1

1шт.

30

218-461

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Female NPTF

straight, 7/16-20 flare x 1/8 inch female PT

1шт.

31

R58666

HOSE ASSY.

762 mm (30 inch) long

1шт.

32

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

1шт.

33

357043A1

GAUGE

torque converter temperature, Replaces: R54146

1шт.

34

NLS

NO LONGER SERVICED

P-type, uses torque converter mounting hardware

1шт.

35

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, torque converter temperature cable to equipment line suction hose and guage cables and hoses at firewall behind air cleaner.

2шт.

36

353-411

PLUG,Dome, 1.000" hole, Nylon

Used if cold start system is not required

1шт.

37

R12586

TAPE

SLEEVE hose, protection, between Ref. 24 and Ref. 35

1шт.

38

493-21052

LOCK WASHER,Int Tooth, 1/2"

internal tooth lock, 1/2 inch

1шт.

39

353-400

PLUG,Dome, .250" hole, Nylon

If used

2шт.
