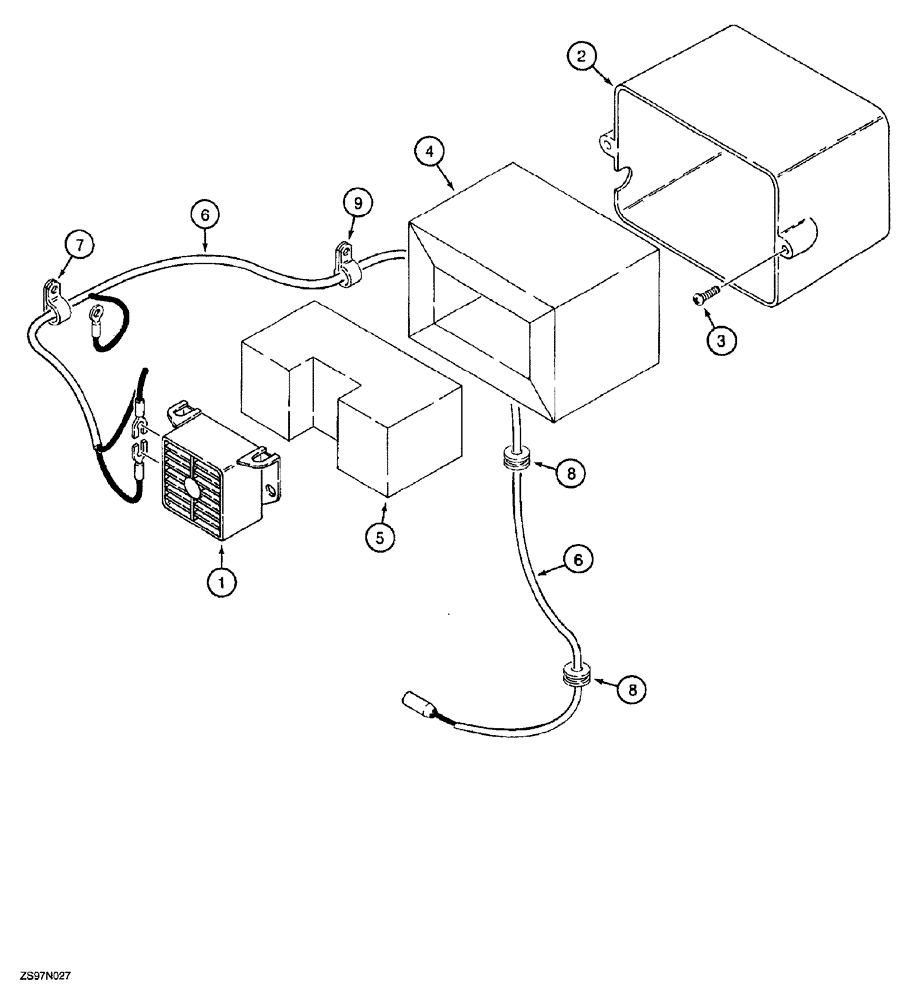

Запчасти Case 850G (4-28) - BACKUP ALARM (06) - ELECTRICAL SYSTEMS

1

L112318

ALARM

backup, mounted on rear access door

1шт.

2

R50647

BOX

COVER plastic, backup alarm

1шт.

3

261-55712

SELF-TAP SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

2шт.

4

R50648

FOAM

SEAL

1шт.

5

R51815

PAD

foam, 51 (2) x 64 (2-1/2) x 254 mm (10 inch) long

1шт.

For complete engine overhaul, order (1) each of valve grind kit, figure 2-52, cylinder block kit, oil pan kit, figure 2-34, front and rear crankshaft seal kit, figure 2-46 and required cylinder head gasket, figure 2-36.

1шт.

6

107227A1

ELECTRICAL WIRE

WIRE backup alarm, pressure switch to backup alarm, with ground

1шт.

7

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type, Backup alarm wire, Uses seat belt mounting hardware

1шт.

8

A23870

GROMMET

backup alarm wire, at seat mounting angle

2шт.

9

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type and ground wire, Uses rear door hinge mounting hardware

1шт.

R30870

PAD

bulk, 1372 (54) x 1829 (72) x 25 mm (1 inch) thick

1шт.
