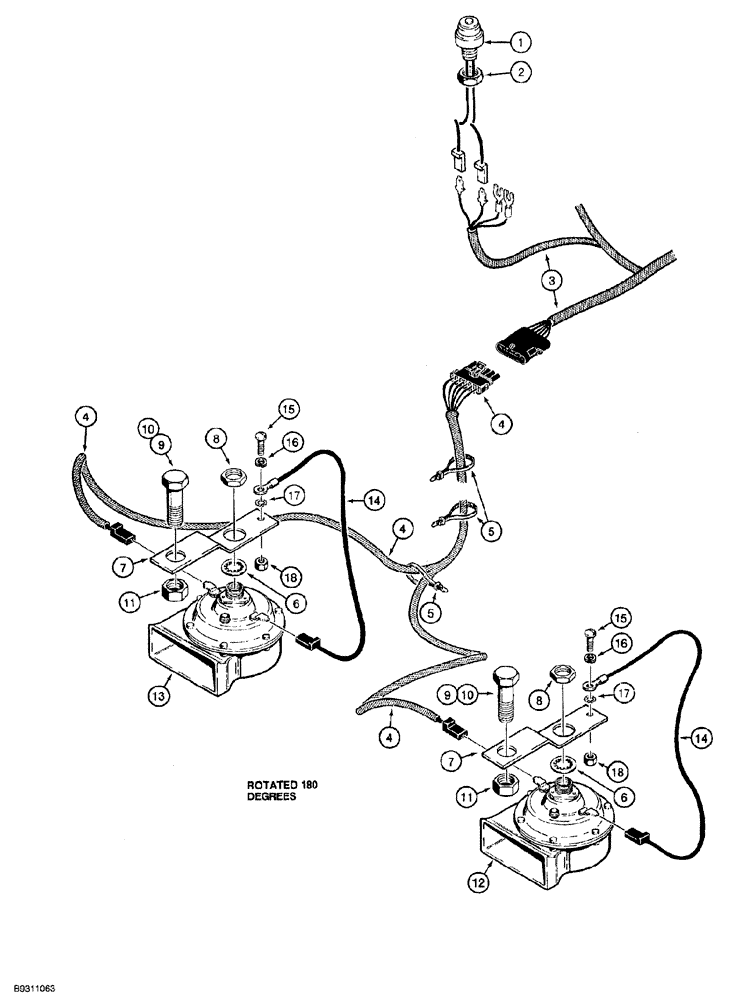

Запчасти Case 850G (4-30) - HORN (MODELS WITH TWO HORNS STAMPED DELCO REMY) (06) - ELECTRICAL SYSTEMS

1

R58727

SWITCH

push button, horn

1шт.

2

425-1510

JAM NUT,Jam, 5/8"-18, G5

Hex

1шт.

3

107226A1

HARNESS

rear wiring, see Figure 4-14 for continuation of harness

1шт.

4

126270A1

HARNESS

front wiring, used on models with horns stamped Delco Remy

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, retaining, 15 inch

3шт.

6

493-21078

LOCK WASHER,Int Tooth, 3/4"

internal tooth, 3/4 inch

2шт.

7

R39064

BRACKET, SUPPORTING

mounting, horn

2шт.

8

L30866

LOCK NUT

hex, special

2шт.

9

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

hex, 3/4 NC x 1-1/2 inch, used without ROPS canopy brush guards

2шт.

10

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Used with ROPS canopy brush guards

2шт.

11

425-1012

NUT,3/4"-10, G5

2шт.

12

R45461

HORN

F note, 24 volt, left-hand, includes an Ref. 8 nut and a bracket that is not used on this crawler, no longer avaliable order 253141A1

1шт.

13

D77650

HORN

A note, 24 volt, right-hand, includes an Ref. 8 nut and a bracket that is not used on this crawler, no longer avallable, order 253141A1

1шт.

14

R36131

ELECTRICAL WIRE

WIRE ground

2шт.

15

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

machine, pan head slotted, No. 10 NC x 1/2 inch

2шт.

16

492-11010

LOCK WASHER,#10

2шт.

17

493-11020

LOCK WASHER,5.08mm ID x 12.75mm OD x 1.02mm Thk

(3/16")

2шт.

18

225-14110

NUT,#10-24

2шт.
