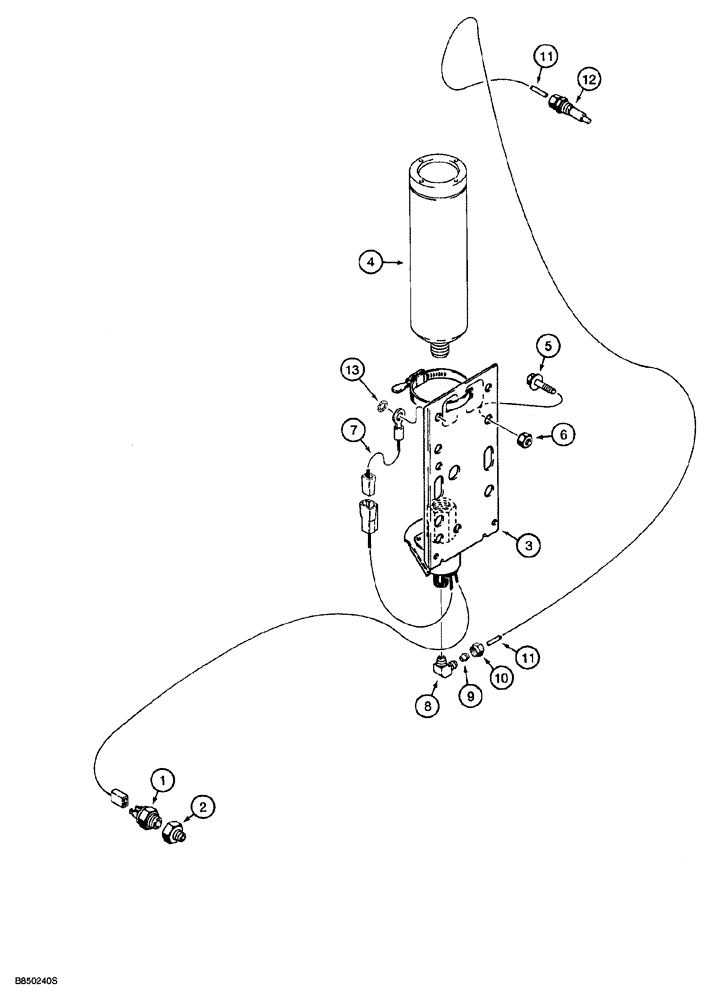

Запчасти Case 850G (4-32) - COLD START SYSTEM (06) - ELECTRICAL SYSTEMS

1

A172117

SWITCH

thermocouple, in engine cylinder head below intake manifold inlet tube

1шт.

2

217-45

REDUCER,3/4" - 14 NPTF x 1/2" - 18 Fem NPTF

1шт.

3

A172516

VALVE

solenoid, starting fluid injection, 3 cc injection volume, with bracket, component parts not serviced separately

1шт.

4

A171940

CYLINDER

starting fluid

1шт.

When replacing A171940 cylinder, order 3833593A from Ship Direct or obtain locally.

1шт.

5

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

hex flange, 3/8 NC x 3/4 inch, grade 8

2шт.

6

230-4216

LOCK NUT,3/8"-16, GA

2шт.

7

R51632

ELECTRICAL WIRE

WIRE ground, to valve mounting bracket

1шт.

8

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1/8 tube OD, Incl. Ref 9 & 10

1шт.

9

222-650

SLEEVE,1/8" Tube, Comp

Tapered

1шт.

10

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

hex, 1/8" tube OD

1шт.

11

R49591

PLASTIC-RUBBER TUBE,3.18 mm OD x 530 mm L

nylon, 530 mm (20-7/8 inch) long

1шт.

12

A172900

NOZZLE CAP

ASSEMBLY, atomizer, component parts not serviced separately

1шт.

13

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

Wire ground

1шт.

L60539X

TUBE

bulk, nylon, 3 (1/8) ID x 4267 mm (168 inch) long

1шт.
