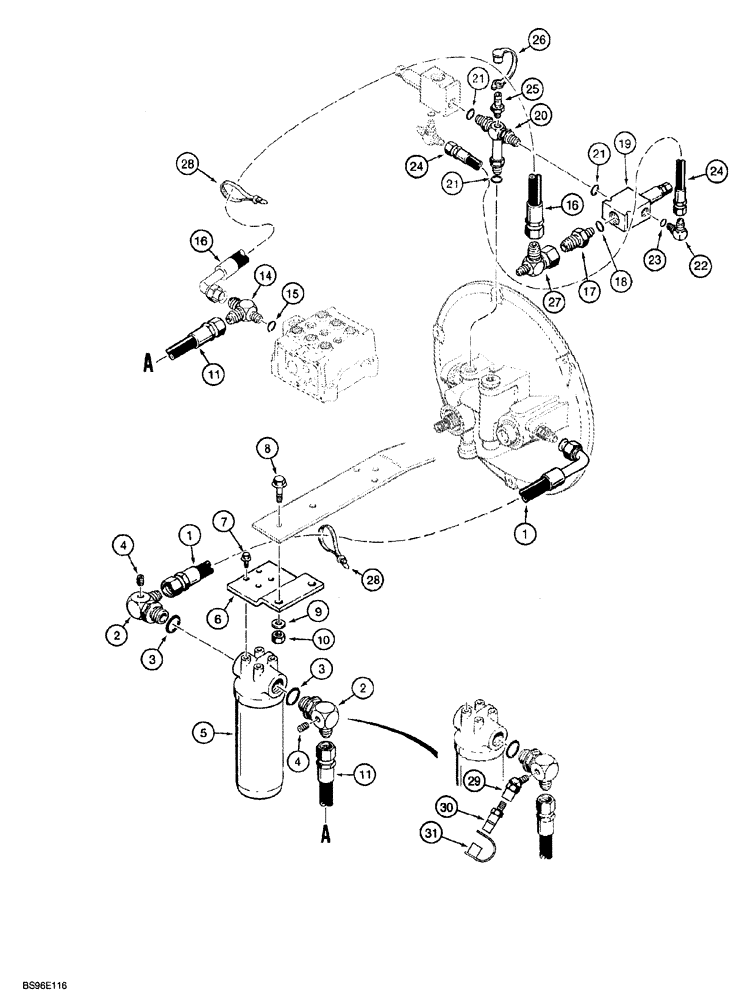

Запчасти Case 850G (6-26) - CRAWLER HYDRAULIC CIRCUIT - TORQUE CONVERTER TO TRANSMISSION (07) - HYDRAULIC SYSTEM

1

R56466

HOSE ASSY.

1481 mm (58-5/16 inch) long, torque, Serial Range: converter-filter

1шт.

2

R49557

FITTING

special, with check port, 90 degree, Includes: Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

4

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1-2шт.

5

R48993

FILTER

ASSEMBLY transmission oil, parts list figure 6-32

1шт.

6

R49362

SUPPORT

mounting

1шт.

7

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

hex flange, 3/8 NC x 3/4 inch, grade 8

4шт.

8

160-108

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

hex flange, 1/2 NC x 1-1/2 inch, grade 8

2шт.

9

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

2шт.

10

425-108

NUT,1/2" - 13, Gr 5

2шт.

11

D21788

HOSE

787 mm (31 inch) long, filter to transmission control valve

1шт.

14

218-5594

TEE,37 Degree, 1 1/16"-12, 7/8"-14 O-Ring Run, 1 1/16"-12

O-ring, 1-1/16-12 flare branch x flare x 7/8-14 inch adj., Includes: Ref. 15

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

16

132860A1

HOSE

990 mm (39 inch) long, transmission control valve to relief valve

1шт.

17

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

Straight, Includes Ref 18

1шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

19

R57582

VALVE

ASSEMBLY relief, component parts not serviced separately

1шт.

Part of Seal Repair Kit P/N S301087, order seal kit S301087 for service of external O-rings

1шт.

20

R57585

FITTING

special, at torque converter, see Figure 6-30 for pressure sensing valve, Includes: Ref. 21

1шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3шт.

22

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj. O-ring boss, Includes: Ref. 23

1шт.

24

L19294

HOSE,0.38" ID x 18.75", SAE 100R1

476 mm (18-3/4 inch) long, relief valve to pressure sensing valve, see Figure 6-30, Ref. 28 and 29 for attaching parts

1шт.

25

H434164

COUPLING

quick check, diagnostic

1шт.

26

H434163

DUST CAP

Coupler

1шт.

27

218-5488

TEE,37 Degree, 3/4"-16 x 1 1/16"-12, Fem Sw Run x 1 1/16"-12

1-1/16-12 flare branch x swivel x 3/4-16 inch flare, see Figure 7-04 for attaching hose

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

29

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

Street, If used

1шт.

30

H434164

COUPLING

quick check, diagnostic, if used

1шт.

31

H434163

DUST CAP

Coupler , if used

1шт.

S301087

SEAL KIT

KIT repair, contains three O-rings and two backup rings which are not serviced separately

1шт.

23

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
