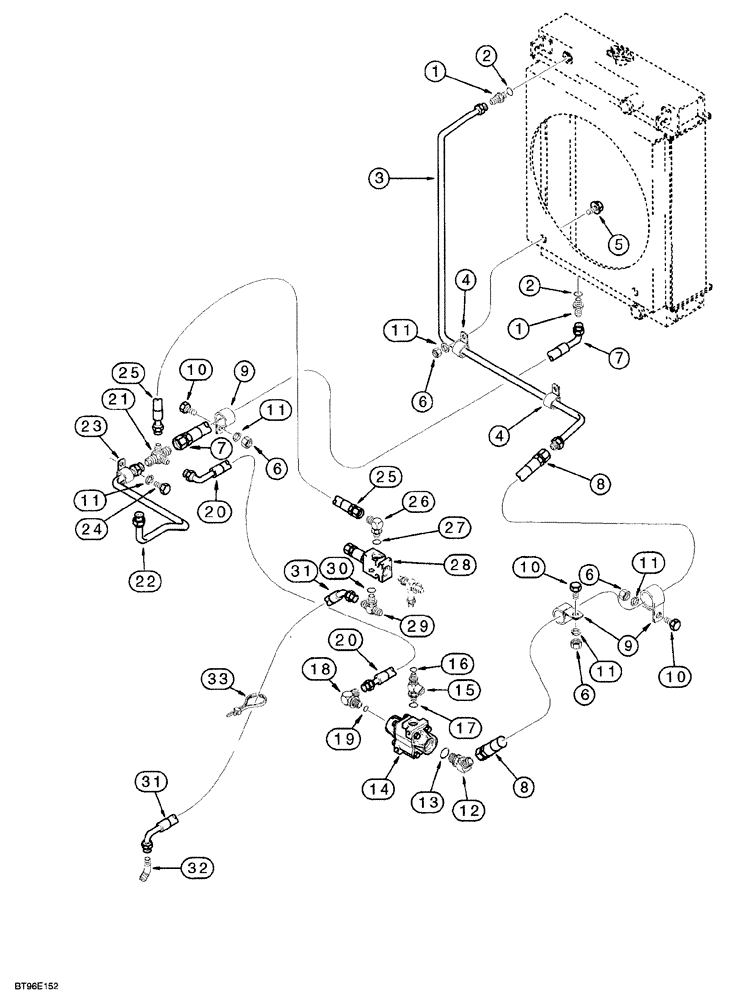

Запчасти Case 850G (6-30) - CRAWLER HYDRAULIC CIRCUIT - COOLING SYSTEM (07) - HYDRAULIC SYSTEM

1

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter, Straight, O-Ring boss, Incl. Ref. 2

2шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

3

R57812

TUBE,0.75" OD

to upper port of radiator

1шт.

4

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, Replaces 49858

2шт.

5

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

hex flange, 3/8 NC x 3/4 inch, grade 8

2шт.

6

425-106

NUT,3/8"-16, Cl 5

5шт.

7

R56466

HOSE ASSY.

1481 mm (58-5/16 inch) long, from lower port of radiator

1шт.

8

R57341

HOSE

1200 mm (47-1/4 inch) long, from bypass valve to radiator tube

1шт.

9

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

P-type

3шт.

10

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

11

492-11038

LOCK WASHER,3/8"

6шт.

12

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ELBOW 45 degree, 1-1/16-12 inch flare x adj. O-ring boss, Includes: Ref. 13

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

14

R51141

THERMOSTAT

ASSEMBLY valve, bypass, thermal, parts list figure 6-32

1шт.

15

R57336

TEE,1-1/16" - 12 ORB x 3/4" - 16 ORB x 1/2" NPT

special, at torque converter and bypass valve, Includes: Ref. 16 and 17

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

18

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

90 degree, 3/4-16 flare x 1-1/16-12 inch adj. O-ring boss, Includes: Ref. 19

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

20

R57486

HOSE

700 mm (27-9/16 inch) long, bypass, Serial Range: valve-tee

1шт.

21

R57479

FITTING

manifold, 4-way, special

1шт.

22

R58444

TUBE,19.05 mm OD x 380, 115 mm L

bypass valve to transmission

1шт.

23

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, Replaces 49858

1шт.

24

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

25

R57487

HOSE

560 mm (22-3/64 inch) long, tee to converter relief valve

1шт.

26

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes Ref. 27

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

28

R57597

VALVE

pressure sensing, torque converter relief, component parts not serviced separately, see Figure 6-26, Ref. 24 for attaching hose

1шт.

Part of Seal Repair Kit P/N S301087, order seal kit S301087 for service of external O-rings

1шт.

29

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16-18 inch, adj. O-ring branch x flare x flare, see Figure 6-26, Ref. 24 for attaching hose, Includes: Ref. 30

1шт.

31

R34863

HOSE

889 mm (35 inch) long, converter relief, Serial Range: valve-transmission

1шт.

32

218-533

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

1шт.

33

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

S301087

SEAL KIT

KIT repair, contains three O-rings and two backup rings which are not serviced separately

1шт.

30

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
