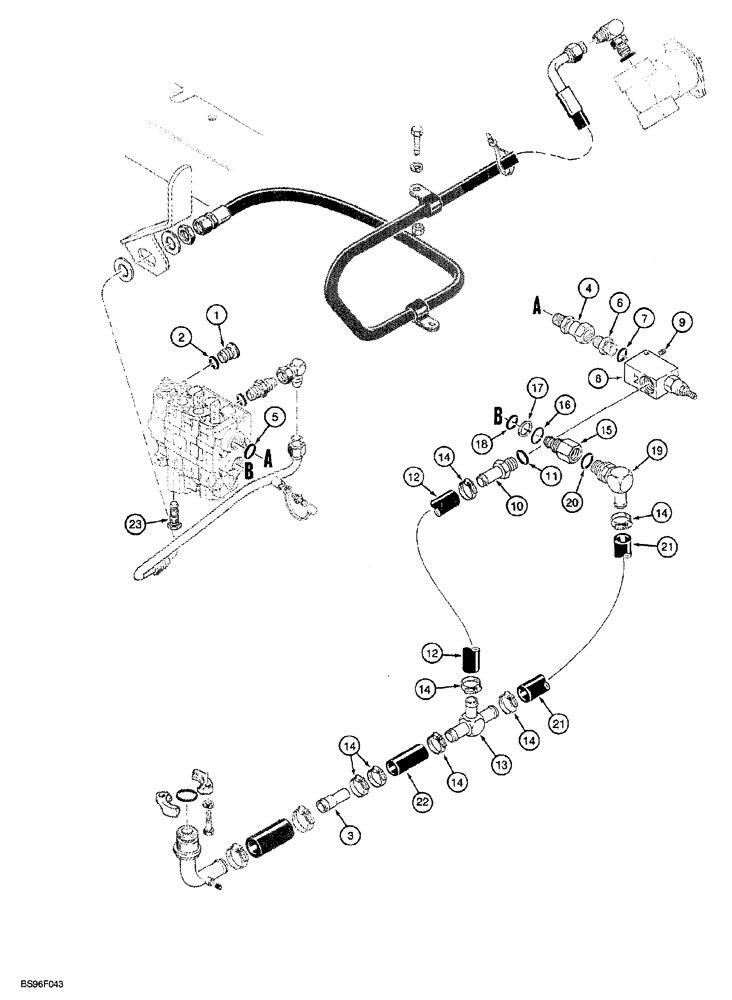

Запчасти Case 850G (8-09A) - EQUIPMENT HYDRAULIC CIRCUIT - PUMP TO CONTROL VALVE AND RESERVOIR (OPTIONAL FIELD INSTALLED) (07) - HYDRAULIC SYSTEM

1

9841223

PLUG,1-1/16" - 12 ORB

Plug relocated from upper port of valve end cover to upper port of valve outlet section, plug used in place of Ref. 16 adapter on Figure 8-08 on models with 235418A1 kit., Incl. Ref. 2

1шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

3

NSS

NOT SOLD SEPARAT

TUBE barb end, not serviced separately, tube is 90 mm (3-1/2 inches) cut from the end of Ref. 18 tube on Figure 8-08.

1шт.

235418A1

KIT

service, low pressure regeneration, includes instruction sheet, be sure to refer to instruction sheet 7-51682 when installng this kit; kit also includes 218-5108 elbow and 235067A1 tee which are not used in this application., Includes: Ref. 4 - 23

1шт.

4

234788A1

CONNECTOR, ELEC

CONNECTOR straight, swivel, special, replaces existing plug in upper port of valve end cover, Includes: Ref. 5

1шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

6

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter, Straight, O-Ring boss, Incl. Ref. 7

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

220939A1

VALVE

ASSEMBLY relief, regeneration, parts list figure 8-52

1шт.

9

86643151

PLUG,Hex Hd, 1/8"-27 NPTF

Test port

1шт.

10

217-390

FITTING,1" Hose Barb x 1-1/16" - 12 Male ORB

ADAPTER straight, 1 stem end x 1-1/16-12 inch adj. O-ring, at regeneration relief valve assembly port labeled as "2", Includes: Ref. 11

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

R58743

HOSE,25.40 mm ID x 510.00 mm, SAE 100R3

Cut to Required Lgth Measuring Distance Between Ref. 10 and Ref. 13, Approximate Distance is 483 mm (19 inch) Long.

1шт.

13

1979672C1

TEE

1 inch stem end

1шт.

14

214-3128

HOSE CLAMP,1" - 1-7/8", HD Worm

adj, 1 - 1-7/8 inch dia.

7шт.

15

R48066

ADAPTER

FITTING power beyond, replaces existing plug in lower port of valve end cover, Includes: Ref. 16 - 18

1шт.

16

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

Outer

1шт.

17

N13178

O-RING,0.69" ID x 0.055" Width

RING backup, small O-ring

1шт.

18

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

Inner

1шт.

19

217-366

FITTING,90 Degree Elbow, 1" Hose Barb x 1-1/16" - 12 Male ORB

Includes Ref. 20

1шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

21

R58743

HOSE,25.40 mm ID x 510.00 mm, SAE 100R3

Cut to Required Length Measuring Distance Between Ref. 13 and Ref. 19, Approximate Distance is 432 mm (17 inch) Long.

1шт.

22

D38435

HOSE,1" ID x 1 1/2" OD 3.5" L

89 mm (3-1/2 inch) long

1шт.

For complete engine overhaul, order (1) each of valve grind kit, figure 2-52, cylinder block kit, oil pan kit, figure 2-34, front and rear crankshaft seal kit, figure 2-46 and required cylinder head gasket, figure 2-36.

1шт.

23

122119A1

KIT

ASSEMBLY anti-cavitation, check, replaces existing load check valve in lower port of lift section, parts list figure 8-48

1шт.

S118383X

LARGE HOSE

HOSE,LARGE bulk, 25 (1) x 38 (1-1/2) x 4877 mm (192 inch) long

1шт.
