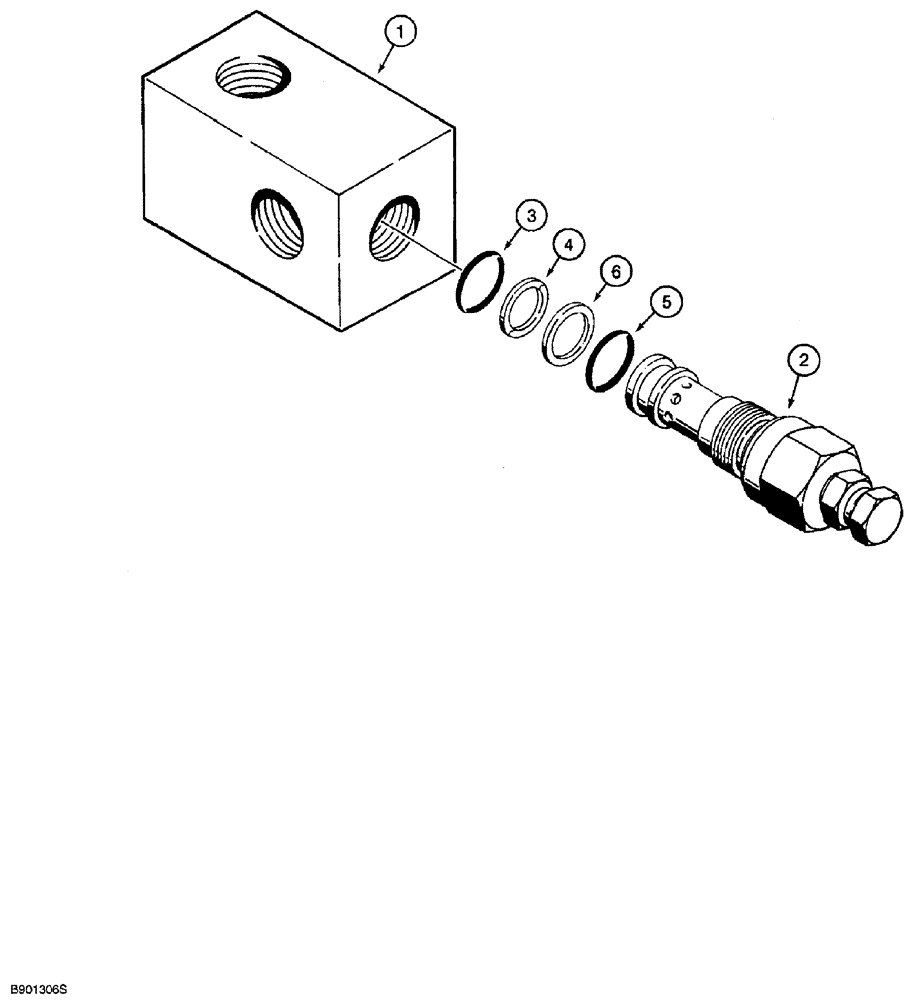

Запчасти Case 850G (8-52) - REGENERATION RELIEF VALVE ASSEMBLY (MODELS WITH OPTIONAL FIELD INSTALLED, LOW PRESSURE REGEN. KIT) (07) - HYDRAULIC SYSTEM

220939A1

VALVE

ASSEMBLY relief, regeneration, with housing, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING relief valve

1шт.

248534A1

VALVE

ASSEMBLY relief cartridge, without housing, internal components not serviced separately, for external seals see below, Includes: Ref. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

BODY relief valve

1шт.

3

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

4

N9961

BACK-UP RING,0.551" ID x 0.691" OD x 0.07"

special, backup

1шт.

5

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

1шт.

6

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

backup

1шт.
