(2-31A) - TURBOCHARGER ASSEMBLY (P.I.N. JJG0254005 TO JJG0254009, JJG0254015 AND AFTER)

Запчасти Case 850G (2-31A) - TURBOCHARGER ASSEMBLY (P.I.N. JJG0254005 TO JJG0254009, JJG0254015 AND AFTER) (01) - ENGINE

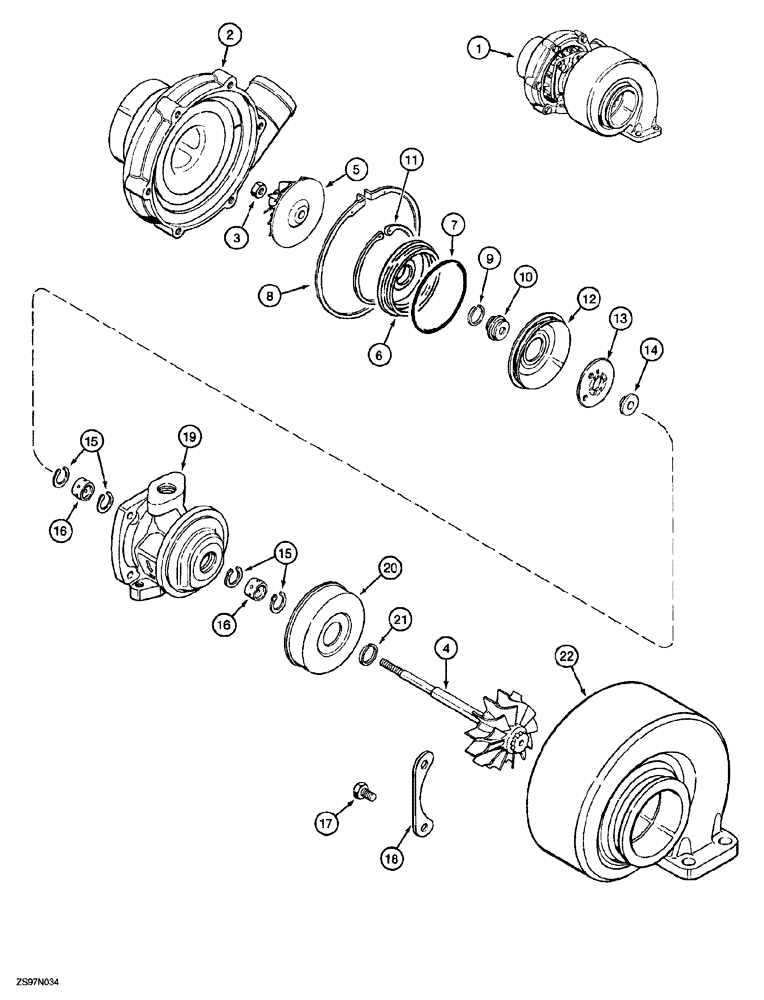

Схема запчастей Case 850G - (2-31A) - TURBOCHARGER ASSEMBLY (P.I.N. JJG0254005 TO JJG0254009, JJG0254015 AND AFTER) (01) - ENGINE
21
20
2
4
5
10
1
19
13
16
15
18
17
22
11
16
15
6
8
12
3
14
9
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J802770

TURBOCHARGER

KIT, with gaskets, includes new turbocharger assembly and one each of J709861 turbocharger mounting gasket and J519807 turbo oil drain tube gasket, not shown, Includes: Ref. 2 - 22

1шт.

1

JR802770

REMAN-TURBOCHARGER

850G For P.I.N. JJG0254005 to JJG0254009, P.I.N. JJG0254015 & Aft.

1шт.

1

JC537132

CORE-TURBOCHARGER

Return Number

1шт.

J575217

HOUSING

ASSEMBLY center, turbocharger, Includes: Ref. 2 - 22

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING compressor

1шт.

3

NSS

NOT SOLD SEPARAT

NUT hex lock

1шт.

Part of Overhaul Kit J575169.

1шт.

4

NSS

NOT SOLD SEPARAT

ASSEMBLY rotor, turbocharger

1шт.

5

NSS

NOT SOLD SEPARAT

IMPELLER turbo compressor

1шт.

6

NSS

NOT SOLD SEPARAT

PLATE oil seal

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL diffuser

1шт.

Part of Overhaul Kit J575169.

1шт.

8

J533163

SNAP RING

retaining

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL split ring, compressor

1шт.

Part of Overhaul Kit J575169.

1шт.

10

NSS

NOT SOLD SEPARAT

SLINGER oil

1шт.

11

NSS

NOT SOLD SEPARAT

RING snap, retaining

1шт.

Part of Overhaul Kit J575169.

1шт.

12

NSS

NOT SOLD SEPARAT

BAFFLE oil

1шт.

Part of Overhaul Kit J575169.

1шт.

13

NSS

NOT SOLD SEPARAT

BEARING thrust

1шт.

Part of Overhaul Kit J575169.

1шт.

14

NSS

NOT SOLD SEPARAT

COLLAR thrust

1шт.

15

NSS

NOT SOLD SEPARAT

RING snap, retaining

4шт.

Part of Overhaul Kit J575169.

1шт.

16

NSS

NOT SOLD SEPARAT

BEARING impeller shaft

2шт.

Part of Overhaul Kit J575169.

1шт.

17

J759917

SET SCREW

set, hex

4шт.

Part of Overhaul Kit J575169.

1шт.

18

J501188

PLATE

HOUSING clamping, turbine

2шт.

19

NSS

NOT SOLD SEPARAT

HOUSING turbine bearing

1шт.

20

NSS

NOT SOLD SEPARAT

SHIELD heat, turbine

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL ring, turbine

1шт.

22

NSS

NOT SOLD SEPARAT

HOUSING turbine

1шт.

J575169

REPAIR KIT

overhaul, turbocharger; Incl Ref 3, 7, 11, 12, 13, 15, 16, 17, 21

1шт.
