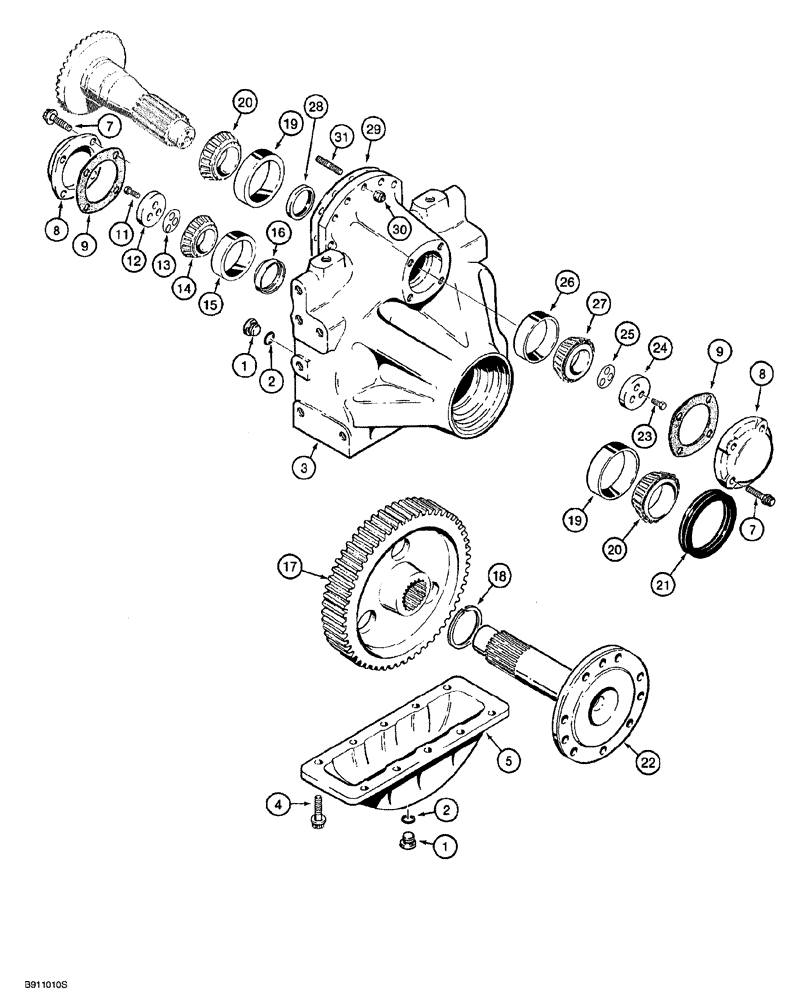

Запчасти Case 850G (6-16) - TRANSMISSION ASSEMBLY - FINAL DRIVE (1524 MM (60 INCH) GAUGE DOZER MODELS) (03) - TRANSMISSION

130731A1

TRANSMISSION

ASSEMBLY 1524 mm (60 inch) gauge dozer models, parts list figures 6-8 thru 6-16, 6-20 thru 6-25A and 7-6, Includes: Ref. 1 - 29

1шт.

G107164

TRANSMISSION

ASSEMBLY drive, final, all models except 1778 mm (70 inch) gauge LGP dozer models, Includes: Ref. 1 - 29

2шт.

1

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 2

3шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of Final Drive Seal Kit P/N 138973A1, seals and shims, for one side only.

1шт.

3

G101600

HOUSING

ASSEMBLY final drive

1шт.

4

180-610

12 PT SCREW,Flg, 1/2" - 13 x 1 1/2", Gr 8

flange, 12 point, chemical coating, 1/2 NC x 1-1/2 inch, grade 8

10шт.

5

1348875C1

COVER

PAN bottom, see Ref. 6 for, Serial Range: sealant-housing

1шт.

6

REF

INSTRUCTION

SEALANT gasket eliminator No. 515, pan to housing, not shown

1шт.

7

180-609

12 PT SCREW,Flg, 1/2" - 13 x 1", Gr 8

flange, 12 point, chemical coating, 1/2 NC x 1 inch, grade 8

8шт.

8

G105822

COVER ASSY

shaft

2шт.

9

G101598

GASKET

cover

2шт.

Part of Final Drive Seal Kit P/N 138973A1, seals and shims, for one side only.

1шт.

11

110-14

LOCK BOLT,Locking, 9/16"-18 x 1 1/4", G8, Full Th

3шт.

Part of Final Drive Seal Kit P/N 138973A1, seals and shims, for one side only.

1шт.

12

1997099C1

PLATE

bearing retaining, final drive shaft

1шт.

Part of Final Drive Seal Kit P/N 138973A1, seals and shims, for one side only.

1шт.

13

R21741

SHIM,.005" Thk

(0.127 mm)

1шт.

Part of Final Drive Seal Kit P/N 138973A1, seals and shims, for one side only.

1шт.

13

R21742

SHIM,.007" Thk

(0.178 mm)

1шт.

Part of Final Drive Seal Kit P/N 138973A1, seals and shims, for one side only.

1шт.

13

R21743

SHIM,.020" Thk

(0.508 mm)

1шт.

Part of Final Drive Seal Kit P/N 138973A1, seals and shims, for one side only.

1шт.

14

630203C91

TAPERED BEARING

tapered roller, final drive shaft, inner

1шт.

15

L35931

BEARING CUP

tapered roller bearing, inner

1шт.

16

G100325

SPACER

SPACER final drive shaft

1шт.

17

A50134

GEAR

final drive

1шт.

18

101-11325

SNAP RING,#325, 3.070, Ext

external retaining, No. 325, gear

1шт.

19

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

tapered roller

2шт.

20

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

tapered roller, final drive, outer, bevel gear, inner

2шт.

21

1981095C1

SEAL

final drive shaft, face

1шт.

Part of Final Drive Seal Kit P/N 138973A1, seals and shims, for one side only.

1шт.

22

G106477

SHAFT

final drive

1шт.

23

107-9820

LOCK BOLT,Locking, 1/2"-13 x 1 1/4", G8, Full Thd

hex, chemical locking, 1/2 NC x 1-1/4 inch, grade 8

3шт.

Part of Final Drive Seal Kit P/N 138973A1, seals and shims, for one side only.

1шт.

24

1997100C1

PLATE

bearing retaining, bevel gear

1шт.

Part of Final Drive Seal Kit P/N 138973A1, seals and shims, for one side only.

1шт.

25

G100328

SHIM,.005" Thk

(0.127 mm)

1шт.

Part of Final Drive Seal Kit P/N 138973A1, seals and shims, for one side only.

1шт.

25

G100329

SHIM,.007" Thk

(0.178 mm)

1шт.

Part of Final Drive Seal Kit P/N 138973A1, seals and shims, for one side only.

1шт.

25

G100330

SHIM,.020" Thk

(0.508 mm)

1шт.

Part of Final Drive Seal Kit P/N 138973A1, seals and shims, for one side only.

1шт.

26

895366C1

BEARING CUP

CUP tapered roller, outer

1шт.

27

1997114C1

TAPERED BEARING,55.001 mm ID x 39 mm

tapered roller, bevel gear, outer

1шт.

28

A32015

SEAL,82.55mm ID x 114.3mm OD x 11.91mm Thk

oil, housing, bevel gear

1шт.

Part of Final Drive Seal Kit P/N 138973A1, seals and shims, for one side only.

1шт.

29

A50199

SHIM,.003" Thk

(0.076 mm)

1шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

Part of Final Drive Seal Kit P/N 138973A1, seals and shims, for one side only.

1шт.

29

A50198

SHIM,.005" Thk

(0.127 mm)

1шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

Part of Final Drive Seal Kit P/N 138973A1, seals and shims, for one side only.

1шт.

29

1997091C1

SHIM

0.508 mm (0.02 inch) thick

1шт.

30

232-4118

NUT,1/2"-13, GC

28шт.

31

308713A1

STUD

final drive mounting, 1/2 NC x 2-5/16 inch, use with Loctite No. 271, Replaces: G100303

28шт.

B17500

LOCTITE

red, No. 271, 6 ml tube

1шт.

B17501

LOCTITE

SEALANT, Gasket Maker No. 515, 6 ml tube

1шт.

Part of Transmission Seal Kit, P/N 138971A1.

1шт.

Part of Final Drive Seal Kit P/N 138973A1, seals and shims, for one side only.

1шт.

B17555

LOCTITE

SEALANT, Gasket Eliminator No. 515, 50 ml tube

1шт.

B17556

LOCTITE

SEALANT, Gasket Eliminator No. 515, 300 ml tube

1шт.

138971A1

SEAL KIT

KIT transmission, Includes: P/N A50199 and A50198, plus an additional gasket not used in this application

1шт.

138973A1

SEAL KIT

KIT final drive, seals and shims, for one side only, Includes: Ref. No. 2, 9, 11, 12, 13, 21, 23, 24, 25, 28, 29, P/N B17501

1шт.
